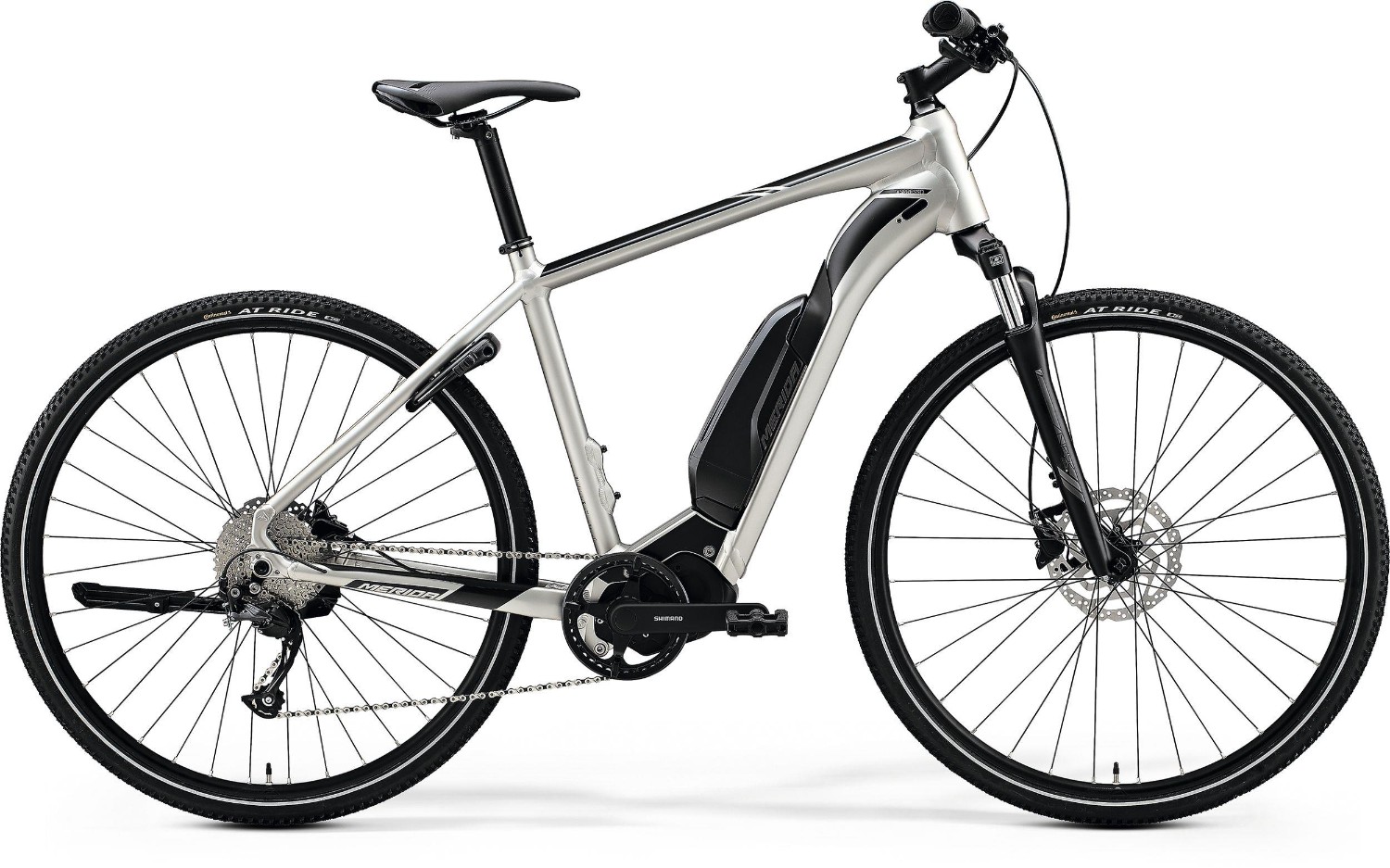

Merida eSpresso 200 SE 2020 - Electric Hybrid Bike
The Merida eSpresso 200 SE is a comfortable and practical e bike that is ideal for city cycling and countryside adventures. With a powerful Shimano crank drive motor and a comfortable cycling position the eSpresso is you ticket to easy pedalling adventure.
Key Features:
- High-quality alloy frame offers a comfortable riding position
- Suntour NEX suspension for takes the sting out of rough tracks
- Shimano 9-speed drivetrain for easy gear shifting
- Shimano hydraulic disc brakes for al-weather stopping power
- Sizes: Small, Medium, Large, X Large
- Colours: Silk Titanium/Matt Black
- The Merida eSpresso 200 SE is available with 0% APR finance
Drive Information:
- Motor: Shimano e5000 crank drive, 40Nm
- Battery: 418Wh
- User interface: without display
SMART ENTRY
Cables, housings and brake hoses are clamped under tension to prevent rattling. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.
PROLITE 66 TRIPLE BUTTED ALUMINIUM
Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we tune the aluminium tubes to give the best possible stiffness to weight ratio.
SMOOTH WELDING
Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance you'll be convinced it is carbon.
CHAINSTAY POST MOUNT
Post mounted calipers fit directly for a strong and light connection whilst positioning the caliper on the chainstay within the rear triangle gives it extra protection and better distribution of braking forces.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium |
| Fork | Suntour NEX-PM-DS; Coil; 63 mm travel |
| Headset | Merida 2346 |
| Stem | Merida Expert CC; 31.8 mm diameter; 17 degree rise |
| Bars | Merida Expert TK; 660 mm wide; 15 mm rise |
| Front Brake | Shimano MT-200; 2 piston hydraulic disc brakes with Shimano RT10; 160mm rotors |
| Rear Brake | Shimano MT-200; 2 piston hydraulic disc brakes with Shimano RT10; 160mm rotors |
| Rear Mech | Shimano Altus RDM2000 |
| Shifters | Shimano Altus rapidfire |
| Speed | 9 |
| Rims | Merida Comp TK; 20 mm inner width |
| Front Hub | Shimano TX505; 100 x 9mm axle; 32 spoke; Centerlock |
| Rear Hub | Shimano MT400; 142x12 mm axle; 36 spoke; Centerlock rear with attachedMerida Comp TR; including removeable lever, 6/4mm allen key |
| Spokes | Black stainless |
| Front Tyre | Continental AT Ride; 622-42; reflective sidewall stripe |
| Rear Tyre | Continental AT Ride; 622-42; reflective sidewall stripe |
| Seat Post | Merida Expert; 30.9 mm diameter; 15 mm layback |
| Saddle | Merida Expert TK |
| Chainset | Shimano CRE50; 38 teeth, with chain guard and Shimano FC-E5010 crank |
| Bottom Bracket | Shimano E5000; 40Nm |
| Chain | KMC e9S |
| Cassette | Shimano HG400; 12-36 teeth; 9 speed |
| Pedals | VPE-891 |
| Weight | 20.36kg |
| Battery Size (WH) | 418Wh |
| Motor | Shimano STEPS E5000 |
| User Interface | N/A |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Merida eSpresso 200 SE 2020 - Electric Hybrid Bike.
This product is no longer available.
