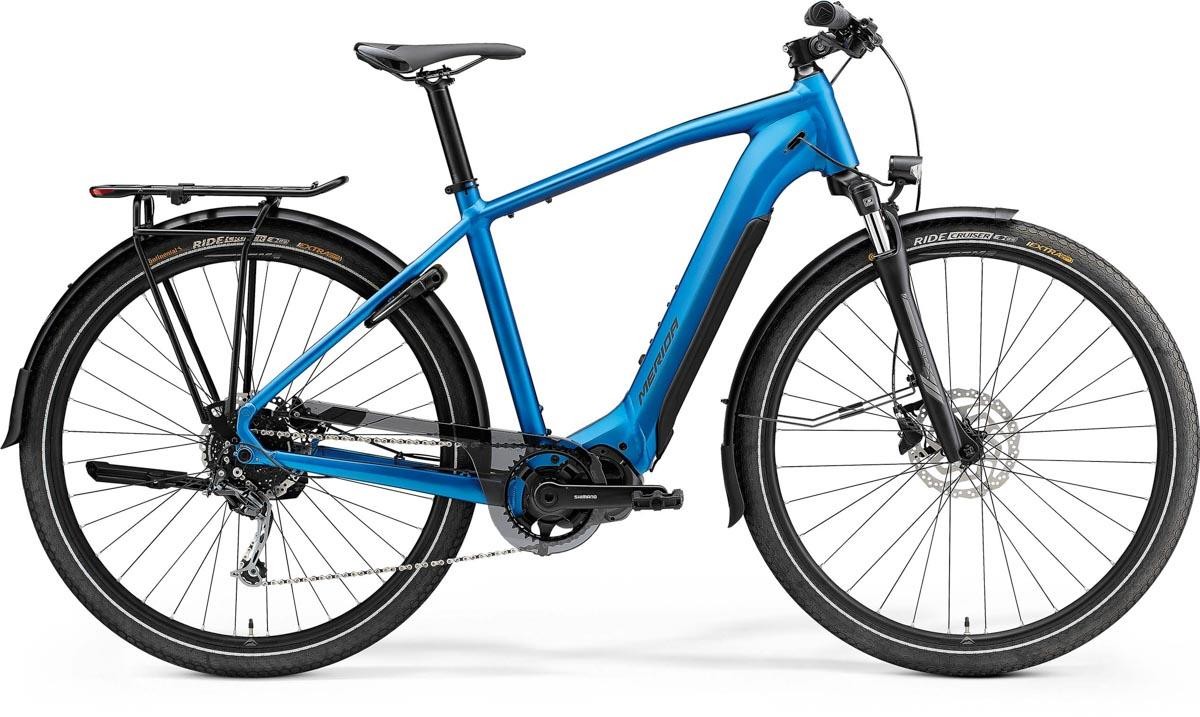

Merida eSpresso 400 EQ 2021 - Electric Hybrid Bike
Stylish hybrid eBike with neatly integrated battery. Fully equipped with mudguards, rack, kickstand, lock and lights the eSpresso 400 EQ uses a Shimano Steps 6100 series 60NM motor with powerful 504W battery
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Hydroformed Prolite 66 triple butted aluminium, internal battery |
| Fork | Suntour NEX E25; Coil; 63mm travel |
| Headset | Merida 2346 Neck |
| Stem | Merida Expert TK; aluminium; 31.8mm diameter; adjustable - Length : 90 mm-XS/S/M, 110 mm-L/XL |
| Bars | Merida Expert TK; Material: aluminium; 660mm wide; 15mm rise |
| Front Brake | Shimano MT-200; 2 piston hydraulic disc brake with Shimano RT10; 180mm rotor |
| Rear Brake | Shimano MT-200; 2 piston hydraulic disc brake with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano MT-200 |
| Rear Mech | Shimano Deore M594 |
| Shifters | Shimano Altus M3102 |
| Speed | 9 |
| Rims | Merida Comp TK; 20mm inner rim width; Material: aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Centerlock |
| Rear Hub | Shimano MT400; 142x12mm; 36 spokes; Centerlock; including removable lever with 4/6mm Allen key |
| Spokes | Black stainless |
| Front Tyre | Continental Ride Cruiser; 622-50; wire bead; reflective stripe |
| Rear Tyre | Continental Ride Cruiser; 622-50; wire bead; reflective stripe |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Saddle | Merida Expert TK; V-mount |
| Chainset | Shimano CRE61; 38 teeth chainwheel with Shimano FC-E6100; 170 mm length crank with chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e 9 Speed |
| Cassette | Shimano HG200; 11-36 teeth; 9 speed |
| Pedals | VP Components, VPE-893 |
| Battery Size (WH) | 504Wh |
| Motor | Shimano |
Merida Espresso 2021 Size Chart
|
Frame Size |
Height (cm) |
Height (feet) |
|
S |
162 - 169 |
5' 4" - 5' 7" |
|
M |
169 - 177 |
5' 7" - 5' 10" |
|
L |
177 - 185 |
5' 10" - 6' 1" |
What size frame do I need if I am between sizes? - read here
Merida Espresso 2021 Geometry Chart
|
Size |
S |
M |
L |
|
Tyre Size |
28" |
28" |
28" |
|
Frame Size (cm) |
47 |
51 |
55 |
|
Seat Tube (mm) |
470 |
510 |
550 |
|
Top Tube (mm) |
580 |
590 |
610 |
|
Chain Stay (mm) |
478 |
478 |
478 |
|
Head Tube Angle |
71° |
71° |
71.5° |
|
Seat Tube Angle |
74.5° |
74.5° |
74° |
|
Bottom Bracket Drop (mm) |
70 |
70 |
70 |
|
Head Tube Length (mm) |
140 |
155 |
175 |
|
Fork Length (mm) |
475 |
475 |
475 |
|
Reach (mm) |
403 |
409 |
417 |
|
Stack (mm) |
637 |
651.5 |
672.5 |
|
Wheelbase (mm) |
1118 |
1129 |
1138 |
|
Stand Over Height (mm) |
758 |
793 |
828 |
