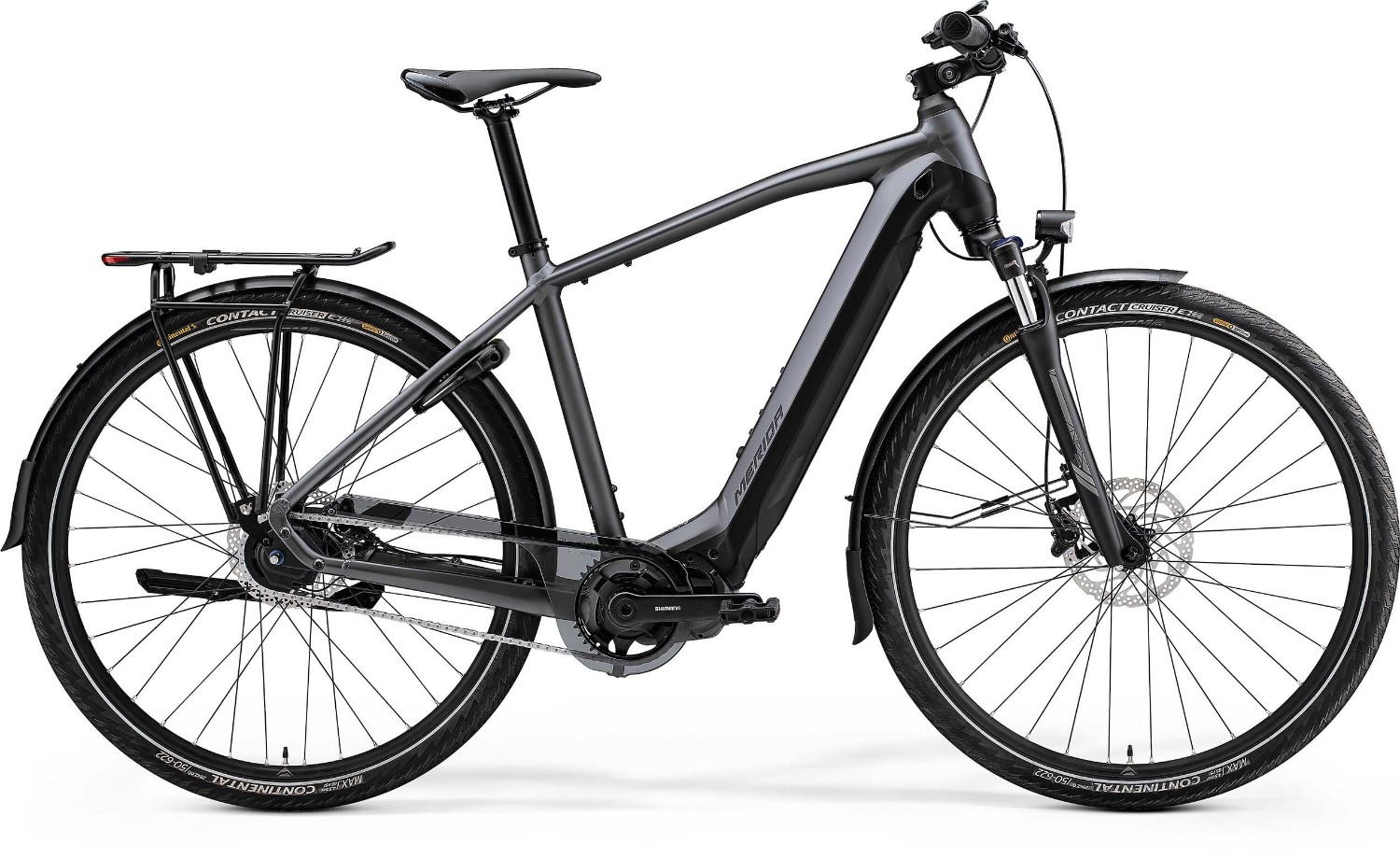

Merida eSpresso 700 EQ 2023 - Electric Hybrid Bike
The Merida eSpresso 700 EQ is the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop.
Key features:
- Lite II - Hydroformed 6066 triple butted aluminium frame
- Suntour NEX E25 forks with 63mm of travel to smooth out the road
- Shimano Nexus 5-speed hub gears offer maintenance free shifting
- Shimano brakes offer all-weather stopping power
- Continental Contact Cruiser tyres offer plenty of traction in most conditions
- Sizes: S (47cm) , M (51cm) , L (55cm)
- Colours: Anthracite/Black
- The Merida eSpresso 700 EQ is available with 0% APR finance
Drive Information:
- Motor: Shimano E8036; 630Wh internal battery, Shimano Steps E6100; 60Nm
- Battery: 630 Wh
- User Interface: Shimano SC-E6100
The range includes options a low step through city version for added ease.
Fast rolling 700c wheels are perfect for use in town, on gravel tracks or cycle paths. Wide 50 mm tyres add extra grip and comfort and their reflective sidewalls strips enhance rider safety in low light.
Choose between frames such as this with internally mounted batteries or a more affordable, semi-integrated design. All use a powerful Shimano STEPS drive unit with batteries mounted low to aid balance and emulate a natural riding feel. A tapered head tube delivers confidence inspiring handling.
All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.
Strong but controllable hydraulic disc brakes help you stop with ease.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
| Fork | Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c |
| Headset | Merida-8156 |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (XS/S/M), 110mm (L/XL) |
| Bars | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Front Brake | Shimano MT402-3A; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| Rear Brake | Shimano MT402-3A; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| Brake Lever | Shimano MT-402 |
| Rear Mech | Not Applicable - Internal hub gears |
| Shifters | Shimano SW-E6010-R |
| Speed | 5 |
| Rims | Merida Comp TK; 20mm inner rim width; aluminium |
| Front Hub | Shimano M4050; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano Nexus Inter-5E; 135x9mm; 36 spokes; Center lock |
| Spokes | Black stainless |
| Front Tyre | Continental Contact Cruiser; 622-50; wire bead; reflective stripe |
| Rear Tyre | Continental Contact Cruiser; 622-50; wire bead; reflective stripe |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Saddle | Merida Expert TK; V-mount |
| Chainset | Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC Z1eHX EPT |
| Cassette | Shimano CS-C7000 |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | 630 Wh |
| Motor | Shimano E8036; 630Wh internal battery, Shimano Steps E6100; 60Nm |
| User Interface | Shimano SC-E6100 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
