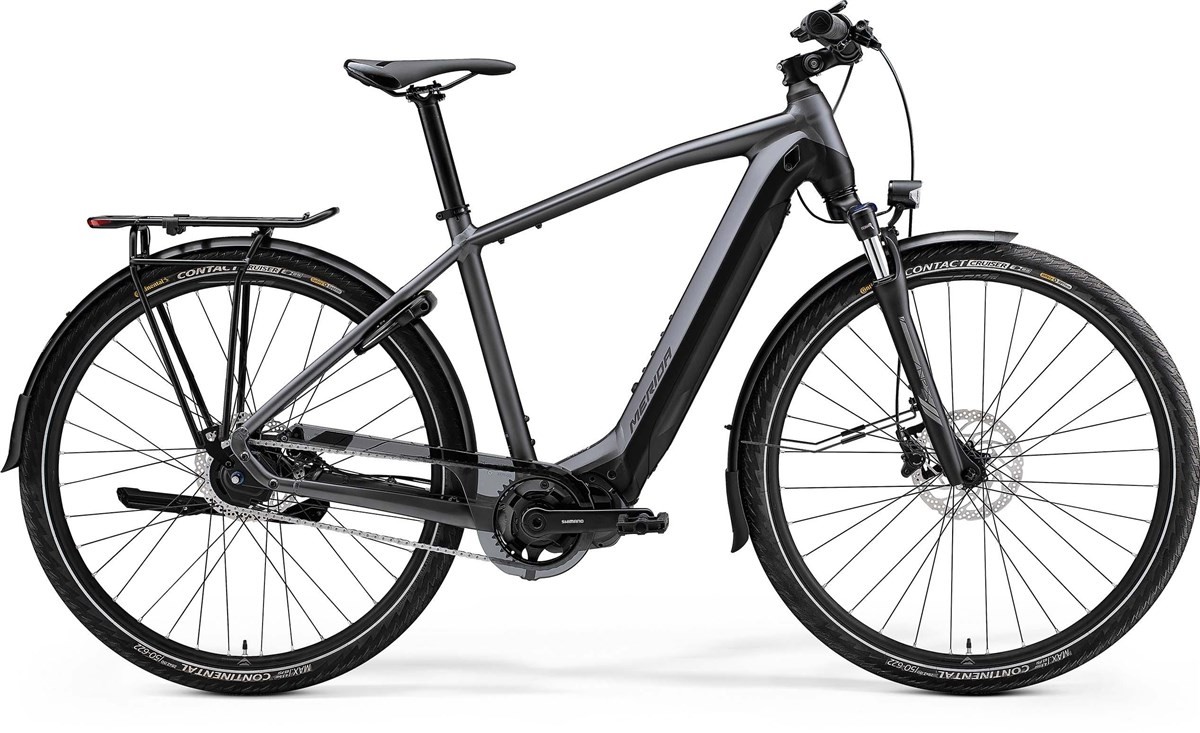

Merida eSpresso 700 EQ - Nearly New – L 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite II - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
| Fork | Suntour NEX E25; Coil; 63mm travel. Max. tyre size: 700 x 52c |
| Headset | Merida-8156 |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (XS/S/M), 110mm (L/XL) |
| Bars | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Front Brake | Shimano MT402-3A; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| Rear Brake | Shimano MT402-3A; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| Brake Lever | Shimano MT-402 |
| Rear Mech | Not Applicable - Internal hub gears |
| Shifters | Shimano SW-E6010-R |
| Speed | 5 |
| Rims | Merida Comp TK; 20mm inner rim width; aluminium |
| Front Hub | Shimano M4050; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano Nexus Inter-5E; 135x9mm; 36 spokes; Center lock |
| Spokes | Black stainless |
| Front Tyre | Continental Contact Cruiser; 622-50; wire bead; reflective stripe |
| Rear Tyre | Continental Contact Cruiser; 622-50; wire bead; reflective stripe |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Saddle | Merida Expert TK; V-mount |
| Chainset | Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170mm length crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC Z1eHX EPT |
| Cassette | Shimano CS-C7000 |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | 630 Wh |
| Motor | Shimano E8036; 630Wh internal battery, Shimano Steps E6100; 60Nm |
| User Interface | Shimano SC-E6100 |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
