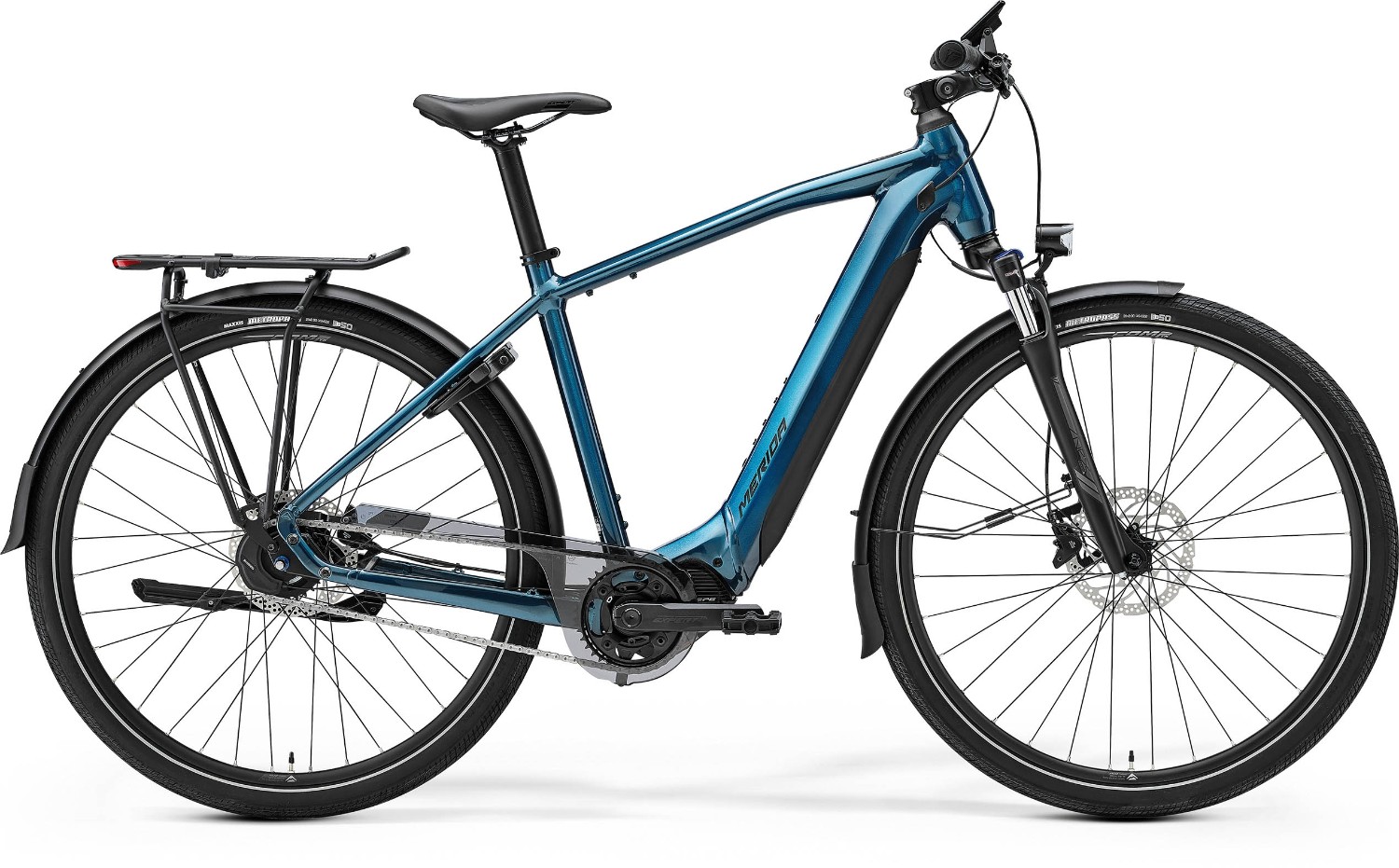

Merida eSpresso 775 EQ 2024 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Lite IV - Hydroformed 6066 triple butted aluminium, internal battery. 142 x 12mm axle standard. Internal cable routing. Max. tyre size 700 x 50c with mudguards |
| Fork | Suntour NEX E25; Coil; 63mm travel; Max. tyre size: 700 x 52C |
| Headset | Merida-8156 |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable; length: 90mm (XS,S,M), 110mm (L,XL) |
| Bars | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Front Brake | Shimano MT402-3A 2 piston hydraulic disc brake caliper with Shimano RT30 180mm rotor |
| Rear Brake | Shimano MT402-3A 2 piston hydraulic disc brake caliper with Shimano RTEM300 180mm rotor |
| Brake Lever | Shimano MT402 |
| Rear Mech | Not Applicable - Internal hub gears |
| Shifters | Shimano SW-EN600-R |
| Speed | 5 |
| Rims | Merida Comp TK; 20mm inner rim width; aluminium |
| Front Hub | Shimano QC400; 100 x 9mm; 32 spokes; Centerlock |
| Rear Hub | Shimano Nexus Inter-5E; 135 x 9mm; 36 spokes; Centerlock |
| Spokes | Black stainless |
| Front Tyre | Continental Contact Cruiser; 622-50; wire bead with reflective strip |
| Rear Tyre | Continental Contact Cruiser; 622-50; wire bead with reflective strip |
| Seat Post | Merida Expert CC; aluminium; 34.9mm diameter; in-line |
| Saddle | Merida Expert TK II; V-mount |
| Chainset | Samox P2 03; 38 tooth chainset with Merida Expert TK; 165mm length crank all sizes with Sunnywheel SW-CG-173A chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC Z1eHX EPT |
| Cassette | Shimano CS-C7000; 27 teeth; 1 speed |
| Pedals | VP Components - VPE-891 |
| Battery Size (WH) | 750Wh |
| Motor | Simplo Trend Power Internal Battery Gen 2; 750Wh, Shimano Steps EP6; 85Nm |
| User Interface | Shimano SC-EN610 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
