Merida eSpresso CC 400 EQ - Nearly New – S 2023 - Electric Hybrid Bike

Name: Merida eSpresso CC 400 EQ - Nearly New – S 2023 - Electric Hybrid Bike
Brand: Merida

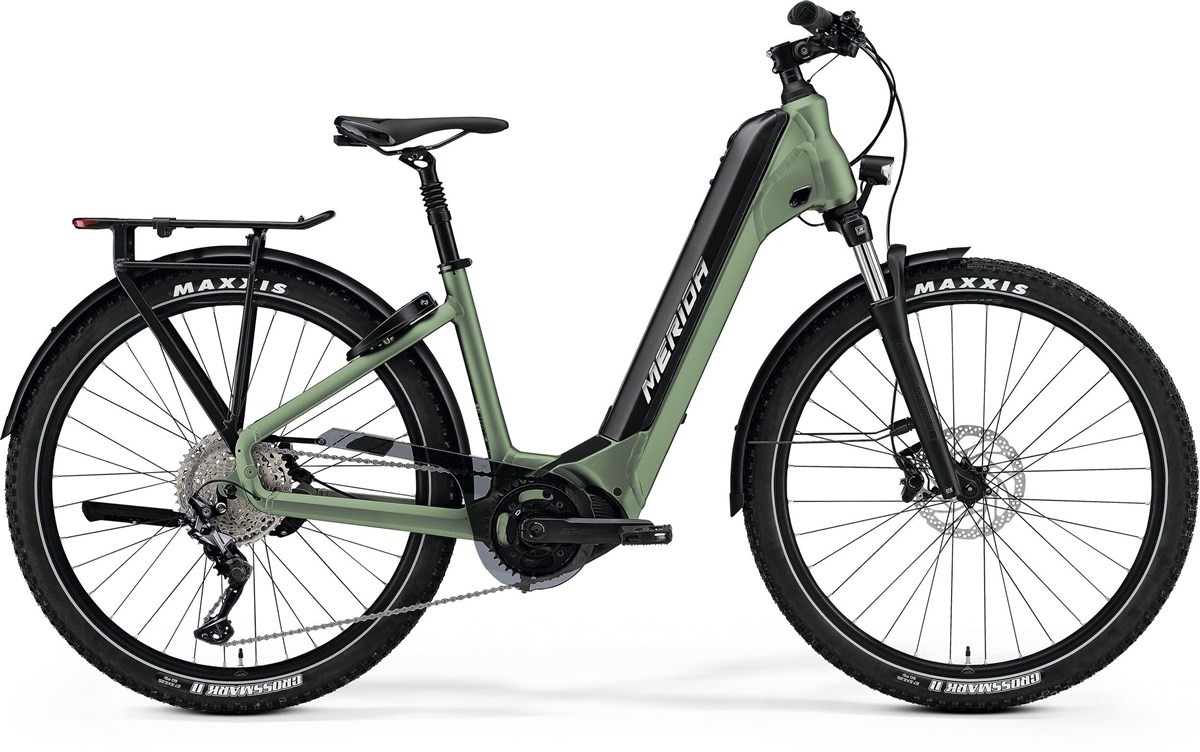

Merida eSpresso CC 400 EQ - Nearly New – S 2023 - Electric Hybrid Bike product image

This eSpresso CC 400 EQ electric bike is rated as an Excellent Grade which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the downtube and near drive side fork.

To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.

The eSpresso CC is the rugged sibling of the regular eSpresso, with wider and grippier high-volume tyres on 650b wheels. Whilst it's happy in the urban jungle thanks to standard-fit mudguards, lights, lock, rack and kickstand, it's also capable of taking trips along forest trails and gravel tracks for fun. All eSpresso CC models are equipped with a refined, powerful Shimano STEPS pedal-assist motor. Smooth, comfortable progress is assured by suspension forks and powerful hydraulic disc brakes allowing effortless, controlled braking. All electric bikes have an approved rider and equipment weight of up to 150 kg, meaning there's plenty of capacity for you and your luggage.

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Hydroformed 6066 triple butted aluminium. Tapered head tube and bolt through axles for stiffness and confidence inspiring riding. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25"
Fork	Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size: 27.5" x 2.4"
Headset	Merida-8252
Stem	Merida Expert CT; aluminium; 31.8mm diameter; adjustable. Stem length: 90mm (all sizes)
Bars	Merida Expert; aluminium; 660mm wide; 15mm rise
Front Brake	Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor
Rear Brake	Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor
Brake Lever	Shimano MT-200
Rear Mech	Shimano Deore RDM5120; SGS
Shifters	Shimano Deore M4100
Speed	10
Rims	Merida Comp TK; 20mm inner rim width; aluminium
Front Hub	Shimano TX505; 100x9mm; 32 spokes; Center lock
Rear Hub	Shimano TX505; 135x9mm; 36 spokes; Center lock
Spokes	Black stainless
Front Tyre	Maxxis Crossmark II; 27.5" x 2.25"; wire bead; reflective line
Rear Tyre	Maxxis Crossmark II; 27.5" x 2.25"; wire bead; reflective line
Seat Post	JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel
Saddle	Merida Expert TK; V-mount
Chainset	Shimano CRE61; 38 tooth chainring with Shimano FC-E8000; 165 mm crank and chainguard
Bottom Bracket	Part of Shimano Steps motor
Chain	KMC e10S EPT
Cassette	Shimano M4100 11-46 teeth
Pedals	VP Components, VPE-891
Battery Size (WH)	Shimano E8036; 630Wh internal battery
Motor	Shimano Steps E6100; 60Nm
User Interface	Shimano SC-E5000

Typical Bike Size Chart

Height	Bike Size	Road Bike Size	Mountain Bike Size *
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.

Read our bike size guide for more information on sizing.
