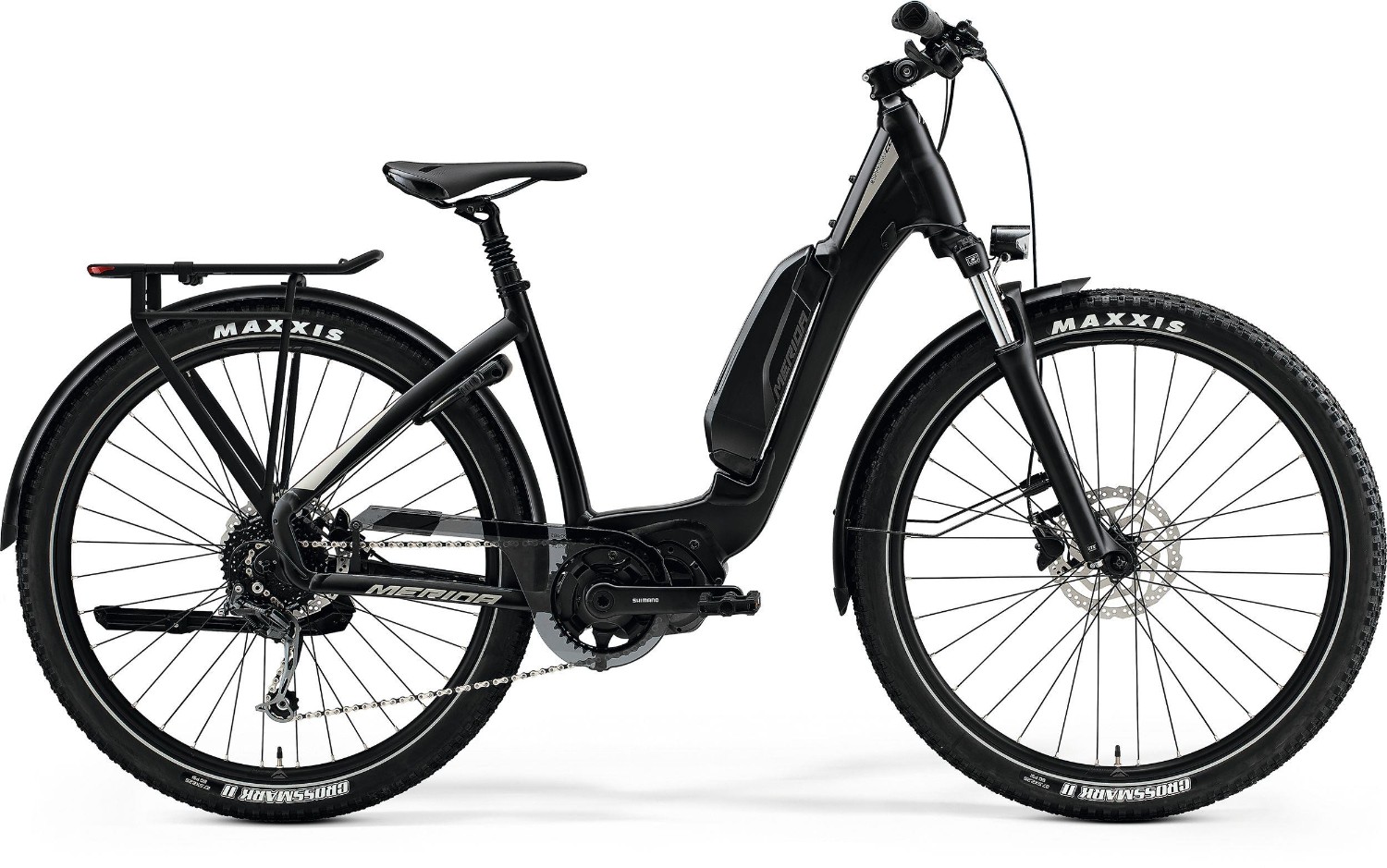

Merida eSpresso CC 400SE EQ 2023 - Electric Hybrid Bike
Fully Equipped
The eSPRESSO CC come fully equipped with fenders, kickstand, carrier and lights. Ready for any outing you can think of.
650b Wheels With Big Volume Tyres
The decision to use 650B wheels with 2.25" off-road tread pattern for our CC models is not just a design feature but has more practical reasons. To add big volume tyres to an e-bike provides increased comfort but also extra traction and therefore more safety reserves. Small and even bigger bumps can easily be rolled over, and a big volume tyre provides more puncture protection compared to a narrow one.
Internal Cable Routing
The decision to use 650B wheels with 2.25" off-road tread pattern for our CC models is not just a design feature but has more practical reasons. To add big volume tyres to an e-bike provides increased comfort but also extra traction and therefore more safety reserves. Small and even bigger bumps can easily be rolled over, and a big volume tyre provides more puncture protection compared to a narrow one.
Low Step Through
The Shimano mid-mounted motor, in combination with the forged motor bracket provides one of the lowest step-through heights in the market.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Hydroformed 6066 triple butted aluminium. Tapered head tube and bolt through axles for stiffness and confidence inspiring riding. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25" |
| Fork | Suntour NVX30 DS; Coil; 80mm travel; Max. tyre size: 27.5" x 2.4" |
| Headset | Merida 2346 Neck |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable - Stem length: 90mm (XS/S/M), 110mm (L/XL) |
| Bars | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Front Brake | Shimano BR-MT200; 2 piston hydraulic disc brake caliper with Shimano RT10; 180mm rotor |
| Rear Brake | Shimano BR-MT200 hydraulic disc brake caliper with Shimano RT10; 160mm rotor |
| Brake Lever | Shimano MT-200 |
| Rear Mech | Shimano Deore M3100; SGS |
| Shifters | Shimano Alivio M3100 |
| Speed | 9 |
| Rims | Merida Comp TK; 20mm inner rim width; aluminium |
| Front Hub | Shimano TX505; 100x9mm; 32 spokes; Center lock |
| Rear Hub | Shimano TX505; 135x9mm; 36 spokes; Center lock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Crossmark II; 27.5" x 2.25"; wire bead; reflective line |
| Rear Tyre | Maxxis Crossmark II; 27.5" x 2.25"; wire bead; reflective line |
| Seat Post | JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel |
| Saddle | Merida Expert TK; V-mount |
| Chainset | Shimano CRE61; 38 tooth chainring with Shimano FC-E6100; 170 mm crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e9S |
| Cassette | Shimano HG200 11-36 teeth |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | 504 Wh |
| Motor | Shimano E8010; 504Wh battery, Shimano Steps E6100; 60Nm |
| User Interface | Shimano SC-E5000 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
