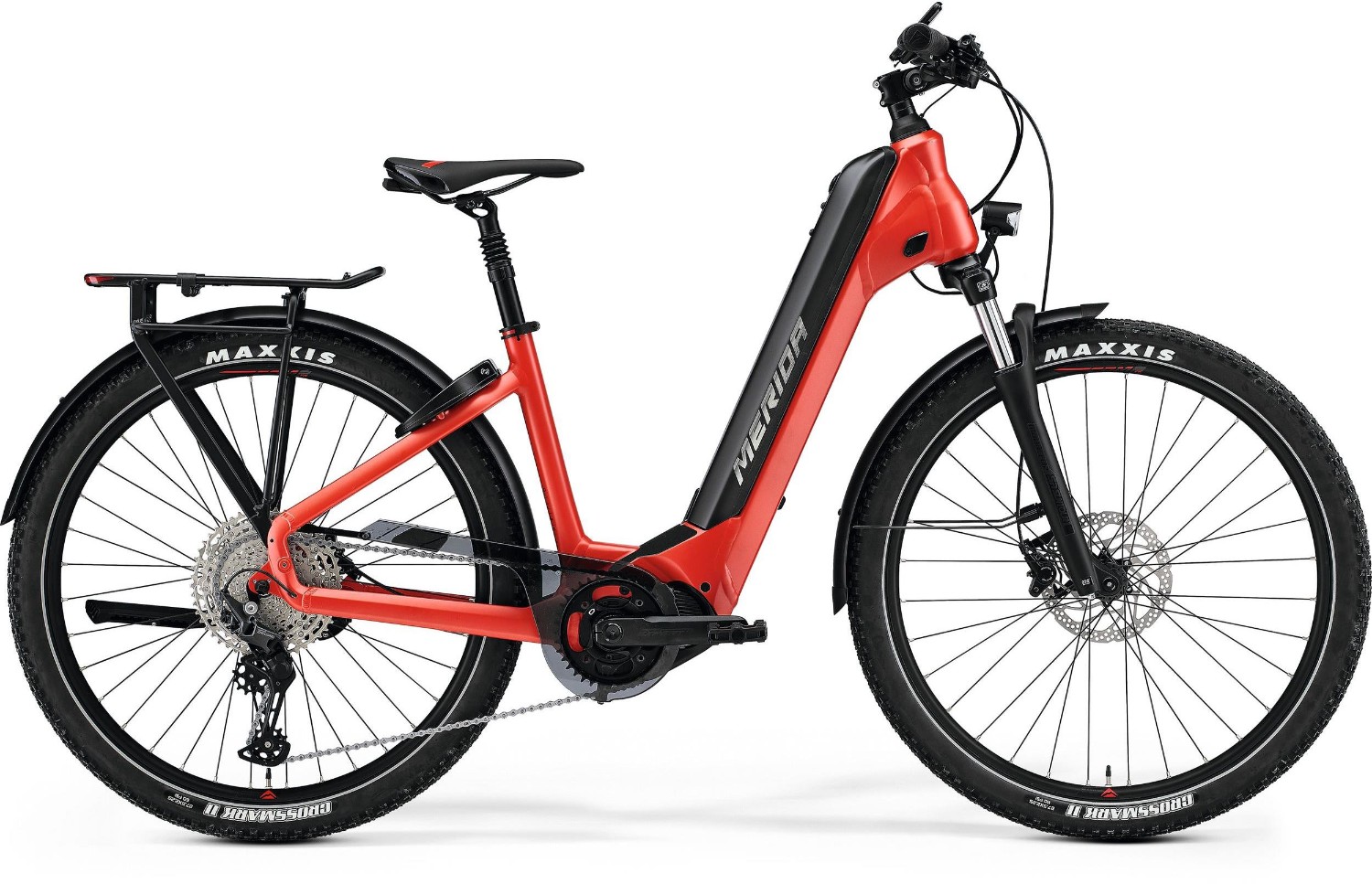

Merida eSpresso CC 600 EQ 2023 - Electric Hybrid Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Hydroformed 6066 triple butted aluminium. Tapered head tube and bolt through axles for stiffness and confidence inspiring riding. Cables routed internally via Smart Entry to hold them neatly and silent. Max. tyre size 27.5" x 2.25" |
| Fork | Suntour MOBIE A32 NLO; Coil; 75mm travel; lockout; Max. tyre size: 27.5" x 2.4" |
| Headset | Merida-8251 |
| Stem | Merida Expert CT; aluminium; 31.8mm diameter; adjustable. Stem length: 90mm- all sizes |
| Bars | Merida Expert; aluminium; 660mm wide; 15mm rise |
| Front Brake | Shimano MT410-3A; 2 piston hydraulic disc brake caliper with Shimano RT30; 180mm rotor |
| Rear Brake | Shimano MT410-3A; 2 piston hydraulic disc brake caliper with Shimano RTEM300; 180mm rotor |
| Brake Lever | Shimano MT-410 |
| Rear Mech | Shimano Deore M5100 ; SGS |
| Shifters | Shimano Deore M5100 |
| Speed | 11 |
| Rims | Merida Comp TK; 20mm inner rim width; aluminium |
| Front Hub | Shimano Deore; 100x15mm; 32 spokes; Center lock |
| Rear Hub | Shimano Deore; 135x9mm; 36 spokes; Center lock |
| Spokes | Black stainless |
| Front Tyre | Maxxis Crossmark II; 27.5" x 2.25"; wire bead; reflective line |
| Rear Tyre | Maxxis Crossmark II; 27.5" x 2.25"; wire bead; reflective line |
| Seat Post | JD-SP79; 30.9mm diameter; 15mm lay back; 40mm suspension travel |
| Saddle | Merida Expert TK; V-mount including Multitool |
| Chainset | Samox NWP203; 38 tooth chainring with Merida Expert TK 170mm crank and chainguard |
| Bottom Bracket | Part of Shimano Steps motor |
| Chain | KMC e11S EPT |
| Cassette | Shimano M5100; 11-51 teeth; 11 speed |
| Pedals | VP Components, VPE-891 |
| Battery Size (WH) | Shimano E8036 Internal Battery; 630Wh |
| Motor | Shimano Steps EP8; 85Nm |
| User Interface | Shimano SC-E6100 |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
