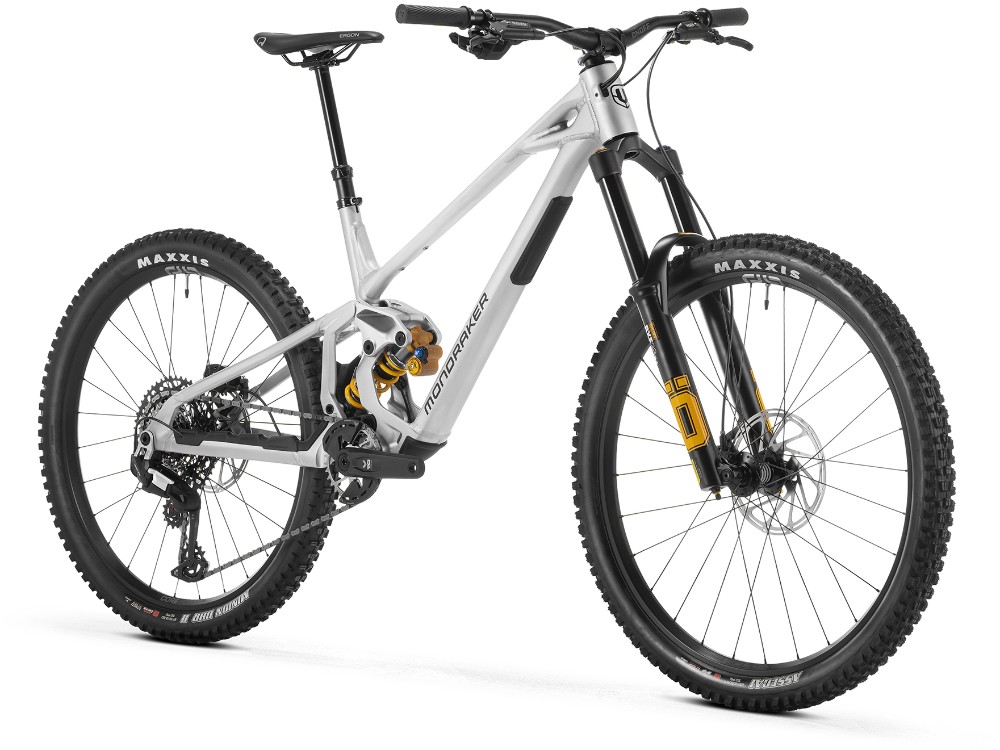

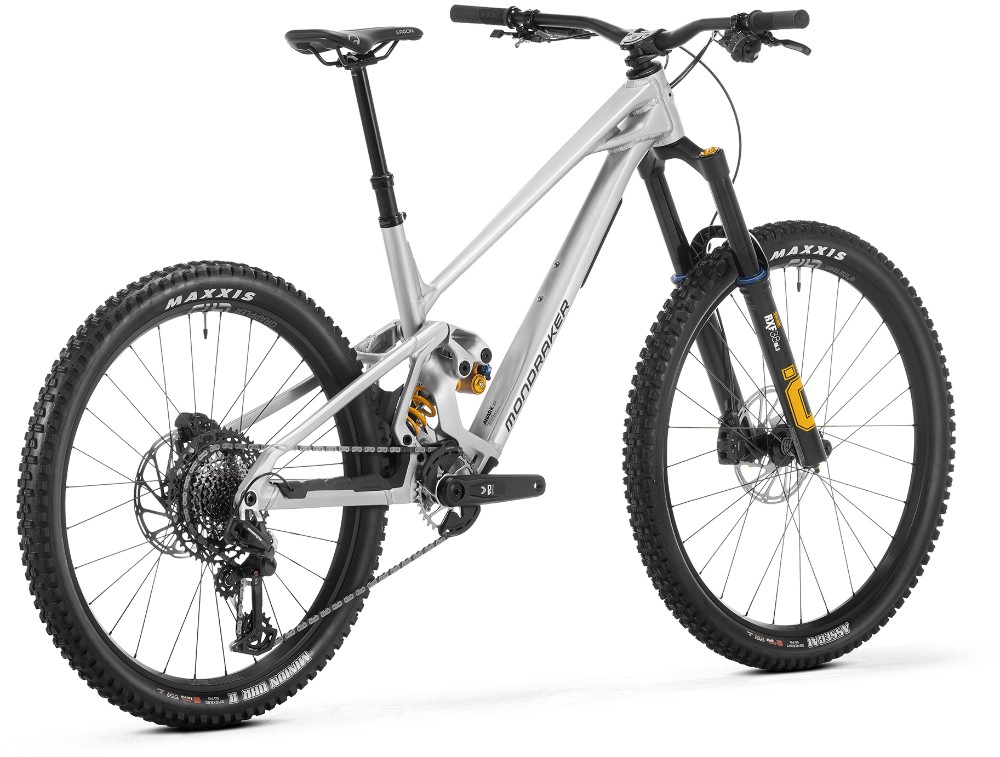

Mondraker Anark XR Mountain Bike 2027 - MTB
The Mondraker Anark XR combines a hydroformed aluminium frame, updated ZERO suspension and premium Öhlins components for demanding gravity riding. With Forward Geometry, mixed wheels and SRAM Eagle 90 Transmission, it's designed for stability on rough descents and playful handling through jumps and berms.
Key Features:
- Frame: Hydroformed 6061 aluminium with Forward Geometry and updated ZERO suspension.
- Fork: Öhlins RXF 38 M.3 suspension fork with 180mm travel and TTX18 damping.
- Rear Shock: Öhlins TTX 22M.2 Coil with 170mm rear-wheel travel.
- Drivetrain: SRAM Eagle 90 T-Type mechanical 1x12-speed Transmission with 10-52T cassette.
- Brakes: SRAM Maven Base four-piston hydraulic disc brakes with 200mm rotors.
- Wheels: 29-inch front and 27.5-inch rear e*thirteen wheels with Maxxis gravity tyres.
- Extras: Adjustable geometry, Onoff Pija dropper post and UDH compatibility.
- Available with 0% APR finance.
Stealth Evo Aluminium Frame
The Mondraker Anark XR features a hydroformed 6061 aluminium frame with Forward Geometry, combining a longer front centre and short stem for stability at speed and responsive handling. Developed using Mondraker's downhill racing experience, it's designed for aggressive riding while remaining capable of pedalling uphill.
Updated ZERO Suspension System
Mondraker's updated ZERO suspension system provides 170mm of rear-wheel travel, with revised kinematics designed to improve sensitivity and traction over rough terrain. Its supportive suspension characteristics help maintain control through repeated impacts, technical descents and bigger landings.
Öhlins RXF 38 M.3 Suspension Fork
The Öhlins RXF 38 M.3 fork delivers 180mm of travel with TTX18 Twin Tube damping for controlled performance on demanding terrain. Adjustable high and low-speed compression, rebound and an air ramp chamber allow riders to fine-tune the fork's response to suit their riding style.
Öhlins TTX 22M.2 Coil Rear Shock
The Öhlins TTX 22M.2 coil shock provides consistent suspension performance and sensitivity over smaller bumps. High and low-speed compression adjustments, rebound control and a climb mode allow riders to tune the suspension for technical descents and pedalling between trails.
SRAM Eagle 90 Transmission
The SRAM Eagle 90 T-Type mechanical 12-speed drivetrain combines precise shifting with a wide 10-52T cassette. Its robust Transmission design is suited to demanding mountain biking, while the broad gear range makes climbing back to the top of the trails more manageable.
SRAM Maven Base Hydraulic Disc Brakes
SRAM Maven Base four-piston hydraulic disc brakes provide powerful, controlled braking for steep descents and demanding terrain. Paired with 200mm Centerline rotors front and rear, they offer dependable stopping performance, with tool-free lever reach adjustment.
e*thirteen Grappler Core Wheels
The e*thirteen Grappler Core aluminium wheels feature 30mm internal rim widths and tubeless-ready construction. Their durable design is suited to aggressive mountain biking, while the mixed 29-inch front and 27.5-inch rear configuration balances rollover performance with manoeuvrability.
Maxxis Assegai and Minion DHR II Tyres
A Maxxis Assegai 29x2.5WT front tyre uses the 3C MaxxGrip compound for traction and cornering control. At the rear, a Minion DHR II 27.5x2.5WT features the 3C MaxxTerra compound. Both use downhill casings for additional protection on rocky and demanding trails.
Adjustable Geometry
The Anark XR features a flip chip that allows small adjustments to its geometry, including approximately 4mm of reach adjustment. This lets riders fine-tune the bike's handling to suit their preferences, whether prioritising stability or a more responsive feel.
Gravity-Focused Components
An 800mm Onoff S6 handlebar and short 30mm stem provide steering control, while the Onoff Pija dropper post allows riders to quickly lower their saddle for descents. Dropper travel is adjustable and varies by frame size, helping provide an appropriate fit.
Built for Gravity Riding
The Mondraker Anark XR is designed for riders who enjoy technical descents, jumps and bike park sessions. Its Öhlins suspension, mixed-wheel setup and durable components provide the control needed for aggressive riding, while the wide-range SRAM drivetrain keeps pedal-powered adventures an option.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Anark 6061 Alloy Stealth Evo Mullet, hydroformed; Updated Zero Suspension, 170mm travel; Forward Geometry; Monoblock upper link; Boost 12x148 axle, UDH; tapered head tube; 73mm BSA; 1x drivetrain; internal dropper routing; MAX bearings; ISCG 05. |
| Fork | Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Front Brake | Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust |
| Rear Mech | Sram 90 Eagle, T-Type, 12s |
| Shifters | Sram Trigger 70, 12s, T-Type Actuation |
| Speed | 12 |
| Rims | e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | Ergon Enduro SPS20 |
| Chainset | Sram 90 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Cassette | Sram XS-1270, 10-52T, 12s |
Mountain Bike Size Chart
|
Height
|
Bike Size
|
Mountain Bike Size
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
