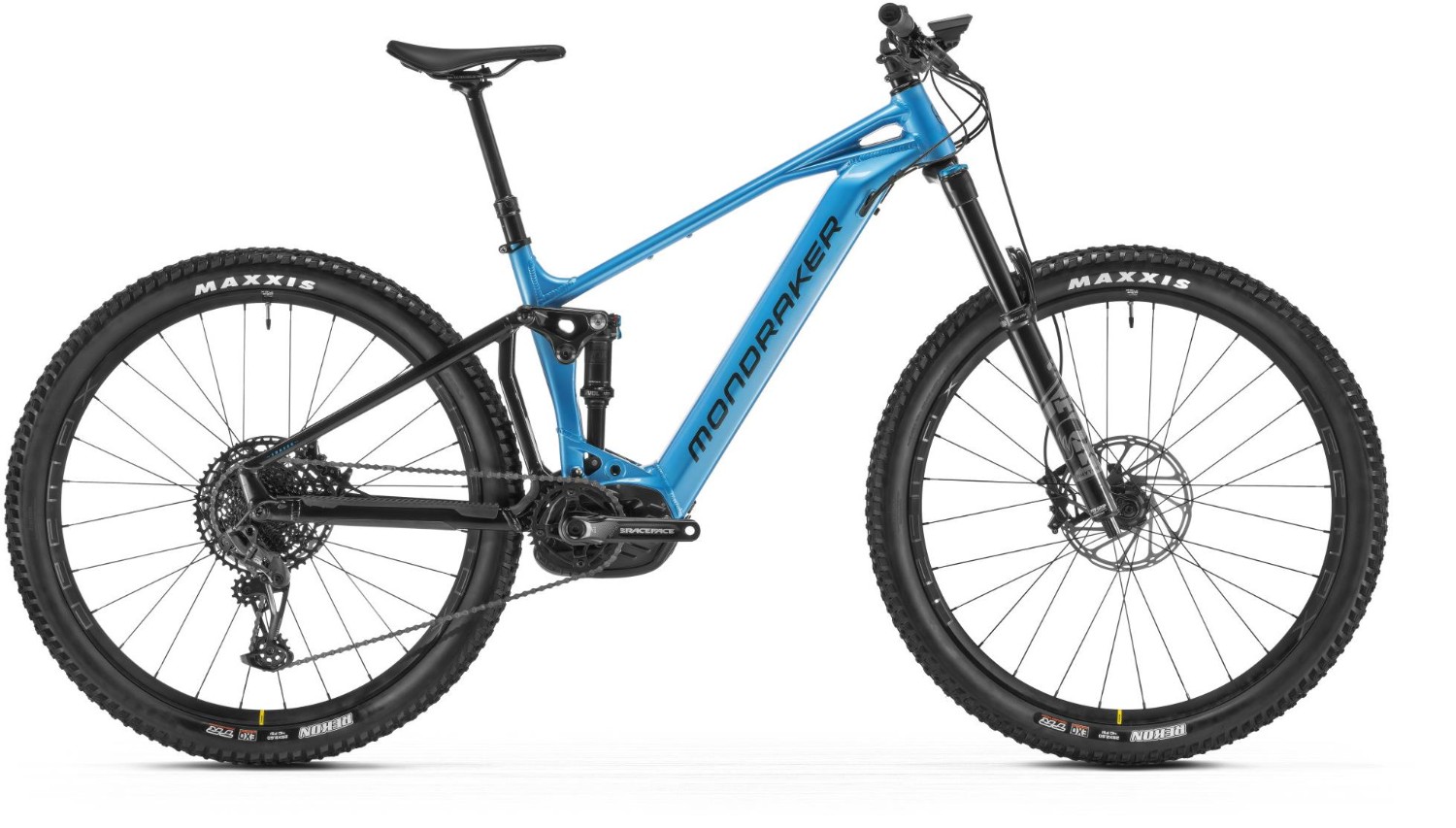

Mondraker Chaser R 29 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, MAX capacity sealed bearings, oversize 17mm axles |
Fork | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: sweep adjust compression, Low-speed rebound, air preload |
Rear Shock | Fox Float DPS Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Brake | SRAM G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Brake Lever | Sram G2 R, tool-free reach adjust |
Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
Speed | 12 |
Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
Spokes | Mavic J-bend duble butted, contactless lacing |
Front Tyre | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Rear Tyre | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
Saddle | FIZIK Terra Aidon X5 145mm |
Chainset | Race Face Aeffect ebike, 165mm |
Chain | SRAM SX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1210, 11-50T, 12s |
Pedals | Resin Platform |
Weight | 24.6 kg |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
User Interface | Bosch Kiox 300 |
Electric Bike Bike Size Chart
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
