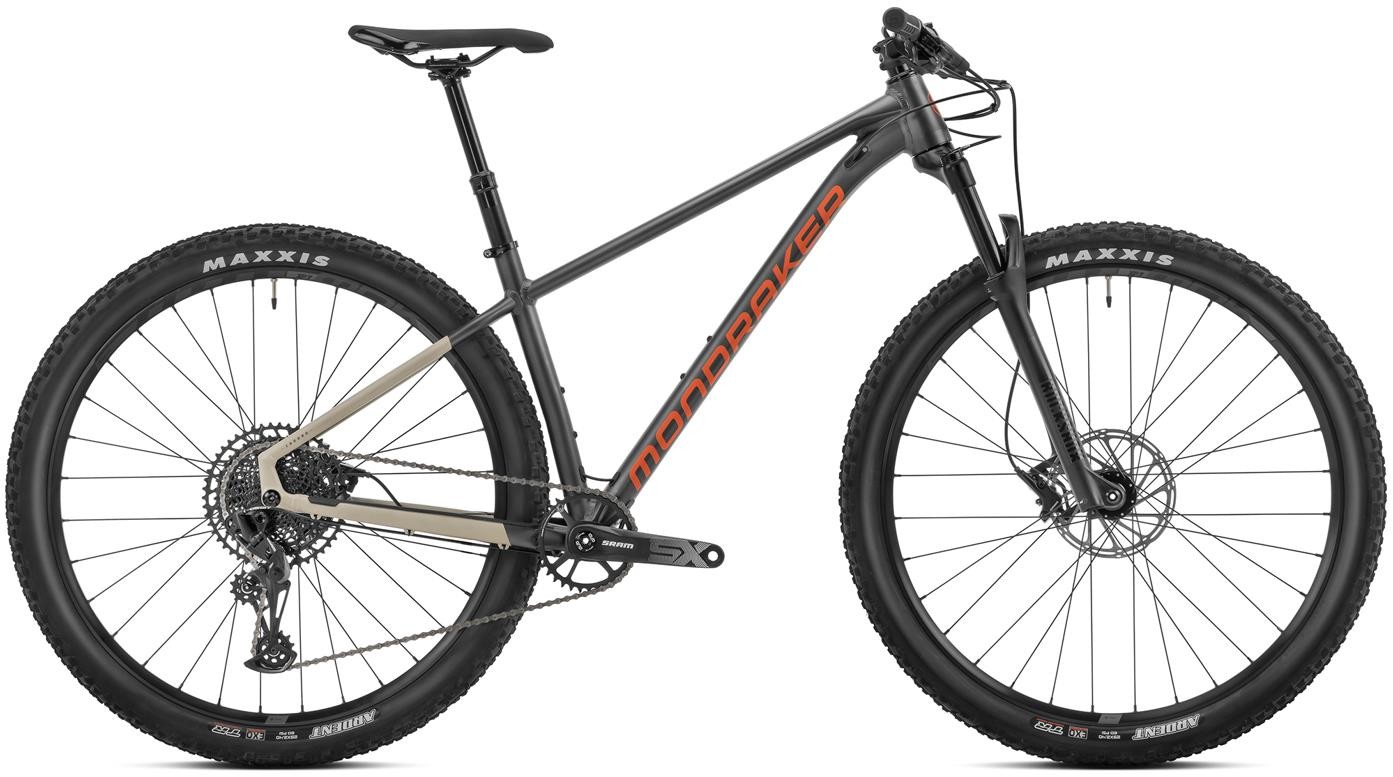

Mondraker Chrono DC Mountain Bike 2023 - Hardtail MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle |
| Fork | RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm |
| Bars | Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore |
| Front Brake | Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level, tooled reach adjust, lever pivot bushings |
| Rear Mech | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Shifters | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
| Rear Hub | Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts |
| Spokes | CN round stainless steel |
| Front Tyre | Maxxis Ardent 29x2.40, 60TPI, folding bead |
| Rear Tyre | Maxxis Ardent 29x2.40, 60TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm |
| Saddle | Mondraker XC Series, steel rail |
| Chainset | Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm. 34T, steel, X-Sync 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Pedals | Resin Platform |
Chrono Sizing
See the table below to find the right size Mondraker Chrono.
|
Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
>195cm |
|
Size |
|
Medium |
Medium/Large |
Large |
Large / X Large |
X Large |
X Large |
Read our bike size guide for more information on sizing.
Chrono Geometry
|
Frame Size |
S |
M |
L |
XL |
|
Seat Tube Length |
295mm |
430mm |
5470mm |
520mm |
|
Top Tube Length |
590mm |
610mm |
630mm |
650mm |
|
Bottom Bracket Drop |
-65mm |
-65mm |
-65mm |
-65mm |
|
Bottom Bracket Height |
305mm |
305mm |
305mm |
305mm |
|
Chain Stay Length |
430mm |
430mm |
430mm |
430mm |
|
Seat Tube Angle, Actual |
72 Degrees |
72 Degrees |
72 Degrees |
72 Degrees |
|
Seat Tube, Effective |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
|
Head Tube Angle |
70 Degrees |
70 Degrees |
70 Degrees |
70 Degrees |
|
Fork Offset |
46mm |
46mm |
46mm |
46mm |
|
Wheelbase |
1082mm |
1101mm |
1122mm |
1143mm |
|
Head Tube Length |
85mm |
90mm |
100mm |
115mm |
|
Reach |
411mm |
430mm |
447mm |
463m |
|
Stack |
605mm |
610mm |
619mm |
632mm |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
