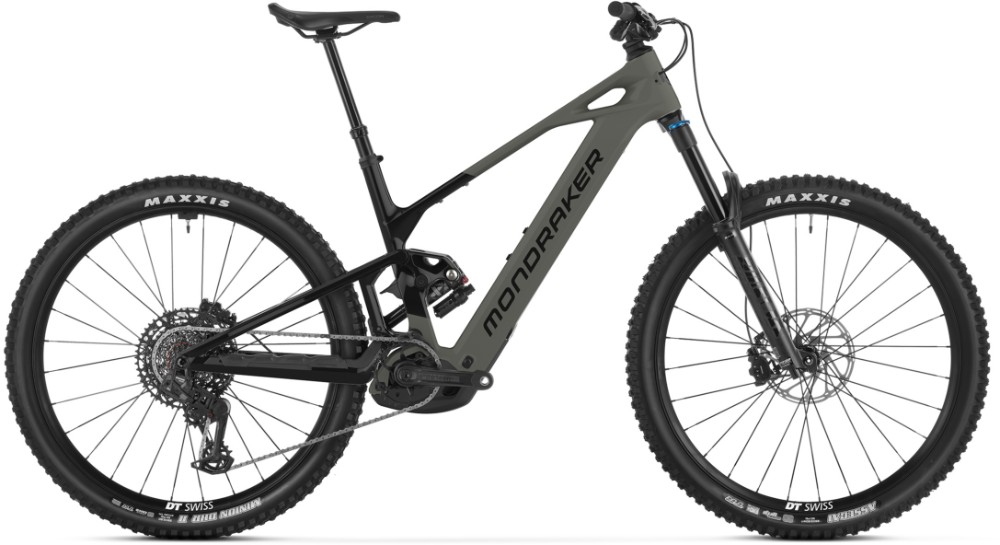

Mondraker Crafty Carbon R 2027 - Electric Mountain Bike
The Mondraker Crafty Carbon R is a full-suspension electric mountain bike built for demanding trail riding. Featuring a carbon and aluminium frame, updated ZERO suspension, Fox suspension and SRAM Eagle AXS wireless shifting, it combines powerful assistance with confident handling.
Key Features:
- Frame: Stealth Air carbon front, alloy rear, Forward Geometry and updated ZERO suspension.
- Fork: Fox 38 Float GRIP Performance with 160mm travel and e-bike tuning.
- Rear Shock: Fox Float X LV Performance with 150mm rear-wheel travel.
- Drivetrain: SRAM S1000 Eagle AXS T-Type wireless 1x12-speed Transmission with 10-52T cassette.
- Brakes: SRAM Maven Base four-piston hydraulic disc brakes with 200mm rotors.
- Wheels: 29-inch Mavic E-Deemax wheels with Maxxis Assegai and Minion DHR II tyres.
- Extras: Onoff Pija dropper post, UDH compatibility and removable battery.
- Available with 0% APR finance.
Drive Information:
- Motor: Bosch Performance Line CX Smart System with up to 120Nm torque via Flow app update.
- Battery: Removable Bosch PowerTube 800Wh battery.
- User Interface: Bosch Kiox 400C display with Mini Remote handlebar controller.
Stealth Air Carbon Frame
The Crafty Carbon R features a Stealth Air carbon front triangle and aluminium rear triangle. Mondraker's Forward Geometry combines a longer front centre with a short stem for stability and control. Size-specific chainstays measure 455mm on S, M and ML frames and 465mm on L and XL, helping maintain balanced handling across the range.
Updated ZERO Suspension System
Mondraker's updated ZERO suspension system delivers 150mm of rear-wheel travel. Revised kinematics improve small-bump sensitivity, traction and suspension support, helping the rear wheel maintain contact with the ground on technical climbs and rough descents.
Fox 38 Float GRIP Performance Fork
The e-bike-tuned Fox 38 Float GRIP Performance fork provides 160mm of travel for tackling rocky trails and demanding descents. Its adjustable compression and rebound damping allow riders to fine-tune the fork's response to suit different terrain and riding preferences.
Fox Float X LV Performance Rear Shock
The Fox Float X LV Performance air shock works with the ZERO suspension system to provide controlled rear-wheel travel. Adjustable rebound and a two-position compression lever allow riders to balance sensitivity and support for climbing and descending.
Bosch Performance Line CX Motor
The Bosch Performance Line CX motor provides responsive pedal assistance for steep climbs and technical terrain. Through the Bosch eBike Flow app, compatible motors can be updated to deliver up to 120Nm of torque and 750W peak power, with customisable assistance settings to suit different riding conditions.
Bosch PowerTube 800Wh Battery
The removable Bosch PowerTube 800Wh battery provides substantial capacity for longer rides and repeated climbs. Integrated into the downtube, it maintains the bike's streamlined appearance while allowing removal for convenient charging.
Bosch Kiox 400C Display
The integrated Bosch Kiox 400C display provides riding information, including speed, battery level and assistance settings. The Bosch Mini Remote allows riders to change assistance modes from the handlebars.
SRAM Eagle AXS Transmission
The SRAM S1000 Eagle AXS T-Type 12-speed drivetrain delivers wireless electronic shifting through an AXS Pod Controller. Its 10-52T cassette provides a wide gear range for steep climbs and faster trails, while the Transmission system is designed for consistent shifting under load.
SRAM Maven Base Hydraulic Disc Brakes
SRAM Maven Base four-piston hydraulic disc brakes provide powerful stopping performance for demanding mountain biking. Paired with 200mm Centerline rotors front and rear, they offer controlled braking on steep descents, with tool-free lever reach adjustment.
Mavic E-Deemax Wheels
The 29-inch Mavic E-Deemax aluminium wheels feature 30mm internal rim widths and tubeless-ready construction. Designed for demanding mountain biking, they combine durable rims with Boost hubs to handle the additional demands of e-MTB riding.
Maxxis Assegai and Minion DHR II Tyres
A Maxxis Assegai 29x2.5WT front tyre uses the 3C MaxxGrip compound and EXO+ protection for cornering traction. The rear Minion DHR II 29x2.5WT features a 3C MaxxTerra compound and DoubleDown casing for durability and grip on rough terrain.
Trail-Focused Components
An 800mm Onoff S6 handlebar and 30mm stem provide steering control, while the Onoff Pija dropper post allows riders to quickly lower their saddle for descents. Dropper travel is adjustable and varies by frame size.
Built for Technical Trail Riding
The Mondraker Crafty Carbon R combines 160mm front and 150mm rear suspension with Bosch pedal assistance and wireless SRAM shifting. Its balanced geometry and capable components make it well suited to technical trails, challenging climbs and demanding descents.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air carbon front/alloy rear; Updated Zero, 150mm travel; Forward Geometry; removable internal battery; Boost 12x148 axle, UDH; tapered head tube; Monoblock link; HHG routing; MAX bearings; 15mm axles; exclusive plastic motor covers. |
| Fork | Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Front Brake | Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust |
| Rear Mech | Sram S1000 Eagle AXS T-Type, 12s |
| Shifters | Sram Eagle AXS Pod MMX, 12s |
| Speed | 12 |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | Ergon SM-10 |
| Chainset | Race Face Aeffect-R ebike, 160mm |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s |
| Battery Size (WH) | 800 |
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| User Interface | Kiox 400C / Bosch Mini Remote |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
