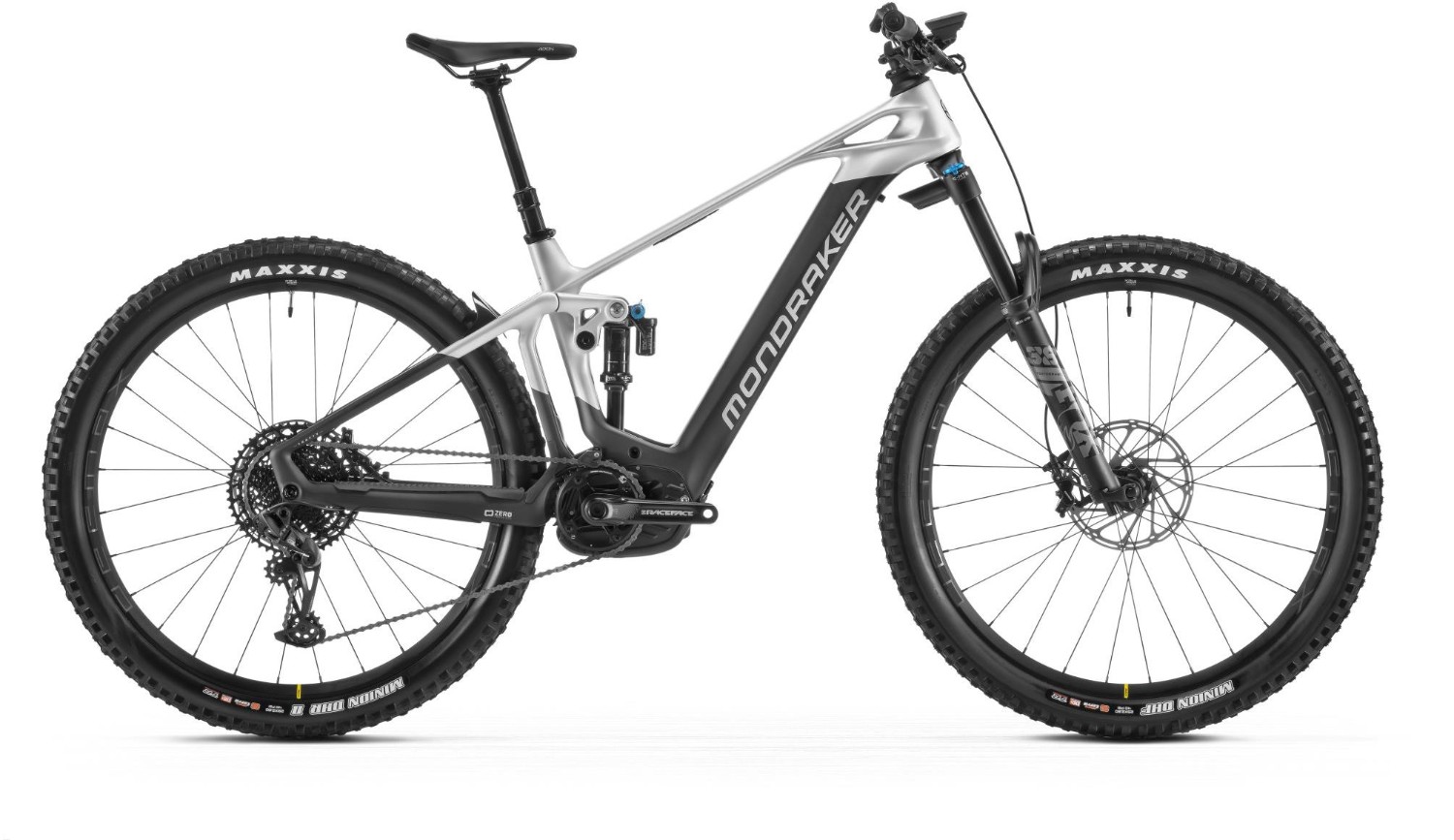

Mondraker Crafty Carbon R 29 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, internal non-removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, oversize 17mm axles, integrated dropout speed sensor |
Fork | Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
Bars | ONOFF Krypton 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Front Brake | Sram G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Brake | SRAM G2 RS, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Brake Lever | SRAM G2 RS, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
Speed | 12 |
Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts |
Spokes | Mavic J-bend duble butted, contactless lacing |
Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
Saddle | FIZIK Terra Aidon X5 145mm |
Chainset | Race Face Aeffect ebike, 165mm |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram XG-1230, 11-50T, 12s |
Pedals | Resin Platform |
Weight | 23.7 kg |
Battery Size (WH) | Bosch PowerTube 750Wh |
Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 BS3 |
User Interface | Bosch Kiox 300 |
Crafty eBike Sizing
See the table below to find the right size Mondraker Crafty Electric Bike.
|
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
|
Crafty eBike Geometry
|
Frame Size |
Small |
Medium |
Large |
X Large |
A |
Seat Tube Length |
380 |
420mm |
470mm |
500mm |
B |
Top Tube Length |
615mm |
642mm |
667mm |
690mm |
C |
Bottom Bracket Drop |
-19mm |
-19mm |
-19mm |
-19mm |
D |
Bottom Bracket Height |
337mm |
337mm |
337mm |
337mm |
E |
Chain Stay Length |
475mm |
475mm |
475mm |
475mm |
F |
Seat Tube Angle, Actual |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
G |
Seat Tube Angle, Effective |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
H |
Head Tube |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
I |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
J |
Wheelbase |
1242mm |
1276mm |
1304mm |
1328mm |
K |
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
L |
Reach |
442mm |
467mm |
487m |
507mm |
M |
Stack |
605mm |
624mm |
642mm |
652mm |
