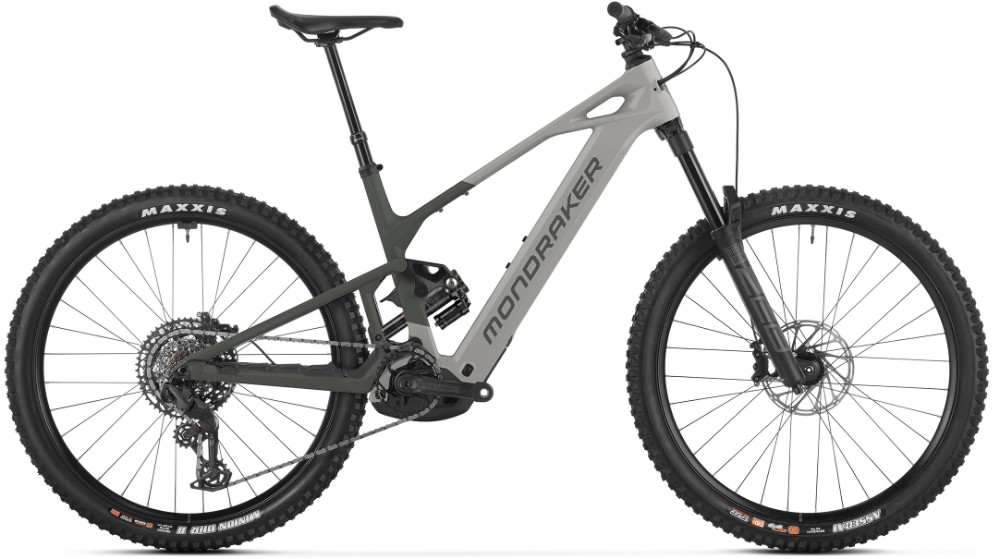

Mondraker Crafty Carbon S 2027 - Electric Mountain Bike
The Mondraker Crafty Carbon S is a full-suspension electric mountain bike built for demanding trail riding. Featuring a carbon and aluminium frame, updated ZERO suspension, Bosch CX motor and SRAM Eagle 70 Transmission, it combines powerful assistance with confident handling on technical terrain./p>
Key Features:
- Frame: Stealth Air carbon front, alloy rear, Forward Geometry and updated ZERO suspension.
- Fork: RockShox ZEB Base Rush RC with 160mm travel and adjustable damping.
- Rear Shock: Fox Float X LV Performance with 150mm rear-wheel travel.
- Drivetrain: SRAM Eagle 70 T-Type mechanical 1x12-speed Transmission with 10-52T cassette.
- Brakes: SRAM DB8 four-piston hydraulic disc brakes with 200mm rotors.
- Wheels: 29-inch WTB Sportterra Tough wheels with Maxxis Assegai and Minion DHR II tyres.
- Extras: X-Fusion Manic dropper post, UDH compatibility and removable battery.
- Available with 0% APR finance.
Drive Information:
- Motor: Bosch Performance Line CX Smart System with up to 120Nm torque via Flow app update.
- Battery: Removable Bosch PowerTube 800Wh battery.
- User Interface: Bosch Kiox 400C display with Mini Remote handlebar controller.
Stealth Air Carbon Frame
The Mondraker Crafty Carbon S features a Stealth Air carbon front triangle and aluminium rear, combining low weight with durability. Its Forward Geometry provides stability on technical descents, while size-specific chainstay lengths help maintain balanced handling across the five frame sizes.
Updated ZERO Suspension System
Mondraker's updated ZERO suspension system provides 150mm of rear-wheel travel, with revised kinematics designed to improve small-bump sensitivity and traction. Its supportive suspension characteristics help maintain control over rough terrain while providing grip on technical climbs.
RockShox ZEB Base Rush RC Fork
The RockShox ZEB Base Rush RC fork delivers 160mm of travel, helping absorb impacts on rocky trails and demanding descents. Adjustable low-speed compression and rebound damping allow riders to fine-tune the suspension to suit their riding style.
Fox Float X LV Performance Rear Shock
The Fox Float X LV Performance shock works with Mondraker's ZERO suspension system to provide 150mm of rear-wheel travel. Its air-sprung design offers sensitivity over smaller bumps, with adjustable rebound and a two-position compression lever for tuning suspension performance.
Bosch Performance Line CX Motor
The Bosch Performance Line CX motor delivers responsive pedal assistance for steep climbs and technical terrain. With the latest Bosch Flow app update, riders can access up to 120Nm of torque and 750W peak power, allowing them to customise assistance to suit their riding preferences.
Bosch PowerTube 800Wh Battery
The removable 800Wh battery provides substantial capacity for longer rides and repeated climbs. Integrated into the downtube, it maintains a streamlined frame profile while allowing the battery to be removed for convenient charging.
Bosch Kiox 400C Display
The integrated Bosch Kiox 400C display provides clear access to essential riding information, including speed, battery status and assistance settings. The Bosch Mini Remote allows riders to change assistance levels without removing their hands from the handlebars.
SRAM Eagle 70 Transmission
The SRAM Eagle 70 T-Type mechanical 12-speed drivetrain features a wide-range 10-52T cassette for tackling steep climbs and faster trails. Its Transmission design provides consistent derailleur alignment, while mechanical shifting keeps operation straightforward.
SRAM DB8 Hydraulic Disc Brakes
SRAM DB8 four-piston hydraulic disc brakes provide controlled stopping performance on demanding descents. Paired with 200mm Centerline rotors front and rear, they offer dependable braking power for technical mountain biking.
WTB Sportterra Tough Wheels
The WTB Sportterra Tough aluminium wheels feature 30mm internal rim widths and tubeless-ready construction. Their durable design is suited to demanding e-MTB riding, while the 29-inch wheel configuration helps maintain momentum over roots, rocks and uneven terrain.
Maxxis Assegai and Minion DHR II Tyres
A Maxxis Assegai 29x2.5WT front tyre uses the 3C MaxxGrip compound and EXO+ protection for traction and cornering control. The rear Minion DHR II 29x2.5WT features a 3C MaxxTerra compound and DoubleDown casing for additional durability.
Trail-Focused Components
An 800mm Onoff S6 handlebar and short 30mm stem provide steering control, while the X-Fusion Manic dropper post allows riders to lower their saddle for technical descents. Dropper travel varies by frame size, helping provide an appropriate fit.
Built for Technical Trail Riding
The Mondraker Crafty Carbon S combines capable suspension, a powerful Bosch drive system and durable components for demanding mountain bike riding. Whether tackling steep climbs, technical descents or longer trail adventures, it offers controlled handling and powerful pedal assistance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air carbon front/alloy rear; Updated Zero, 150mm travel; Forward Geometry; removable internal battery; Boost 12x148 axle, UDH; tapered head tube; Monoblock link; HHG routing; MAX bearings; 15mm axles; exclusive plastic motor covers. |
| Fork | RockShox ZEB Base Rush RC 29, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram DB8 Stealth, tool reach adjust, lever pivot bushings |
| Rear Mech | Sram 70 Eagle, T-Type, 12s |
| Shifters | Sram Trigger 70, 12s, T-Type Actuation |
| Speed | 12 |
| Rims | WTB Sportterra Tough,6061 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | WTB Frequenzy Sport Boost 15x110mm, fully machined aluminum, IS 6 bolts |
| Rear Hub | WTB Frequenzy Sport Boost 12x148mm, fully machined aluminum, IS 6 bolts, HG freehub |
| Spokes | WTB Straight gauge spokes & black brass locking nipples |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Seat Post | X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200 |
| Saddle | Ergon SM-10 |
| Chainset | E.13 Helix Core E*Spec Plus, All sizes: 160mm |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Cassette | Sram XS-1270, 10-52T, 12s |
| Battery Size (WH) | 800 |
| Motor | Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y) |
| User Interface | Kiox 400C / Bosch Mini Remote |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
