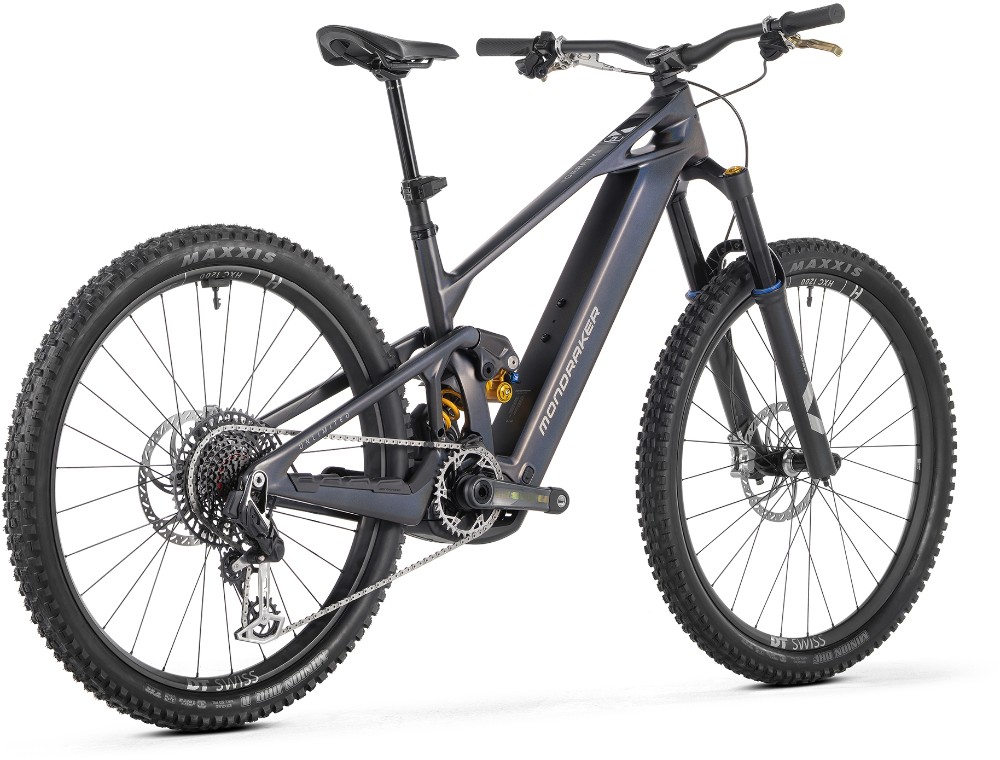

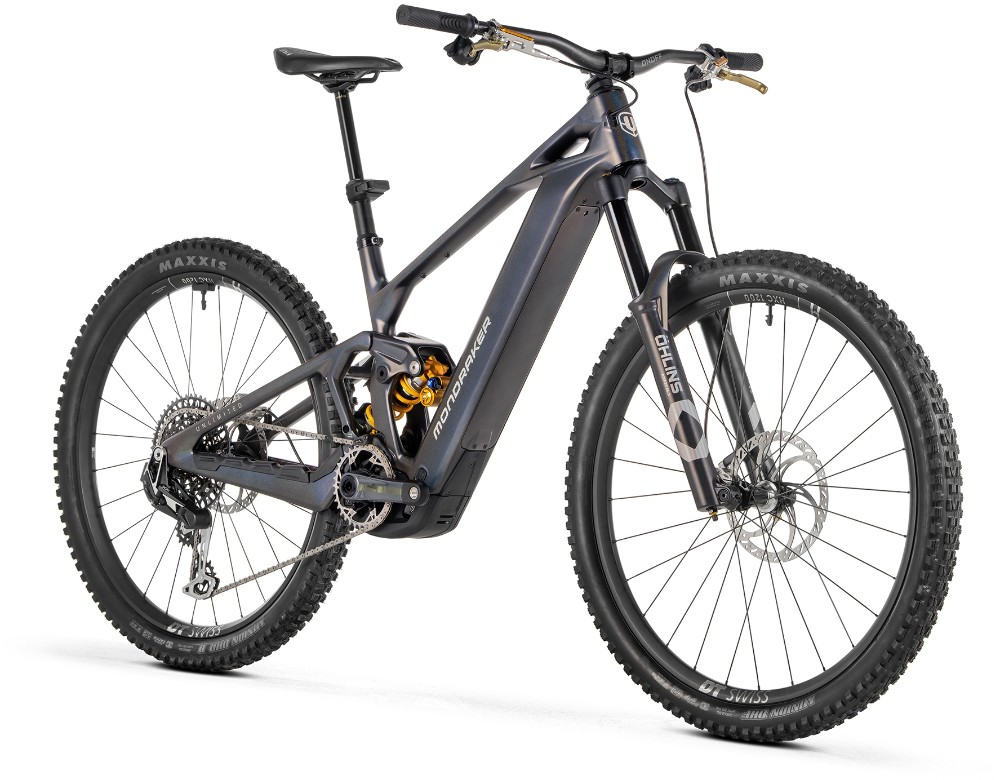

Mondraker Crafty Carbon Unlimited Icon 2027 - Electric Mountain Bike
Price: £11,699.00
It is rare for a bike to transcend its role as simply a bike and become something much greater. A symbol. A way of understanding e-mtb. An icon.
Crafty was born ten years ago, coinciding with the arrival of the first generation of the Bosch Performance Line CX: the first motor created specifically for e-mtb. It was then that we saw the opportunity to develop an electric bike designed from its core for mountain biking, our specialty.
Since then, Crafty has evolved to become Mondraker’s reference e-bike.
The most versatile. The most complete. The bike capable of climbing the most technical trails and riding with confidence and stability on the fastest and most demanding descents. Mondraker’s Zero Suspension system and Forward Geometry, optimised for the Crafty platform are combined to maximise traction, stability and control on any terrain.
To mark its tenth anniversary, we present the ultimate expression of the Crafty. A limited and exclusive edition created to celebrate its evolution. A unique and one-of-a-kind Crafty. The Crafty Unlimited ICON.
TEN YEARS OF MONDRAKER’S MOST ICONIC E-BIKE
Some bikes define an era. Others an entire category.
Since its launch, the Crafty has become the benchmark of our e-mtb range. The Mondraker bike that thousands of riders have chosen to discover that an e-bike can be just as much fun going downhill as it is going uphill.
Crafty was born with a very clear idea: to create an e-bike capable of performing equally well in any situation. A bike for linking descents without worrying about how long and steep they are and for keeping on pedalling when the ride gets tough. A bike with an unrivalled riding feel that you can get the most out of, whatever your style.
UNLIMITED
Unlimited means going one step further.
It is the name we reserve for the most exclusive bikes we have ever created. Models produced in very limited numbers and designed to be one-of-a-kind. Crafty Unlimited ICON is the most exclusive expression of our most iconic bike.
Each unit has been created to mark the Crafty’s anniversary and celebrate the model most of our customers have chosen over the last decade. A limited edition accompanied by exclusive features that reinforce this bike’s unique character.
This time, we wanted to create an Unlimited edition worthy of its legacy. An exclusive bike. A Crafty created to celebrate ten years of evolution, ten years of innovation and ten years of a bike that remains the most complete in our entire range.
AN E-BIKE IN THE CENTER OF EVERYTHING
The Crafty has always held a unique place within Mondraker.
It sits right in the middle between our agile, shorter-travel bikes and our most extreme downhill machines. Crafty sits between these two worlds, with 150mm of travel and a platform designed to offer the best possible balance.
That’s why it has become our most popular e-bike and one of the leading names in the e-mtb category. A capable, balanced bike to enjoy whatever trails you like to ride.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing |
| Fork | Öhlins RXF 38 M.3 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX22M.2 185x55mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S9 30mm 0º, Full CNC, 31.8mm barbore |
| Bars | Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Front Brake | Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor |
| Rear Brake | Trickstuff Maxima, 7075 T6 CNC alloy 4 piston caliper, 203mm IS 6 bolts one-piece rotor |
| Brake Lever | Trickstuff Maxima, 7075 T6 CNC alloy, lever pivot bearings, tools-free reach adjust, Kevlar hose |
| Rear Mech | Sram XX Eagle AXS, T-Type, 12s |
| Shifters | Sram Eagle AXS Pod Rocker, 12s |
| Speed | 12 |
| Rims | DT Swiss HXC1200 Carbon Spline 29, 30mm internal width, hookless, tubeless ready, 28 spokes |
| Front Hub | DT 180, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 180, Boost 12x148mm, Ratchet EXP OS 42 system, IS 6 bolts, XD freehub |
| Spokes | DT complite® Hybrid t-head |
| Front Tyre | Maxxis Minion DHF 29x2.5, tubeless ready, 3C MAXX GRIP, EXO+ Protection, 600TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.5 tubeless ready, 3C MAXX TERRA, EXO+ Protection, 60TPI, folding bead |
| Seat Post | RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm |
| Saddle | FIZIK Vento Argo 00 Carbon 150mm |
| Chainset | E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm |
| Chain | Sram XX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1295, 10-52T, T-Type, 12s |
| Battery Size (WH) | Bosch PowerTube 800Wh |
| Motor | Bosch Performance Line CX-R(25Km/h) SMART SYSTEM (BDU386Y) |
| User Interface | Kiox 400 / Bosch Mini Remote |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
