(no reviews)Product ID: 229232

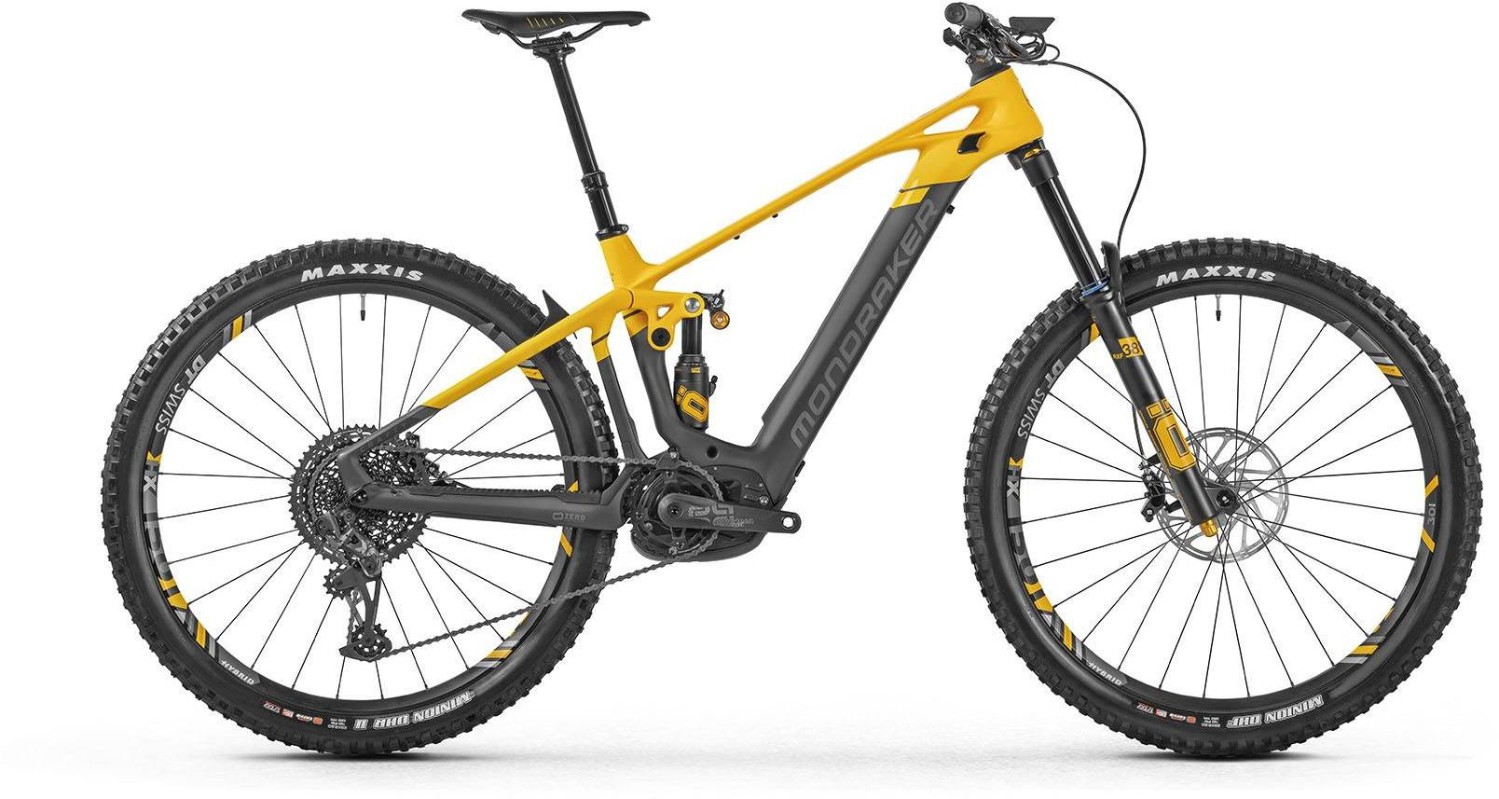

Mondraker Crafty Carbon XR 29" 2021 - Electric Mountain Bike
The 2021 Crafty Carbon XR features the Bosch Performance Line CX G4/PT625Wh Bosch integrated battery system with new software . With 29 wheels it is a fast rolling all-mountain platform which delivers better traction under the added power from the motor to propel you faster, for longer, covering more ground in less time.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle |
| Fork | Öhlins RXF 38 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Headset | Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore |
| Bars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Front Brake | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel- backed metal sintered pads |
| Rear Brake | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel- backed metal sintered pads |
| Brake Lever | SRAM Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Rear Mech | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | DT Swiss HX1501 Spline One 29, 30mm internal width, welded aluminum, tubeless ready, 28 spokes |
| Front Hub | DT 240, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 240, Boost 12x148mm, 24T Ratchet system, IS 6 bolts |
| Spokes | DT Hybrid SP, straightpull |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| Saddle | Fizik Antares R7 |
| Chainset | E.13 E*Spec Plus ebike, 165mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Battery Size (WH) | 625wh |
| Motor | Bosch |
| User Interface | Bosch Kiox |
