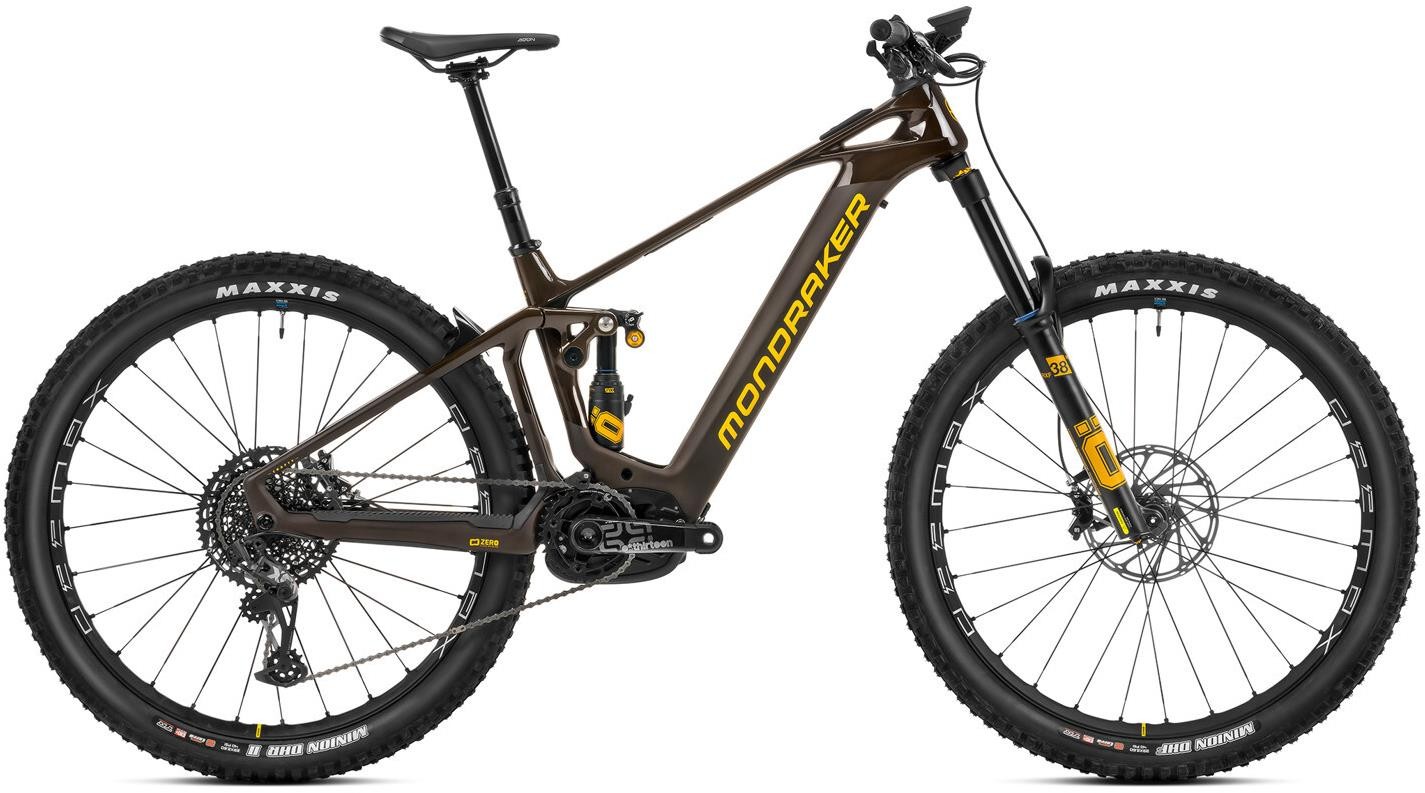

Mondraker Crafty Carbon XR Ltd 2023 - Electric Mountain Bike
The new Mondraker CRAFTY CARBON XR LTD EDITION is a limited edition model, not only because of its limited production or its very special paint job, but also because it’s one of the few models on the market today that comes with Bosch’s new and exclusive Performance Line CX Race motor. A Premium combo of power and exclusivity that make the new CRAFTY CARBON XR LTD stand out from the crowd. With very few available worldwide you're going to have to fight to get your hands on one.
The exclusivity of the CRAFTY CARBON XR LTD is built on the CRAFTY CARBON XR with which it shares most of its specs, with a stand-out Öhlins fork and shock doing the duty of providing the 150mm rear wheel travel, complemented by 170mm up front. Of course, the finish of the frame with the Transparent Amber color, is unique in the CRAFTY CARBON 2023 range and reveals the layers of carbon that form a part of the structure of the frame tubes.
Its Zero system with exclusive ebike specific kinematics, its Forward Geometry offering the best possible geometric balance and its use of the cutting edge construction and manufacturing techniques which go into the super-light Stealth Carbon frame create a totally unique aesthetic among eMTB bicycles currently on the market.
The new Bosch motor is as exclusive as it is powerful. More aggressive, more dynamic and with handlebar gripping acceleration, the Race mode has 400% assist compared to 340% for the Turbo mode on the conventional Performance CX model. Torque remains the same at a hefty 85Nm. The motor, built with magnesium casings, weighs 2,750 grams, exactly 150 grams lighter than the standard Performance Line CX.
One of the key features of the new Bosch Performance Line CX Race motor is the "Race" mode itself, which is one mode above the traditional “Turbo” mode, both of which are configurable through the eBike Flow application, as are overall assistance level, dynamic or initial acceleration, maximum speed and maximum torque settings.
It’s also important to mention that the Race mode has a very unique Extended Boost option, postponing the assistance cutoff for a longer period of time once you’ve stopped pedaling, thus helping you to overcome those uphill trails, technical sections and single-tracks which until now had you beat
As with the other Smart System models in the 2023 CRAFTY range, the CRAFTY CARBON XR LTD comes with the new System Controller (a device integrated into the toptube which lets you turn the motor on and off or even change the assistance mode) and the wireless Mini Remote, located on the left hand side of the handlebar, that can be used to select the assistance mode in the most intuitive way possible. The Kiox 300 external display can also be used to control all of your ride’s data, offering you the widest range of information possible regarding your spectacular CRAFTY CARBON XR LTD.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty Stealth Air full Carbon, ebike-optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, 12x148mm Boost rear axle, tapered head tube, one-piece Monobloc upper link, HHG internal routing system, |
| Fork | Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer, Boost 15x110mm axle, 44mm offset. Settings: high compression with climb mode, low compression, rebound, air preload, tube ramp |
| Rear Shock | Ohlins TTX Air 205X65mm. Settings: high compression lever with "climb" mode (semi-locked), low compression, rebound, air preload. Trunnion top anchor, 25x10mm bottom bushings. |
| Headset | Acros customized for 1-1/2" tube, 40x52x7 angular contact bearings, internal cable guide |
| Stem | ONOFF Krpton FG 30mm, CNC, for 31.8mm handlebars |
| Bars | ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm diameter |
| Rear Mech | SRAM X01 Eagle, Type 3 needle bearing clutch, case lockout, 1x12v, X-ACTUATION 1:1 |
| Shifters | SRAM Trigger GX Eagle, 12v, X-ACTUATION 1:1 |
| Speed | 12 |
| Rims | Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28h |
| Spokes | Mavic straight pull double butted, non-contact spoked spokes |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ casing, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ casing, 120TPI, folding bead |
| Seat Post | ONOFF Internal wiring harness, diameter 31.6mm, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 498x140-170mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Chainset | E*13 TRS Race carbon ebike, 165mm, SRAM X-SYNC 2 Eagle 34, steel, Narrow/Wide, 104 BCD |
| Bottom Bracket | Integrated |
| Chain | SRAM NX Eagle, 12v, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Pedals | Resin Platform |
| Weight | 23.2kg |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance Line CX-Race (25Km/h), Smart System |
| User Interface | Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
