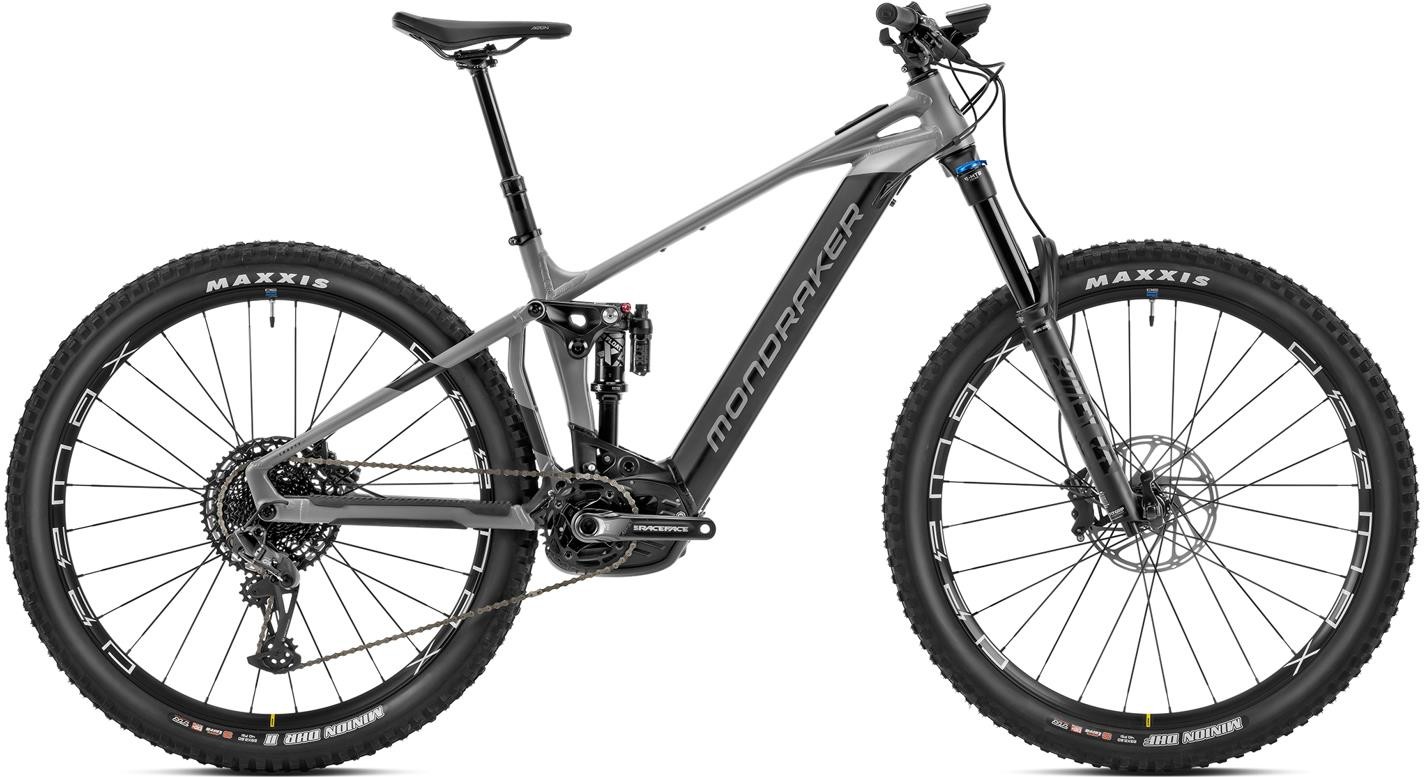

Mondraker Crafty R 2023 - Electric Mountain Bike
- Crafty 6061 alloy stealth evo frame with 150mm travel, internal non-removable battery, boost 12x148mm rear axle, integrated dropout speed sensor.
- Fox 38 29 Float FIT Grip EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, 3 positions with micro adjust compression, low-speed rebound, air preload.
- Fox Float-X LV Performance, 205x65mm, 2 positions compression lever, low-speed rebound, air preload, trunnion top mount, 25x10mm bottom bushings.
- SRAM GX Eagle 12-speed drivetrain, Race Face Aeffect ebike chainset, SRAM SX Eagle chain, SRAM PG-1210 cassette.
- SRAM DB8 4-piston calipers, centerline 200mm rotors, steel-backed organic pads.
- Maxxis Minion DHF 29x2.6 front and Minion DHR II 29x2.6 rear tyres
- The Mondraker Crafty R is available with 0% APR finance
- Motor: Bosch Performance Line CX Cruise (25km/h) Smart System, maximum torque for powerful climbs.
- Battery: Bosch Powertube 750Wh for long-lasting adventures.
- User Interface: Bosch Kiox 300 display, Bosch Mini Remote for convenient control, and Bosch System Controller for integrated functionality.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, oversize 17mm axles, integrated dropout speed sensor |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram DB8, tool-free reach adjust |
| Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | SRAM Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Chainset | Race Face Aeffect ebike, 165mm. Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Bottom Bracket | Integrated |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Cassette | SRAM PG-1210, 11-50T, 12s |
| Pedals | Resin Platform |
| Battery Size (WH) | Bosch PowerTube 750Wh |
| Motor | Bosch Performance Line CX Cruise (25Km/h) Smart System |
| User Interface | Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller |
Crafty eBike Sizing
See the table below to find the right size Mondraker Crafty Electric Bike.
|
|
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
|
Crafty eBike Geometry
|
|
Frame Size |
Small |
Medium |
Large |
X Large |
|
A |
Seat Tube Length |
380 |
420mm |
470mm |
500mm |
|
B |
Top Tube Length |
615mm |
642mm |
667mm |
690mm |
|
C |
Bottom Bracket Drop |
-19mm |
-19mm |
-19mm |
-19mm |
|
D |
Bottom Bracket Height |
337mm |
337mm |
337mm |
337mm |
|
E |
Chain Stay Length |
475mm |
475mm |
475mm |
475mm |
|
F |
Seat Tube Angle, Actual |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
|
G |
Seat Tube Angle, Effective |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
|
H |
Head Tube |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
|
I |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
|
J |
Wheelbase |
1242mm |
1276mm |
1304mm |
1328mm |
|
K |
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
|
L |
Reach |
442mm |
467mm |
487m |
507mm |
|
M |
Stack |
605mm |
624mm |
642mm |
652mm |
