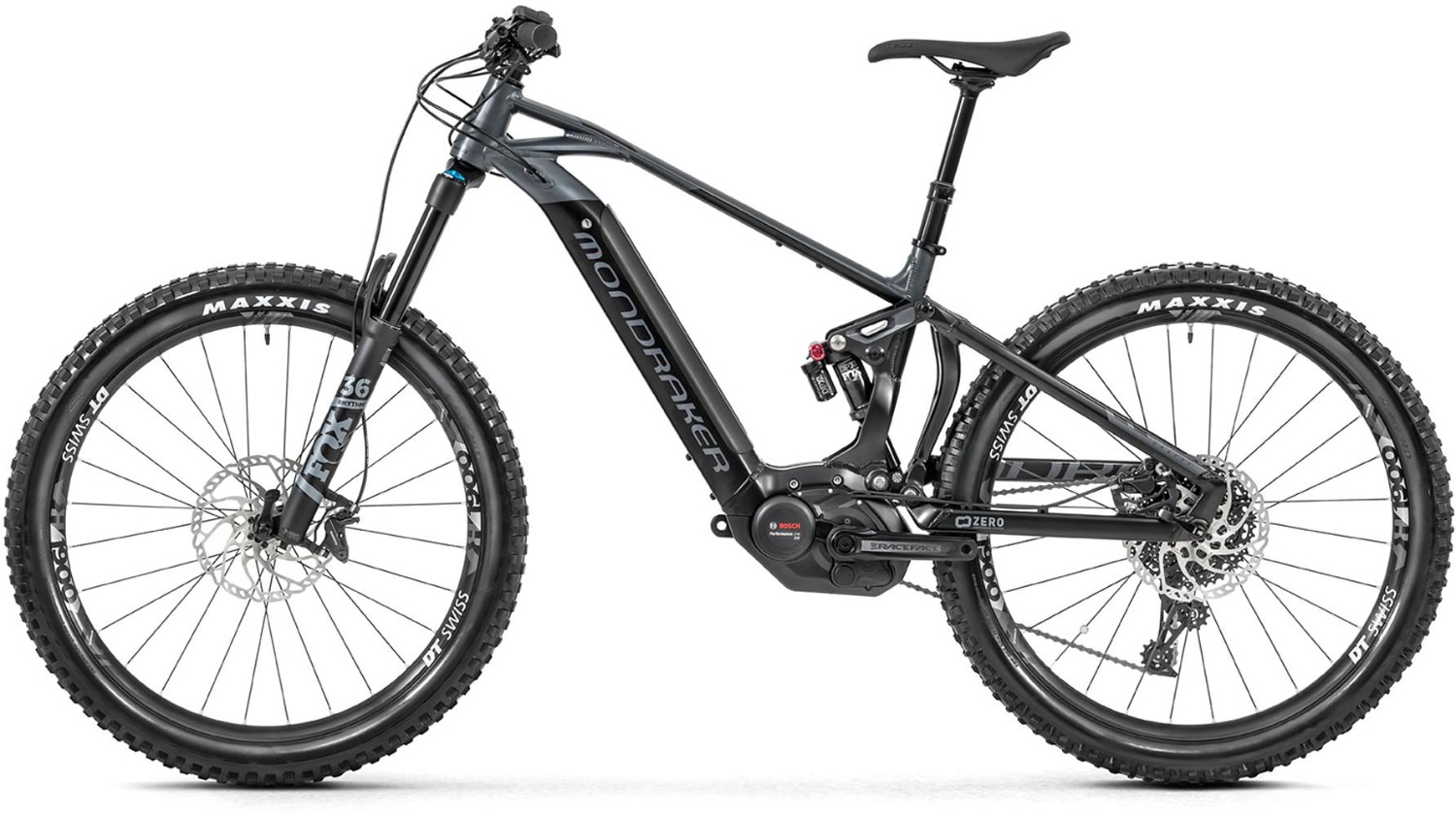

Mondraker Crafty R+ 27.5"+ 2019 - Electric Mountain Bike
Ride further and have more fun with less effort. The Mondraker Crafty R+ is an electric mountain bike that is ideal for all types of MTB trail riding. With 160mm suspension travel up front and 150mm on the rear combined with a powerful Bosch CX motor you will be able to fly up the climbs and have more time on the descents.
Key Features:
- Aluminium alloy frame with Zero Suspension System for a refined ride
- Fox 36 Rhythm GRIP fork offers 160mm travel with e bike optimized tune
- Fox DPX2 shock controls the 150mm of rear wheel travel
- SRAM NX 1x11 speed drivetrain with a wide range cassette
- Powerful dual piston Shimano disc brakes for confident speed control
- Sizes: Small, Medium, Large, X Large
- Colour: Black/Grey
- The Mondraker Crafty R+ is avail able with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX, 250w
- Battery: 500Wh Bosch PowerTube
- User Interface/remote: Bosch Purion on-board computer
The 2019 e-Crafty (now known as the Crafty) is the third generation of Mondraker's best-selling full suspension e-MTB. Featuring the Bosch integrated PowerTube 500Wh battery powering the Performance Line CX motor. The Stealth Alloy frame has updated Zero Suspension kinematics with 150mm of rear travel. With 27.5+ wheels it is fast rolling all-mountain platform running larger tyres which deliver better traction under the added power from the motor to propel you faster, for longer, covering more ground in less time.
The e-Crafty R+ runs on all new suspension for 2019, featuring Fox 36 Rhythm GRIP e-bike optimized forks and a Fox DPX2 LV Performance Trunnion mounted rear shock. Further improvements include a DT Swiss wheelset and an 11 Speed SRAM drivetrain, which are great additions for versatile all mountain riding.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Crafty eBike Sizing
See the table below to find the right size Mondraker Crafty Electric Bike.
|
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
|
Crafty eBike Geometry
|
Frame Size |
Small |
Medium |
Large |
X Large |
A |
Seat Tube Length |
380 |
420mm |
470mm |
500mm |
B |
Top Tube Length |
615mm |
642mm |
667mm |
690mm |
C |
Bottom Bracket Drop |
-19mm |
-19mm |
-19mm |
-19mm |
D |
Bottom Bracket Height |
337mm |
337mm |
337mm |
337mm |
E |
Chain Stay Length |
475mm |
475mm |
475mm |
475mm |
F |
Seat Tube Angle, Actual |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
G |
Seat Tube Angle, Effective |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
H |
Head Tube |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
I |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
J |
Wheelbase |
1242mm |
1276mm |
1304mm |
1328mm |
K |
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
L |
Reach |
442mm |
467mm |
487m |
507mm |
M |
Stack |
605mm |
624mm |
642mm |
652mm |
