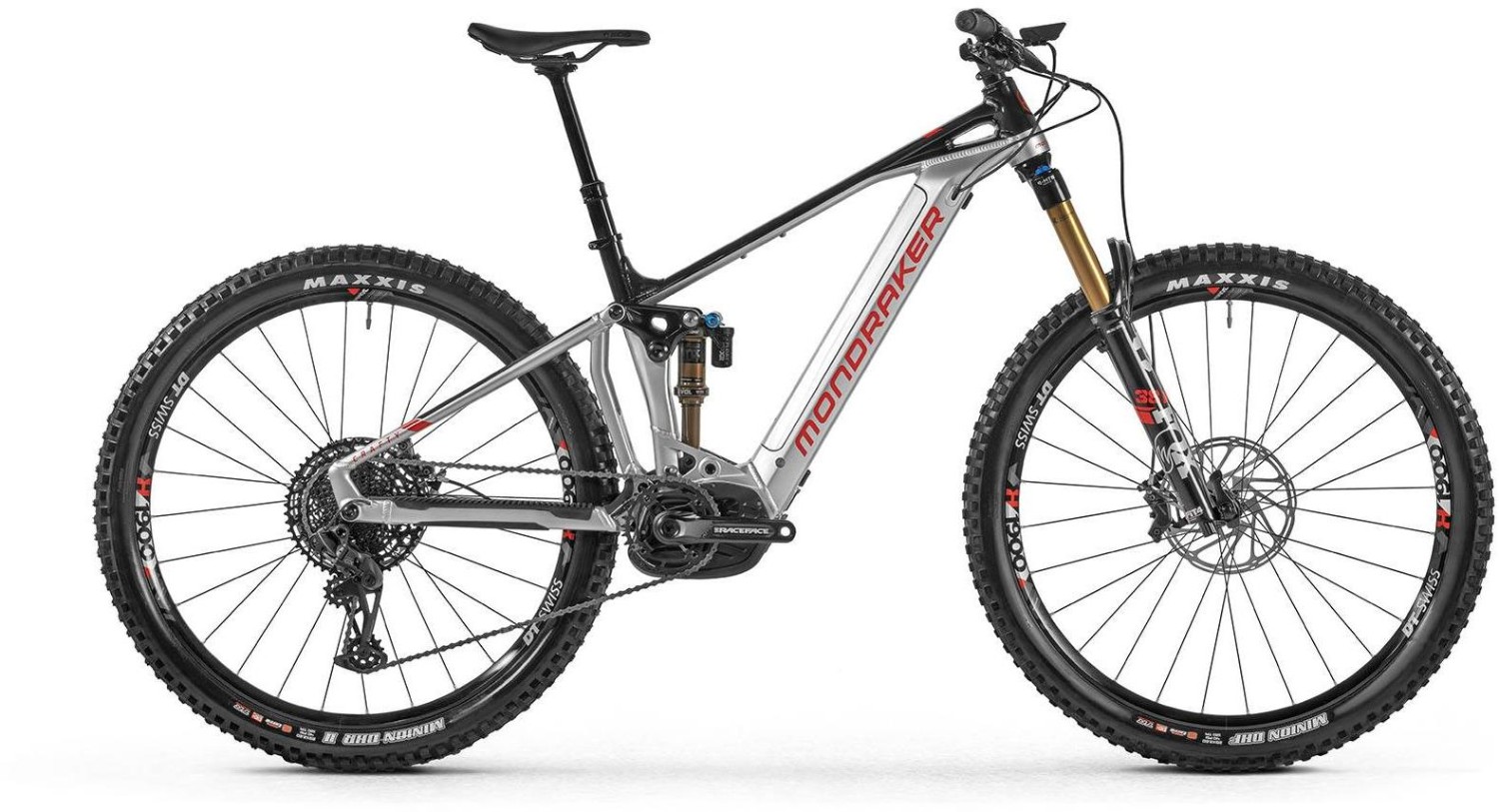

Mondraker Crafty RR 29" 2021 - Electric Mountain Bike
The 2021 Crafty RR Alloy features the Bosch Performance Line CX G4/PT625Wh Bosch integrated battery system with new software . With 29 wheels it is a fast rolling all-mountain platform which delivers better traction under the added power from the motor to propel you faster, for longer, covering more ground in less time.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle |
| Fork | Fox 38 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float DPX2 LV EVOL Factory Kashima, 205x65mm. Settings: compression 3 positions lever, low- speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45° |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Bars | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Front Brake | SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever | SRAM Code R, tool-free reach adjust |
| Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| Front Hub | DT 370, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 370, Boost 12x148mm, 3 Pawl system, IS 6 bolts |
| Spokes | DT Hybrid SP, straightpull |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| Saddle | SDG BEL-AIR 3.0, EVA foam, Alloy rails |
| Chainset | Race Face Aeffect ebike, 165mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1230, 11-50T, 12s |
| Battery Size (WH) | 625wh |
| Motor | Bosch |
| User Interface | Bosch Kiox |
Mondraker Crafty Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
