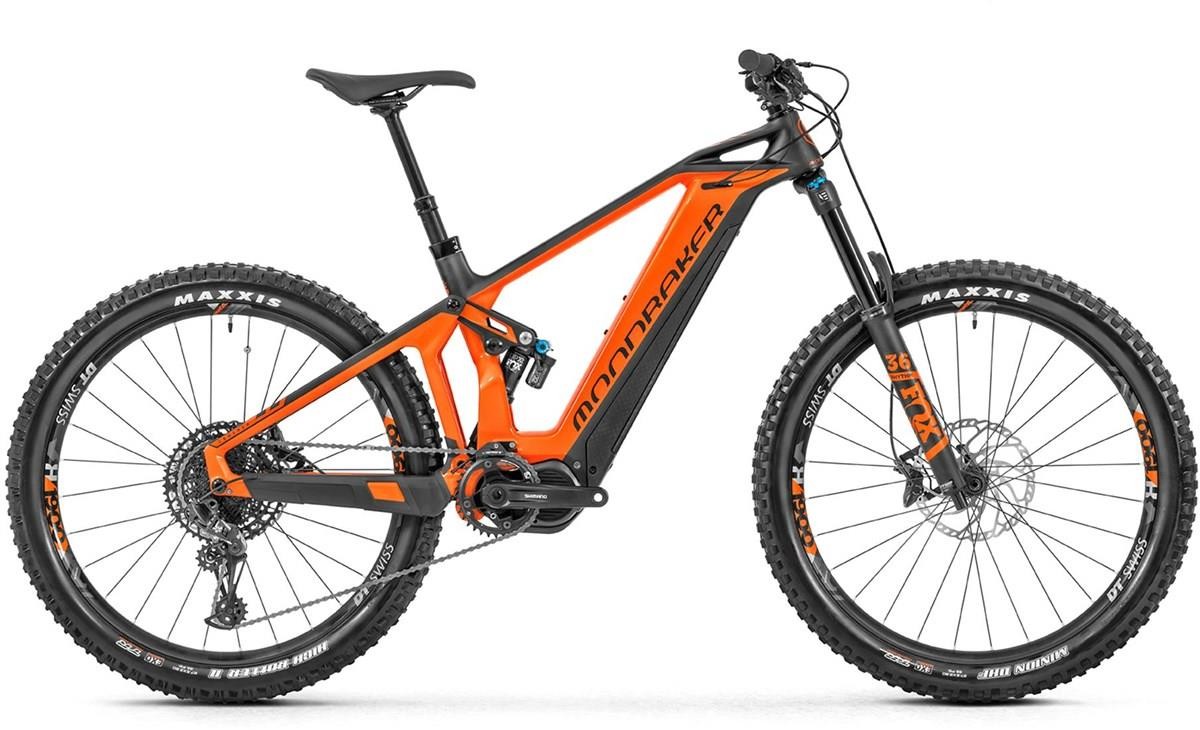

Mondraker Crusher R+ 27.5"+ - Nearly New - L 2019 - Electric Mountain Bike
This Mondraker Crusher electric bike is in excellent condition. Having never been ridden, it is showing no signs of mechanical wear. However, it has some cosmetic imperfections on the top tube.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12 month Tredz warranty, plus any additional manufacturer warranty which may apply.
Forget all of the electric mountain bike concepts that you've know until now. The updated Mondraker e-Crusher Carbon changes the rules for high-performance e-MTB's. At its heart beats a Shimano Steps E-8000 motor which is encased elegantly within a ground breaking full Stealth Carbon frame delivering a stiff, powerful performance package. For 2019 the e-Crusher has been upgraded to the brand new e-bike specific SRAM NX Eagle 12 speed drivetrain.
Running all new suspension for 2019, with Fox 36 Rhythm e-Bike optimized forks and a Trunnion mounted Fox DPX2 LV performance rear shock delivers 150mm of rear wheel travel while leaving room for a bottle cage to be mounted on the downtube.
Keeping the bike planted on the trail so riders can truly exploit its full travel and potential is a DT Swiss Hybrid 27.5+ wheelset complete with Maxxis 2.8" tyres, bolted with stiff Boost axle's front and rear.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crusher Carbon 27.5"+ Stealth Zero Suspension System FG 150mm |
| Fork | Fox 36 27.5"+ Rhythm GRIP e-Bike Optimized Boost 160mm |
| Rear Shock | Fox DPX2 LV Evol 3Pos Lever Performance 205x62.5mm Trunnion |
| Headset | Onoff Saturn ACB Bearings integrated tapered 1-1/8"->1/5" |
| Stem | Onoff Stoic FG 30mm |
| Bars | Mondraker custom design 1.0 780mm |
| Front Brake | Shimano MT-520 203mm, 4 Piston Caliper |
| Rear Brake | Shimano MT-520 203mm, 4 Piston Caliper |
| Brake Lever | Shimano MT-520 |
| Rear Mech | SRAM NX Eagle X-Horizon 12s |
| Shifters | SRAM NX Eagle X-Actuation Single Shift 12s |
| Speed | 12 |
| Rims | DT Swiss Hybrid H1900 Spline 35mm |
| Front Hub | DT Swiss Hybrid Spline 370s based 15x110mm |
| Rear Hub | DT Swiss Hybrid Spline 370s based Pawl System 12x148mm |
| Spokes | Hybrid System Specific SP Spoke |
| Front Tyre | Maxxis Minion DHF TR Exo 27.5x2.8" |
| Rear Tyre | High Roller II TR Exo 27.5x2.8" |
| Seat Post | OnOff Dropper Pija Internal Universal Lever |
| Chainset | Shimano E8000 Drive Unit/BT-E8020 504Wh Integrated Battery/FC-E8000 Crankset 34T 165mm |
| Chain | SRAM NX EAGLE 12s |
| Cassette | SRAM Eagle XG1230 11-50T 12s |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 504 Wh |
| Motor | Shimano |
| User Interface | N/A |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
