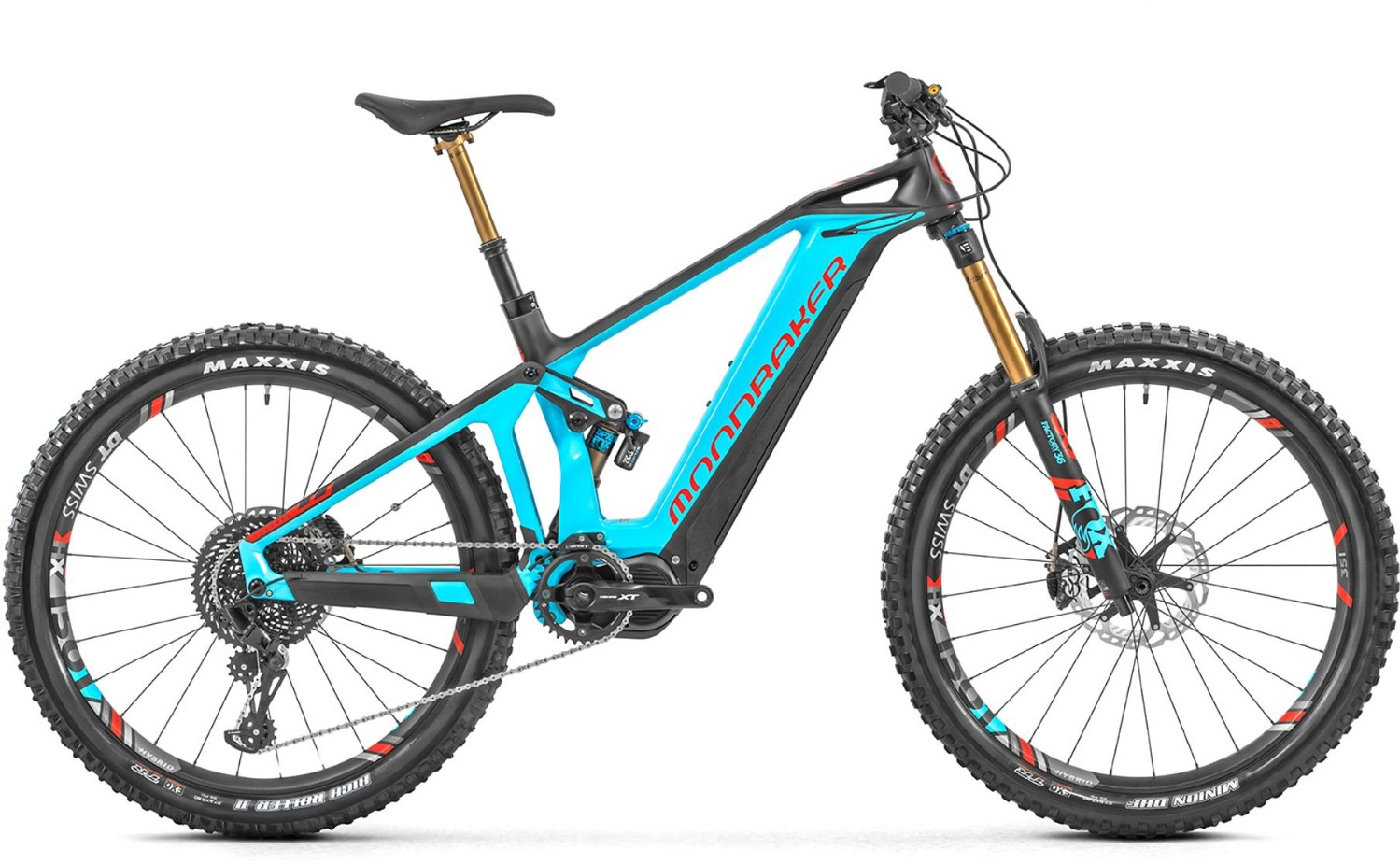

Mondraker Crusher XR+ 27.5"+ 2019 - Electric Mountain Bike

For the very best hard-hitting e bike performance. The Mondraker Crusher XR+ is an electric mountain bike that is built around a new carbon fibre frame and features the powerful and reliable Shimano Steps mountain bike motor and integrated battery pack. With Fox Factory suspension and SRAMs dedicated e bike drivetrain, this is an eMTB that is hard to beat.
Key Features:
- Aluminium alloy frame with Zero Suspension System for a refined ride
- Fox 36 Fit GRIP2 Factory fork offers 170mm travel with e bike optimized tune
- Fox DPX2 shock controls the 150mm of rear wheel travel
- SRAM EX1 X-Horizon 8 speed e bike specific drivetrain for more reliable gear shifting
- Powerful Shimano Saint disc brakes for confident speed control
- Sizes: Small, Medium, Large, X Large
- Colour: Carbon/Blue
- The Mondraker Crusher XR+ is available with 0% APR finance
Drive Information:
- Motor: Shimano E8000 Drive Unit, 250w
- Battery: 504Wh Integrated Shimano Battery
- User Interface/remote: Shimano handlebar mounted
Forget all of the electric mountain bike concepts that you've know until now. The updated Mondraker e-Crusher Carbon changes the rules for high-performance e-MTB's. At its heart beats a Shimano Steps E-8000 motor which is encased elegantly within a ground breaking full Stealth Carbon frame delivering a stiff, powerful performance package. For 2019 the e-Crusher has been upgraded to the brand new e-bike specific SRAM EX1 Eagle 8 speed drivetrain.
Running all new extreme racing suspension for 2019 with Fox 36 Factory GRIP2 170mm travel e-Bike optimized forks and a Trunnion mounted Fox DPX2 LV factory rear shock delivering 150mm of rear wheel travel while leaving room for a bottle cage to be mounted on the downtube.
Keeping the bike planted on the trail so riders can truly exploit its full travel and potential is a DT Swiss Hybrid 27.5+ wheelset complete with Maxxis 2.8" tyres, bolted with stiff Boost axle's front and rear.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crusher Carbon 27.5"+ Stealth Zero Suspension System FG 150mm |
| Fork | Fox 36 27.5"+ FIT GRIP2 Factory Kashima e-Bike Optimized Boost 170mm |
| Headset | Onoff Saturn ACB Bearings integrated tapered 1-1/8"->1/5" |
| Stem | OnOff Stoic FG 30mm, 35mm Ø |
| Bars | OnOff Stoic Carbon 0.5 780mm 35mm Ø |
| Front Brake | Shimano Saint 203mm |
| Rear Brake | Shimano Saint 203mm |
| Brake Lever | Shimano Saint |
| Rear Mech | SRAM EX1 X-Horizon 8s |
| Shifters | SRAM EX1 X-Actuation Single Shift 8s |
| Speed | 8 |
| Rims | DT Swiss HX 1501 Spline One 35mm |
| Front Hub | DT Swiss Hybrid Spline 240s based 15X110mm |
| Rear Hub | DT Swiss Hybrid Spline 240s based 24t Rachet 12x148mm |
| Spokes | Hybrid System Specific SP Spoke |
| Front Tyre | Maxxis Minion DHF TR Exo 27.5x2.8" |
| Rear Tyre | High Roller II TR Exo 27.5x2.8" |
| Seat Post | Fox Transfer Factory Kashima Internal 31.6m 100/125/150mm |
| Chainset | Shimano E8000 Drive Unit/BT-E8020 504Wh Integrated Battery/FC-E8050 XT Hollowtech Crankset 34T 165mm |
| Chain | SRAM PC EX1 e-Bike Specific |
| Cassette | SRAM XG899 11-48T 8s |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 504 Wh |
| Motor | Shimano |
| User Interface | N/A |
Crusher XR+ Sizing
See the table below to find the right size Crusher XR+ Electric Bike.
|
Height |
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
|
Crusher XR+ Geometry
|
Frame Size |
Small |
Medium |
Large |
X Large |
|
Seat Tube Length |
380mm |
420mm |
470mm |
500mm |
|
Top Tube Length |
608mm |
636mm |
658mm |
684mm |
|
Bottom Bracket Drop |
-13mm |
-13mm |
-13mm |
-13mm |
|
Bottom Bracket Height |
347mm |
347mm |
347mm |
347mm |
|
Chain Stay Length |
450mm |
450mm |
450mm |
450mm |
|
Seat Tube Angle, Actual |
69 Degrees |
69 Degrees |
69 Degrees |
69 Degrees |
|
Seat Tube Angle, Effective |
74 Degrees |
74 Degrees |
74 Degrees |
74 Degrees |
|
Head Tube |
66 Degrees |
66 Degrees |
66 Degrees |
66 Degrees |
|
Fork Offset |
44mm |
44mm |
44mm |
44mm |
|
Wheelbase |
1199mm |
1224mm |
1250mm |
1279mm |
|
Head Tube Length |
100mm |
100mm |
115mm |
130mm |
|
Reach |
443mm |
460mm |
480m |
500mm |
|
Stack |
614mm |
614mm |
628mm |
642mm |
