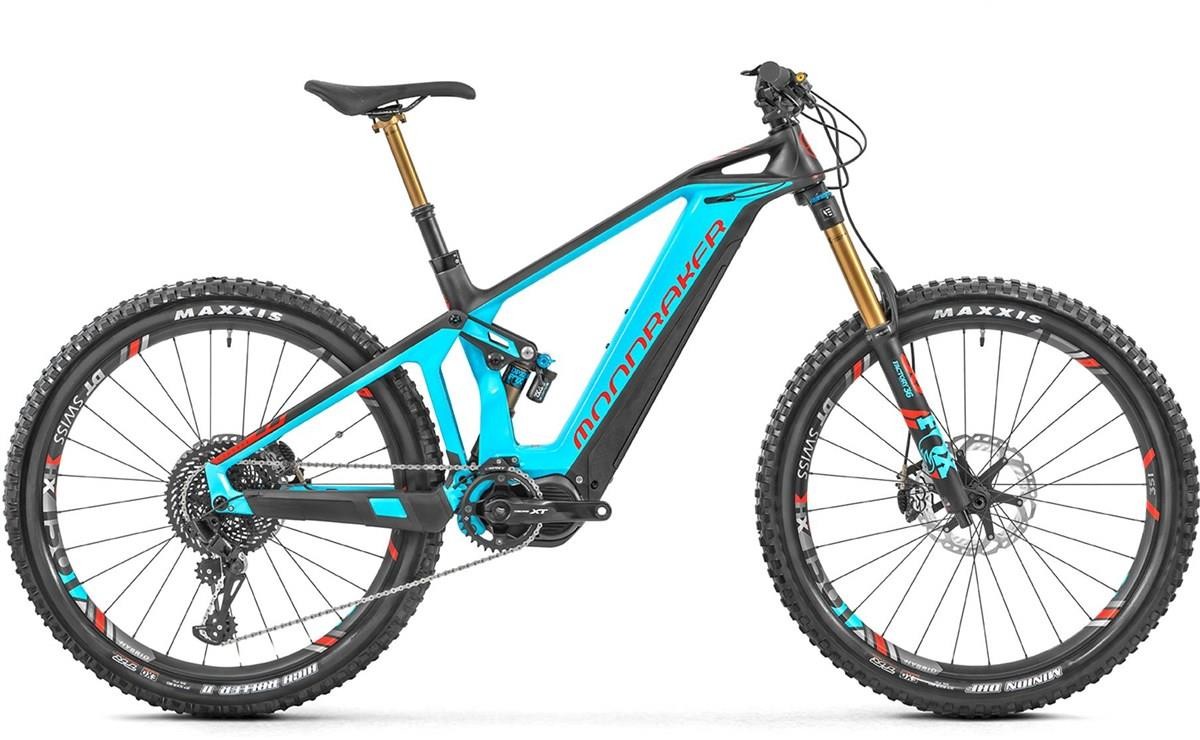

Mondraker Crusher XR+ 27.5"+ - Nearly New - M 2019 - Electric Mountain Bike
This Mondraker Crusher electric mountain bike is in great condition. However, having been lightly used, there are some small signs of mechanical wear on the frame overall . Cosmetically, the bike also has some damage on the rear stay, fork crown and head tube.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12 month Tredz warranty, plus any additional manufacturer warranty which may apply.
Forget all of the electric mountain bike concepts that you've know until now. The updated Mondraker e-Crusher Carbon changes the rules for high-performance e-MTB's. At its heart beats a Shimano Steps E-8000 motor which is encased elegantly within a ground breaking full Stealth Carbon frame delivering a stiff, powerful performance package. For 2019 the e-Crusher has been upgraded to the brand new e-bike specific SRAM EX1 Eagle 8 speed drivetrain.
Running all new extreme racing suspension for 2019 with Fox 36 Factory GRIP2 170mm travel e-Bike optimized forks and a Trunnion mounted Fox DPX2 LV factory rear shock delivering 150mm of rear wheel travel while leaving room for a bottle cage to be mounted on the downtube.
Keeping the bike planted on the trail so riders can truly exploit its full travel and potential is a DT Swiss Hybrid 27.5+ wheelset complete with Maxxis 2.8" tyres, bolted with stiff Boost axle's front and rear.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Crusher Carbon 27.5"+ Stealth Zero Suspension System FG 150mm |
| Fork | Fox 36 27.5"+ FIT GRIP2 Factory Kashima e-Bike Optimized Boost 170mm |
| Headset | Onoff Saturn ACB Bearings integrated tapered 1-1/8"->1/5" |
| Stem | OnOff Stoic FG 30mm, 35mm Ø |
| Bars | OnOff Stoic Carbon 0.5 780mm 35mm Ø |
| Front Brake | Shimano Saint 203mm |
| Rear Brake | Shimano Saint 203mm |
| Brake Lever | Shimano Saint |
| Rear Mech | SRAM EX1 X-Horizon 8s |
| Shifters | SRAM EX1 X-Actuation Single Shift 8s |
| Speed | 8 |
| Rims | DT Swiss HX 1501 Spline One 35mm |
| Front Hub | DT Swiss Hybrid Spline 240s based 15X110mm |
| Rear Hub | DT Swiss Hybrid Spline 240s based 24t Rachet 12x148mm |
| Spokes | Hybrid System Specific SP Spoke |
| Front Tyre | Maxxis Minion DHF TR Exo 27.5x2.8" |
| Rear Tyre | High Roller II TR Exo 27.5x2.8" |
| Seat Post | Fox Transfer Factory Kashima Internal 31.6m 100/125/150mm |
| Chainset | Shimano E8000 Drive Unit/BT-E8020 504Wh Integrated Battery/FC-E8050 XT Hollowtech Crankset 34T 165mm |
| Chain | SRAM PC EX1 e-Bike Specific |
| Cassette | SRAM XG899 11-48T 8s |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 504 Wh |
| Motor | Shimano |
| User Interface | N/Z |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
