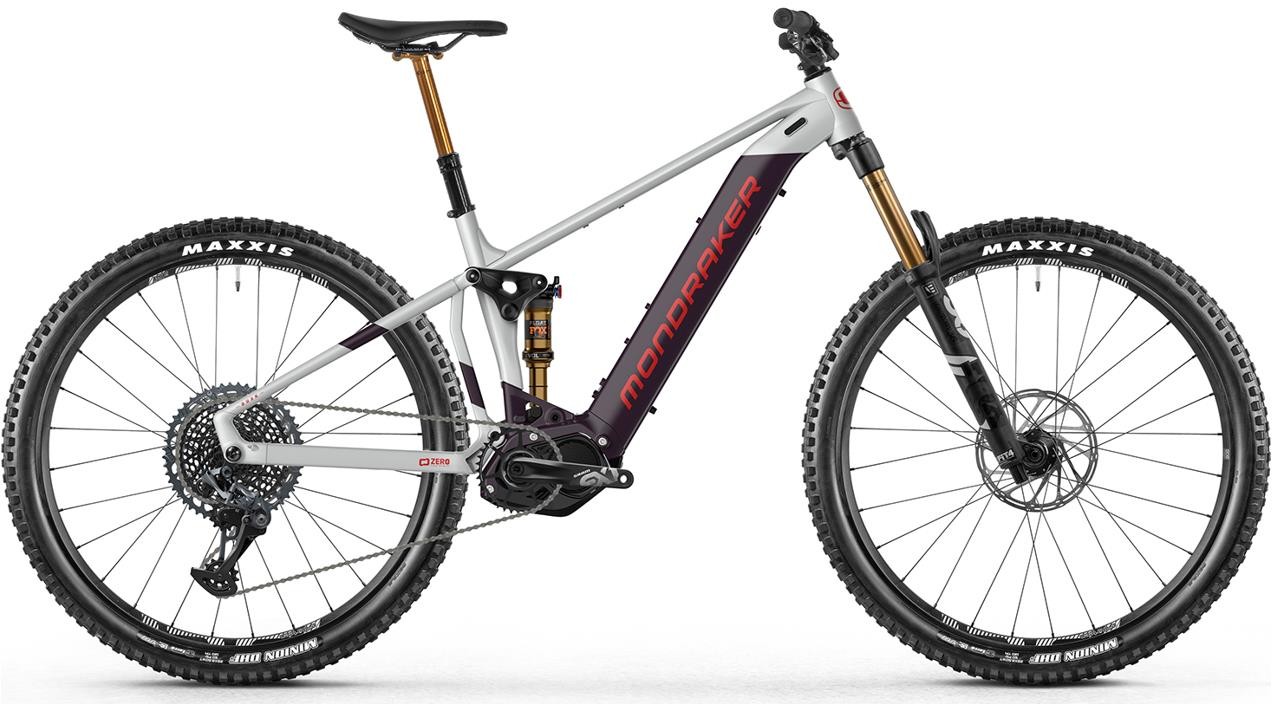

Mondraker Dusk RR SE 29" 2022 - Electric Mountain Bike
...any and all of the Mondraker Dusk e-bike versions offer what you’re looking for. With the possibility of taking your battery power all the way up to 990 Wh (using a range-extender battery) you can ride all day long (and probably most of the night too) taking full advantage of our Shimano-motor equipped Enduro bikes. The Dusk RR has 160mm of front wheel travel with 150mm at the back, with its ZERO SUSPENSION SYSTEM specific to this range of ebikes. The combination of the STEALTH ALLOY EVO aluminum frame, its 29" wheels and high-end components will help you get the most out of every ride (as long as your legs can keep up).
Key features:
- Dusk 6061 Alloy Stealth Evo frame
- Fox 36 29 Float forks with 160mm of bump soaking travel
- Fox Float DPS shock takes care of the 150mm of rear travel
- Sram GX Eagle 1x12 gears give you the range to climb anything
- Sram Code brakes offer all weather stopping power
- Sizes: S, M, L, XL
- Colours: Purple / Dark Grey
- The Mondraker Dusk RR SE is available with 0% APR finance
Drive Information:
- Motor: Shimano STEPS EP800
- Battery: Simplo internal 630Wh
- Interface: Shimano STEPS E8000
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Dusk 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, |
| Fork | Fox 36 29 Float FIT4 EVOL Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float DPS LV EVOL Performance, 205x65mm. Settings: Compression 3 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings |
| Stem | Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8mm barbore |
| Bars | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Front Brake | SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | SRAM Code R, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever | SRAM Code R, tool-free reach adjust |
| Rear Mech | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| Front Hub | DT 370, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 370, Boost 12x148mm, Ratchet LN system, IS 6 bolts |
| Spokes | DT Hybrid SP, straightpull |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Seat Post | Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x170mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Chainset | FSA, 165mm, Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Battery Size (WH) | Simplo internal 630Wh |
| Motor | Shimano STEPS EP800 |
| User Interface | Shimano STEPS E8000 |
Dusk 2022 Sizing
| Size | Height |
| Small | 160-170cm |
| Medium | 167-180cm |
| Large | 175-187cm |
| X Large | 185-195cm |
Dusk 2022 Geometry
| Size | S | M | L | XL |
| Seattube length | 380 mm | 420 mm | 450 mm | 490 mm |
| Toptube length | 605 mm | 625 mm | 650 mm | 670 mm |
| Bottom bracket drop | -25 mm | -25 mm | -25 mm | -25 mm |
| Bottom bracket height | 350 mm | 350 mm | 350 mm | 350 mm |
| Chainstay length | 455 mm | 455 mm | 455 mm | 455 mm |
| Seat tube angle | 73,5° | 73,5° | 73,5° | 73,5° |
| Effective seattube angle | 76° | 76° | 76° | 76° |
| Headtube angle | 65,5° | 65,5° | 65,5° | 65,5° |
| Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| Wheelbase | 1225 mm | 1245 mm | 1265 mm | 1285 mm |
| Headtube length | 110mm | 110mm | 130mm | 130 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Stack | 622 mm | 622 mm | 640 mm | 640 mm |
Read our bike size guide for more information on sizing.
