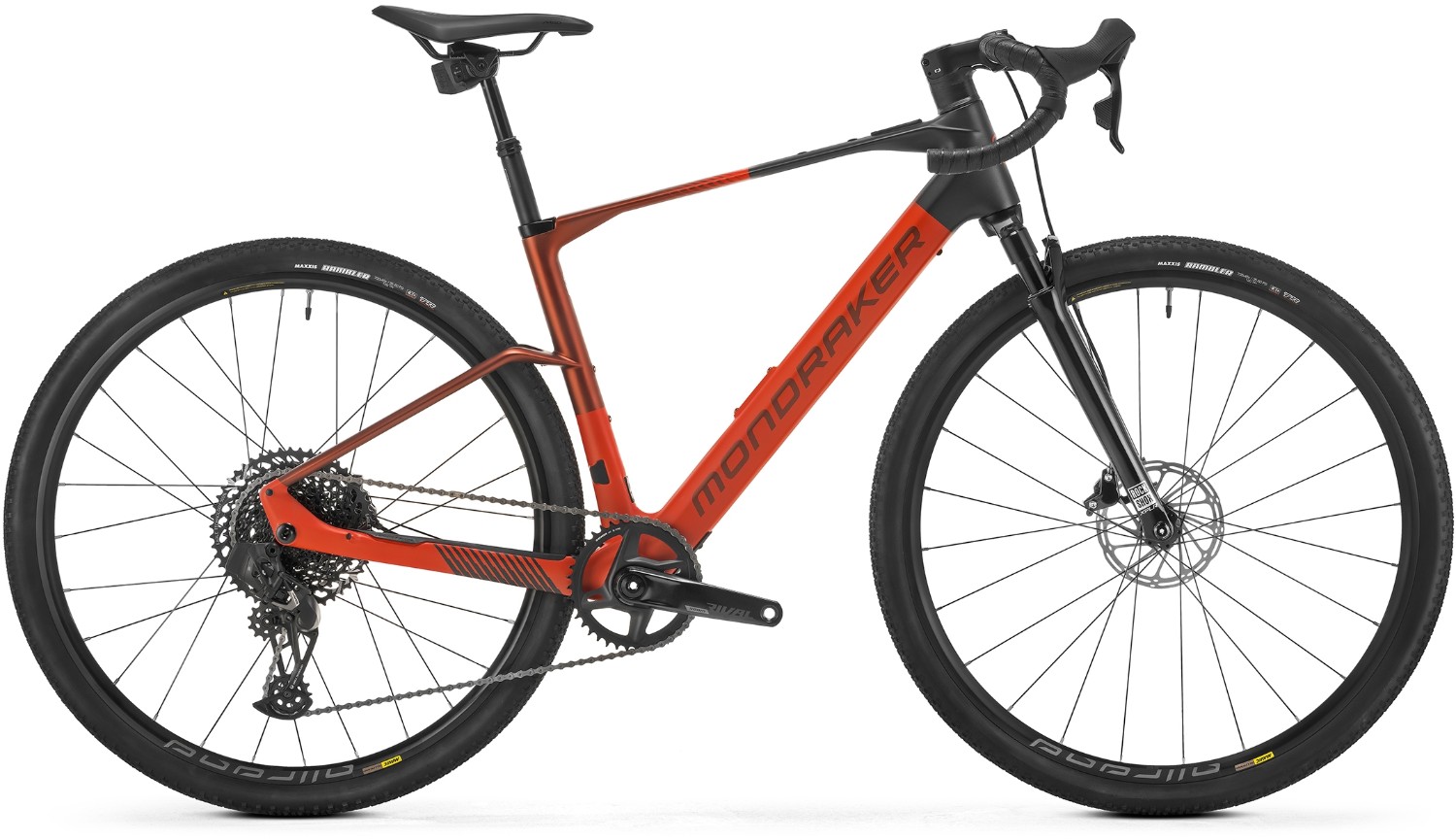

Mondraker Dusty RR 2025 - Gravel Bike
The Mondraker Dusty RR combines mountain bike DNA with road-bike speed. At its core is a Stealth Air Carbon frame with clean internal routing and an integrated Mahle battery, offering modern geometry, smart integration, and room for up to 45mm tyres. The frame’s compliance and tuned carbon layup absorb vibration, while a dropout speed sensor ensures accurate assistance.
Key Features:
- Stealth Air Carbon frame with integrated battery, cable routing and speed sensor
- RockShox Rudy Ultimate fork with 40mm travel and 45mm offset for off-road capability
- SRAM X1 Eagle AXS & Rival eTap AXS 12-speed wireless drivetrain for fast, crisp shifting
- SRAM Rival eTap AXS hydraulic disc brakes with 160mm rotors for powerful, reliable braking
- Mavic Allroad Disc UST wheels with Infinity hubs, 25mm internal width
- Maxxis Rambler 700x45c tyres with EXO protection and dual compound tread
- RockShox Reverb AXS dropper post and carbon cockpit for control and comfort
- Available with 0% APR finance
Drive Information:
- Motor: Mahle X20 rear hub motor with 55Nm max torque
- Battery: Integrated Mahle IX350Wh battery for extended gravel support
- User Interface: Pulsar One Wireless display with bar-mounted remote control
The RockShox Rudy Ultimate fork adds 40mm of smooth travel—ideal for taming chunky gravel and forest trails. Wireless SRAM shifting comes courtesy of a Rival eTap AXS lever and X1 Eagle AXS rear mech, paired to a wide-range 10-52T cassette that handles steep climbs with ease. Braking is handled by SRAM Rival hydraulic disc brakes with 160mm rotors, offering dependable performance on fast descents and unpredictable surfaces.
A Mavic Allroad Disc wheelset keeps the ride light and responsive, and Maxxis Rambler 700x45c tyres deliver grip and comfort with their tubeless-ready EXO casing. For added control on technical terrain, the RockShox Reverb AXS dropper post gives you the flexibility to adjust saddle height on the fly—wirelessly.
The Mahle X20 drive system adds just the right amount of power. Lightweight and unobtrusive, the 55Nm hub motor offers smooth, natural-feeling assistance controlled via the Pulsar One Wireless display. With a 350Wh battery tucked neatly into the frame, the Dusty RR balances performance and aesthetics without compromise.
Whether you're riding gravel races, tackling remote bridleways or simply heading further into the unknown, the Mondraker Dusty RR delivers speed, comfort and confidence—with a little extra boost when you need it most.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, integrated dropout speed sensor. |
| Fork | RockShox Rudy Ultimate, 40mm travel, 12x100mm maxle stealth, 45mm offset |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Stem | OnOff S3 GR 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm |
| Bars | OnOff S9 GR CARBON 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm |
| Front Brake | Sram Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Rival, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever |
| Rear Mech | Sram X1 Eagle AXS,12s, |
| Shifters | Sram Rival Etap AXS 12s, single click |
| Speed | 12 |
| Rims | Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Spokes | Mavic Steel double butted flat spokes |
| Front Tyre | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tyre | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Seat Post | RockShox Reverb XPLR AXS 75mm wireless 27.2X400mm dropper post |
| Saddle | FIZIK Terra Argo X7 150mm |
| Chainset | SRAM Rival 1 GLS Wide, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm. Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
| Bottom Bracket | Mahle DUB pressfit, sealed bearings, w/ torque sensor |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Battery Size (WH) | Mahle X20 IX350Wh |
| Motor | Mahle X20 Drive Unit |
| User Interface | Pulsar One Wireless |
Mondraker Dusty X Unlimited Gulf 2025 Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
Mondraker Dusty X Unlimited Gulf 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 548 | 576 | 595 | 628 |
| Reach | 393 | 405 | 424 | 440 |
| Head Tube Length | 125 | 135 | 155 | 175 |
| Head Tube Angle | 70° | 70° | 70° | 70° |
| Seat Tube Length | 440 | 460 | 500 | 530 |
| Seat Tube Angle | 74° | 74° | 74° | 74° |
| Wheelbase | 1034 | 1056 | 1082 | 1110 |
| Top Tube Length (horizontal) | 550 | 570 | 595 | 620 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Fork Offset | 45 | 45 | 45 | 45 |
| Fork Height | 420 | 420 | 420 | 420 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
