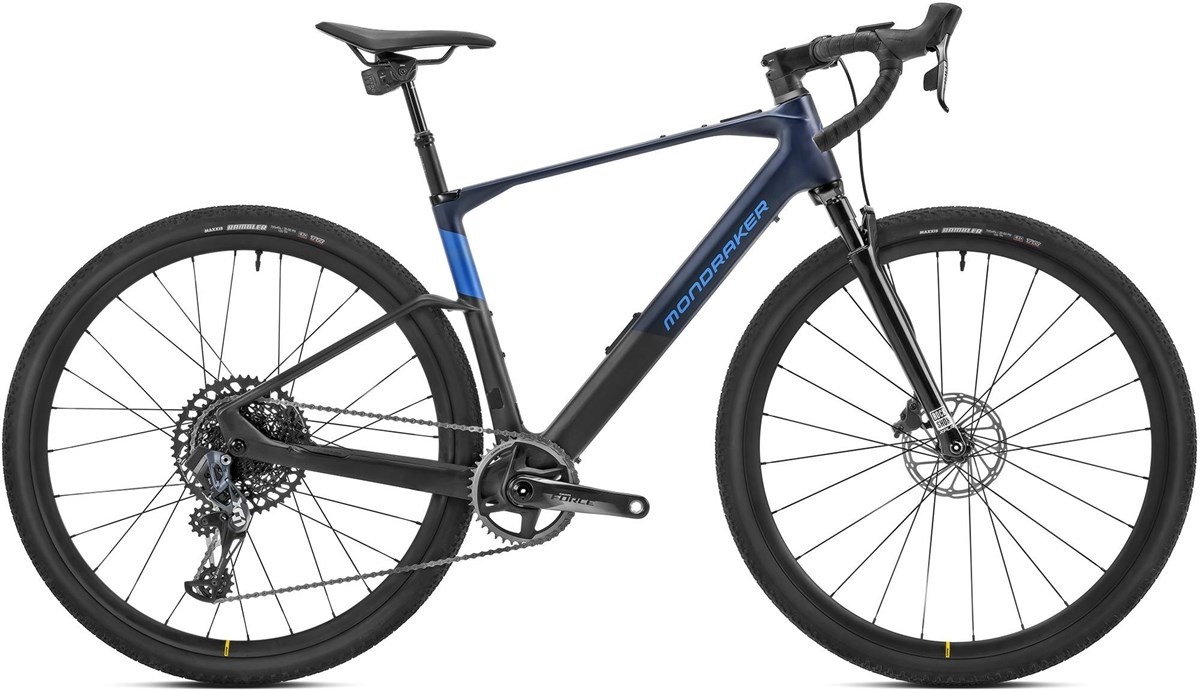

Mondraker Dusty XR - Nearly New – L 2023 - Electric Gravel Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Dusty Stealth Air Carbon, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. |
| Fork | RockShox Rudy Ultimate, 40mm travel, 12x100mm maxle stealth, 45mm offset |
| Headset | OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 70mm, size L: 80mm, XL: 90mm |
| Bars | OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm |
| Front Brake | Sram Force Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Force Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Force, contact point adjustment, tooled reach adjust, plastic levers |
| Rear Mech | Sram X01 Eagle AXS, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | Sram Force Etap AXS 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | Mavic Allroad Pro Carbon SL Disc, UST, 23mm internal width, hookless, infinity hubs, 24 spokes |
| Front Hub | Mavic, 12x100mm, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, XDR freehub |
| Spokes | Steel double butted flat spokes |
| Front Tyre | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Rear Tyre | Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Seat Post | RockShox Reverb XPLR AXS 75mm wireless 27.2X400mm dropper post |
| Saddle | FIZIK Terra Argo X7 150mm |
| Chainset | Sram Force 1 Carbon GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm.. Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
| Bottom Bracket | Mahle DUB pressfit, sealed bearings, w/ torque sensor |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1275, 10-52T, 12s |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle X20 IX350Wh |
| Motor | Mahle X20 Drive Unit |
| User Interface | Pulsar One Wireless |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Mondraker Dusty XR - Nearly New – L 2023 - Electric Gravel Bike.
This product is no longer available.
