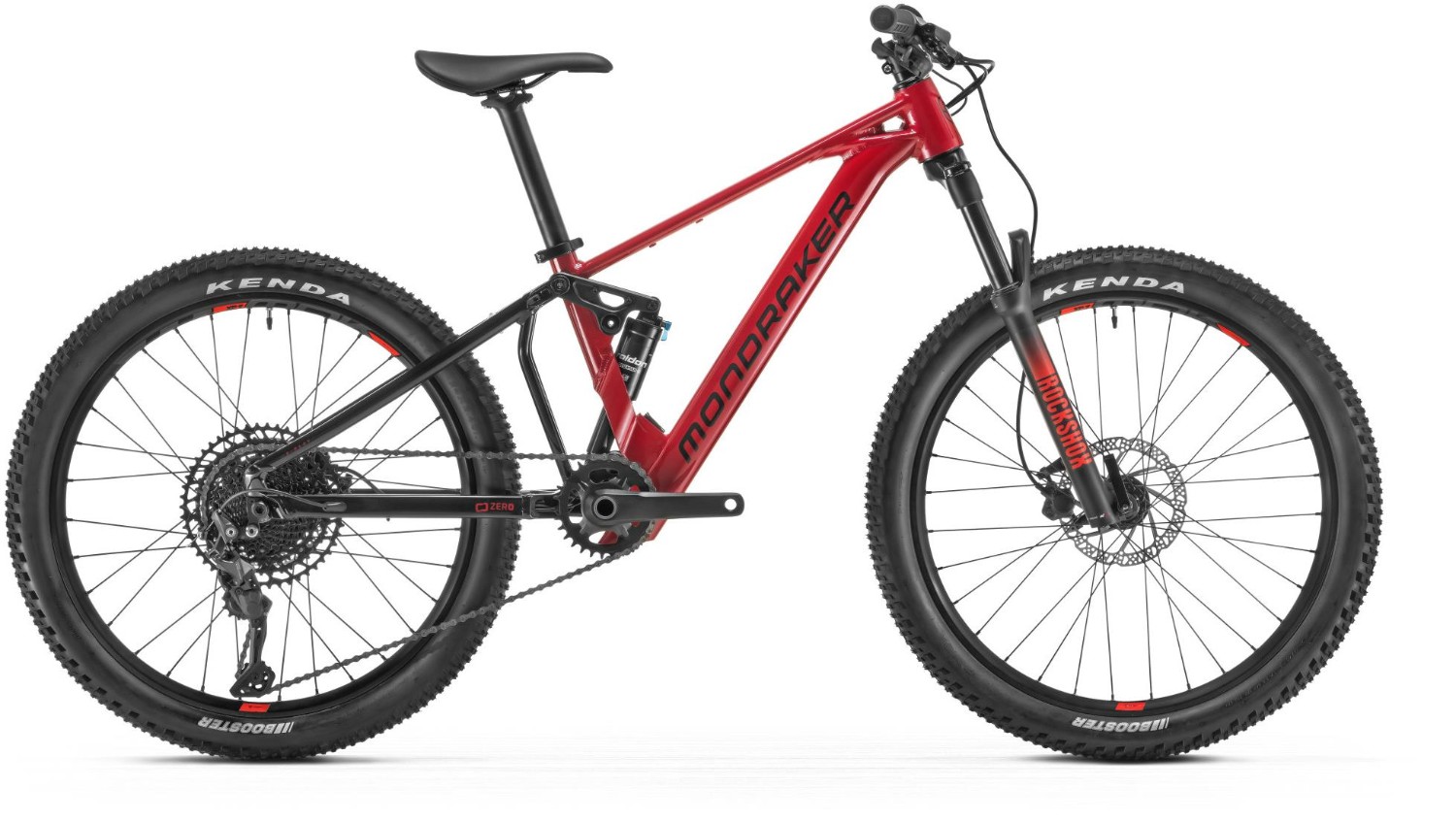

Mondraker F-Play 24 2022 - Junior Full Suspension Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | F-Play 24 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Rear Shock | X-Fusion 02PRO R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level, tooled reach adjust, lever pivot bushings |
| Rear Mech | Sram GX, 10s, short cage, X-actuation 1:1 |
| Shifters | Sram trigger GX 10s, X-actuation 1:1 |
| Speed | 10 |
| Rims | MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35 |
| Spokes | CN round stainless steel |
| Front Tyre | Kenda Booster 24x2.4 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 24x2.4 single compound 30TPI, wire bead |
| Seat Post | MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm |
| Saddle | SDG Fly JR |
| Chainset | Prowheel, Direct mount chain ring, 150mm |
| Bottom Bracket | Prowheel BSA, 73mm |
| Chain | Sram PC1031 10s, Powerlock |
| Cassette | Sram PG 1020 11-36T, 10s |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle-Ebikemotion Internal 250Wh |
| Motor | Mahle-Ebikemotion X-35 |
| User Interface | Mahle-Ebikemotion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
