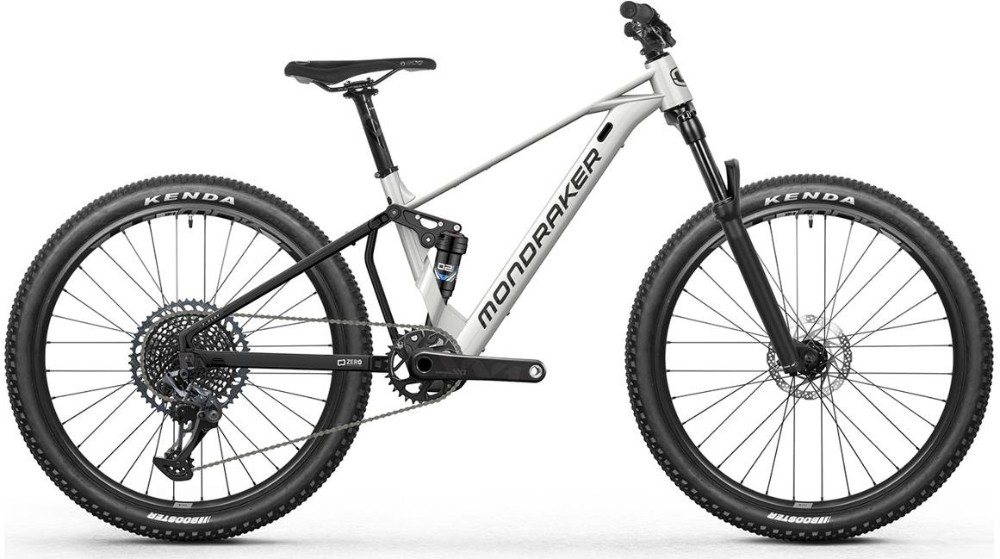

Mondraker F-Play 26 2022 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | F-Play 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | X-Fusion Velvet RL 26, 100mm, air spring, tapered steerer tube, 9x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
| Rear Shock | X-Fusion 02PRO R, 210x47.5mm. Settings: low-speed rebound, air preload. 45x8mm top and bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level, tooled reach adjust, lever pivot bushings |
| Rear Mech | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Shifters | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | MDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35 |
| Spokes | CN round stainless steel |
| Front Tyre | Kenda Booster 26x2.4 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 26x2.4 single compound 30TPI, wire bead |
| Seat Post | MDK XC 0-R, 6061 T6 Aluminium, Durchmesser 31,6mm, Länge 350mm |
| Saddle | SDG Fly JR |
| Chainset | SRAM SX Eagle, DUB axle, Direct mount chain ring, 155mm |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle Ebikemotion 250Wh, integriert |
| Motor | Mahle Ebikemotion X-35 |
| User Interface | Mahle Ebikemotion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
