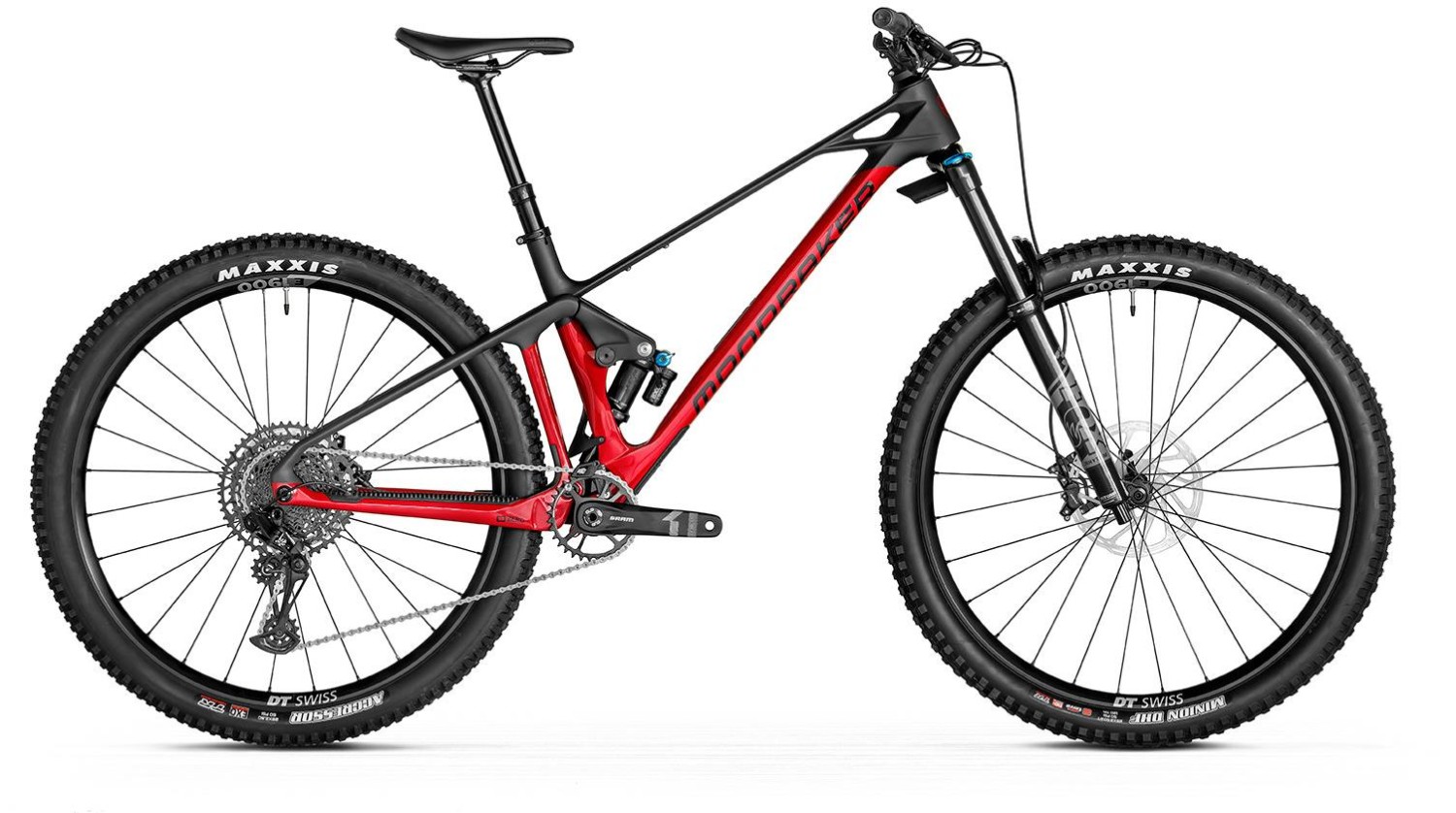

Mondraker Foxy Carbon R 29" Mountain Bike 2022 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design |
| Fork | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram G2 R, tool-free reach adjust |
| Rear Mech | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Shifters | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
| Speed | 12 |
| Rims | DT Swiss E1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 spokes |
| Front Hub | DT 370, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT 370, Boost 12x148mm, 18T Ratched LN system, IS 6 bolts |
| Spokes | DT Champion, straightpull |
| Front Tyre | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Chainset | Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm, 32T, steel, X-Sync 2 |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Cassette | Sram XG-1230, 11-50T, 12s |
| Weight | 14,1 kg |
Mondraker Foxy Carabon 2022 Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
Mondraker Foxy Carabon 2022 Geometry
|
FRAME SIZE |
S |
M |
L |
XL |
|
Seattube length |
375 mm |
415 mm |
445 mm |
500 mm |
|
Toptube length |
600 mm |
620 mm |
650 mm |
670 mm |
|
Bottom bracket drop |
-30 mm |
-30 mm |
-30 mm |
-30 mm |
|
Bottom bracket height |
345 mm |
345 mm |
345 mm |
345 mm |
|
Chainstay length |
445 mm |
445 mm |
445 mm |
445 mm |
|
Seat tube angle |
70° |
70° |
70° |
70° |
|
Effective seattube angle |
75.5° |
75.5° |
75.5° |
75.5° |
|
Headtube angle |
64.5° |
64.5° |
64.5° |
64.5° |
|
Fork Offset |
44 mm |
44 mm |
44 mm |
44 mm |
|
Wheelbase |
1210 mm |
1233 mm |
1260 mm |
1286 mm |
|
Headtube length |
90 mm |
100 mm |
115 mm |
130 mm |
|
Reach |
445 mm |
465 mm |
485 mm |
505 mm |
|
Stack |
617 mm |
627 mm |
641 mm |
656 mm |
What size frame do I need if I am between sizes? - read here
