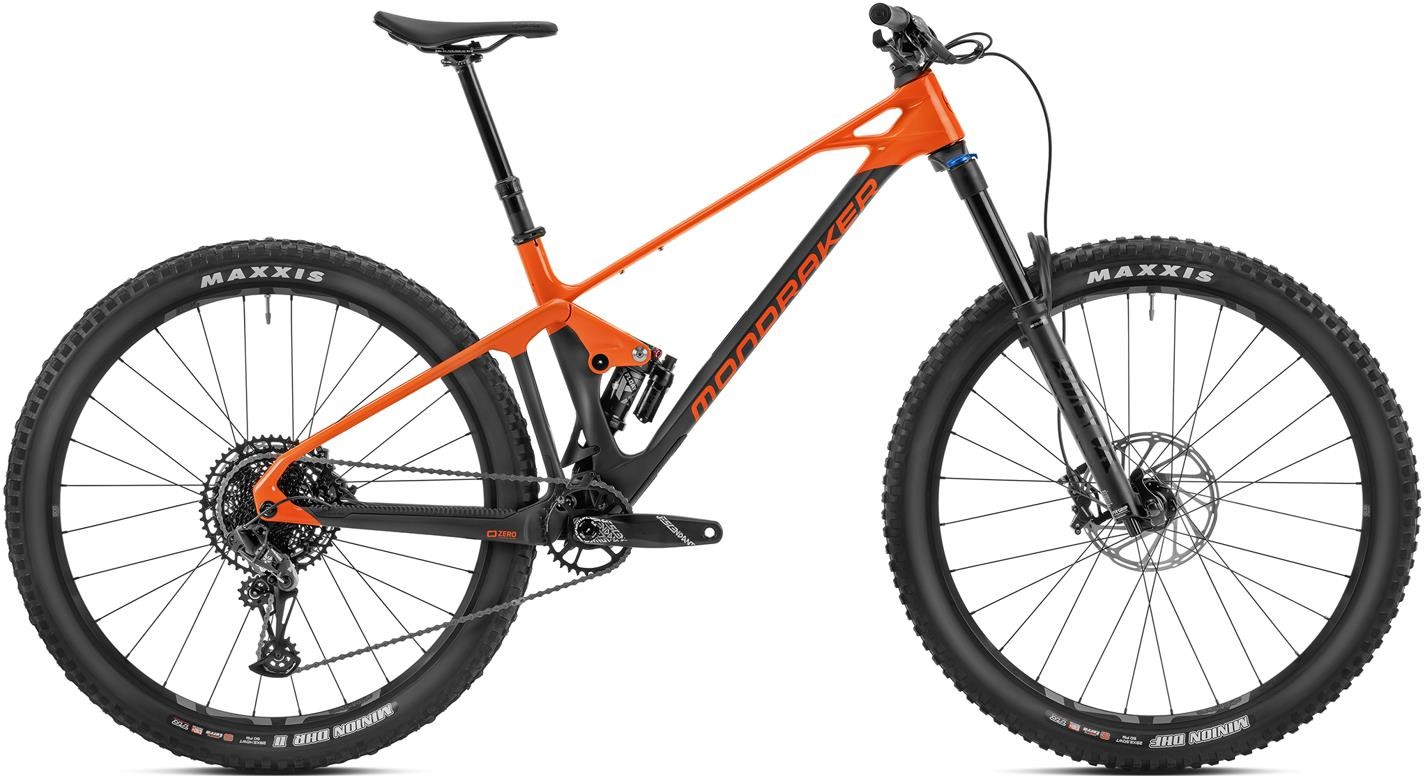

Mondraker Foxy Carbon R 29 Mountain Bike 2023 - Enduro Full Suspension MTB
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, aluminium CSC upper link with carbon bridge, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design |
Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Front Brake | Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Rear Brake | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
Brake Lever | Sram G2 R, tool-free reach adjust |
Rear Mech | Sram NX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
Shifters | Sram Trigger NX Eagle, 12s, X-Actuation 1:1 |
Speed | 12 |
Rims | e*thirteen LG1 Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, Shimano freehub |
Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
Front Tyre | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Rear Tyre | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
Chainset | Truvativ Descendant 6K Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm . 32T, steel, X-Sync 2 |
Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm |
Chain | Sram NX Eagle, 12s, Powerlock |
Cassette | Sram XG-1230, 11-50T, 12s |
Pedals | Resin Platform |
Mountain Bike Size Chart
Height
|
Bike Size
|
Mountain Bike Size
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
13” (33 cm)
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
15” (38 cm)
|
5’4” – 5’7”
163 – 170 cm
|
S
|
16” (41 cm)
|
5’7” – 5’10”
170 – 178 cm
|
M
|
18” (46cm)
|
5’10” – 6’0”
178 – 183 cm
|
L
|
19” (48cm)
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
20” (51 cm)
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
21” (53 cm)
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
