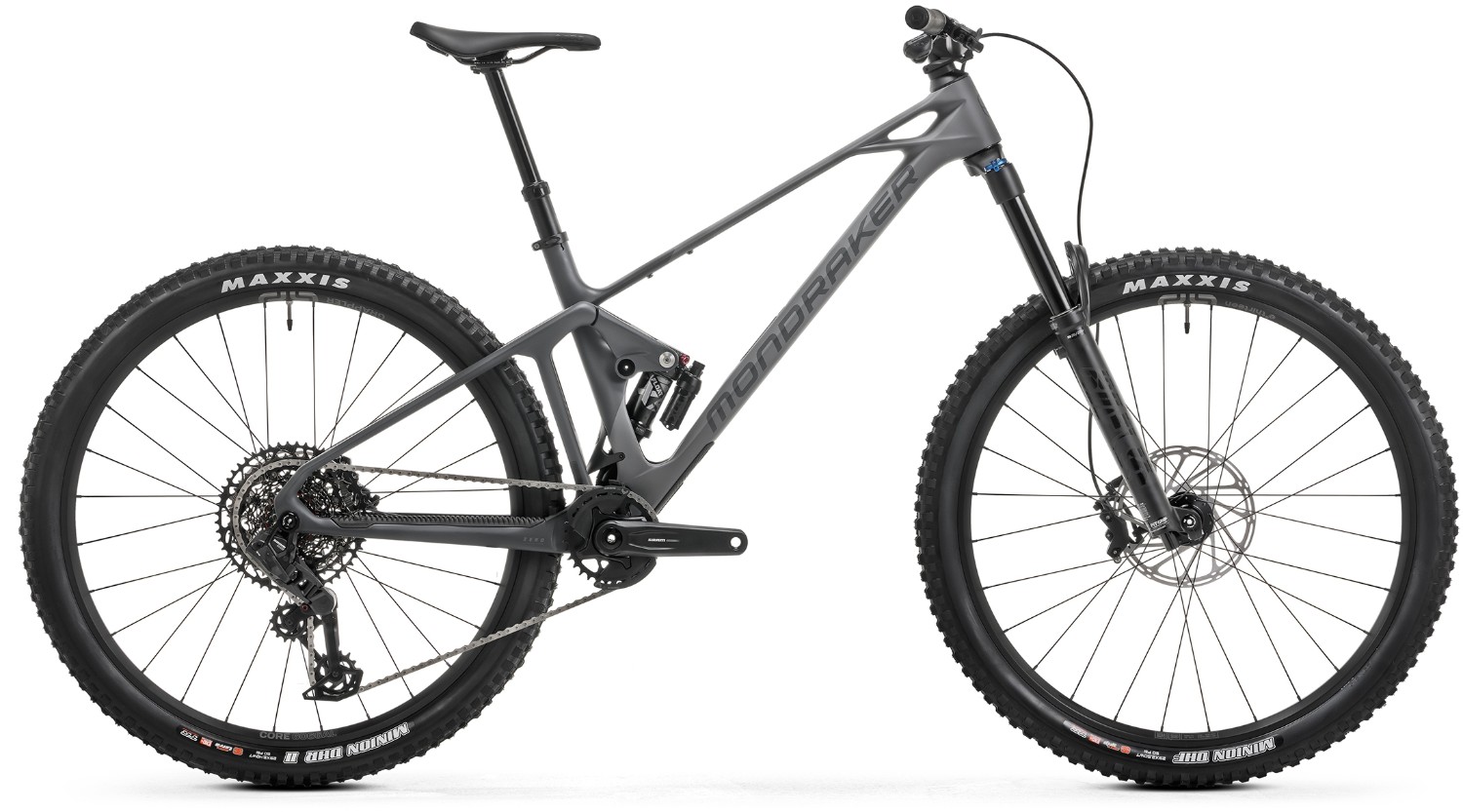

Mondraker Foxy Carbon R Mountain Bike 2025 - Enduro Full Suspension MTB
The Foxy Carbon R is built for riders who love pushing their limits on technical trails and steep descents. The Stealth Air full carbon frame is not only lightweight but also incredibly strong, offering exceptional durability and responsiveness. Mondraker’s Forward Geometry enhances stability and handling, ensuring confidence on technical terrain.
Key Features:
- Frame: Stealth Air full carbon with Zero Suspension System and 150mm travel.
- Fork: Fox 36 Float Performance GRIP, 160mm travel, Boost axle.
- Rear Suspension: Fox Float-X LV Performance, 150mm travel, adjustable rebound and compression.
- Drivetrain: SRAM S1000 Eagle AXS, 12-speed electronic shifting for precise gear changes.
- Brakes: SRAM DB8 Stealth, 4-piston calipers with 200mm/180mm rotors.
- Wheels: e*thirteen Grappler Core 29", 30mm internal width, tubeless-ready.
- Tyres: Maxxis Minion DHF/DHR II, tubeless-ready with EXO+ protection for grip and durability.
- Finance Options: Available with 0% APR finance for flexible payment.
The Zero Suspension System with 150mm travel keeps you in control by eliminating pedal kickback and brake jack, while the Fox Float-X Performance shock and Fox 36 Float Performance fork offer smooth and consistent performance. SRAM’s Eagle AXS drivetrain provides seamless electronic shifting, so you can focus on your ride, not your gears.
The e*thirteen Grappler Core wheels, paired with Maxxis Minion tyres, deliver a perfect combination of grip and speed, allowing you to conquer rough trails with ease. The dropper post, wide handlebars, and aggressive geometry make the Foxy Carbon R ready for any trail adventure, while the 0% APR finance option ensures it’s within reach for all riders.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings |
| Fork | Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Front Brake | Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8 stealth, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram DB8, tool reach adjust, lever pivot bushings |
| Rear Mech | Sram S1000 Eagle AXS T-Type, 12s |
| Shifters | Sram Eagle AXS Pod, 12s |
| Speed | 12 |
| Rims | e*thirteen Grappler Core, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Spokes | e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers |
| Front Tyre | Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm) |
| Saddle | SDG BEL-AIR 3.0, LPU foam, steel rails |
| Chainset | Sram S1000 Eagle T-Type, Boost, DUB axle, Direct mount chain ring, All sizes: 170mm,CL 55. 32T, CNC-machined alloy, T-Type |
| Bottom Bracket | Sram DUB BSA, sealed bearings, 73mm, wide |
| Chain | Sram GX Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1270, 10-52T, T-Type 12s |
Mondraker Foxy Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
