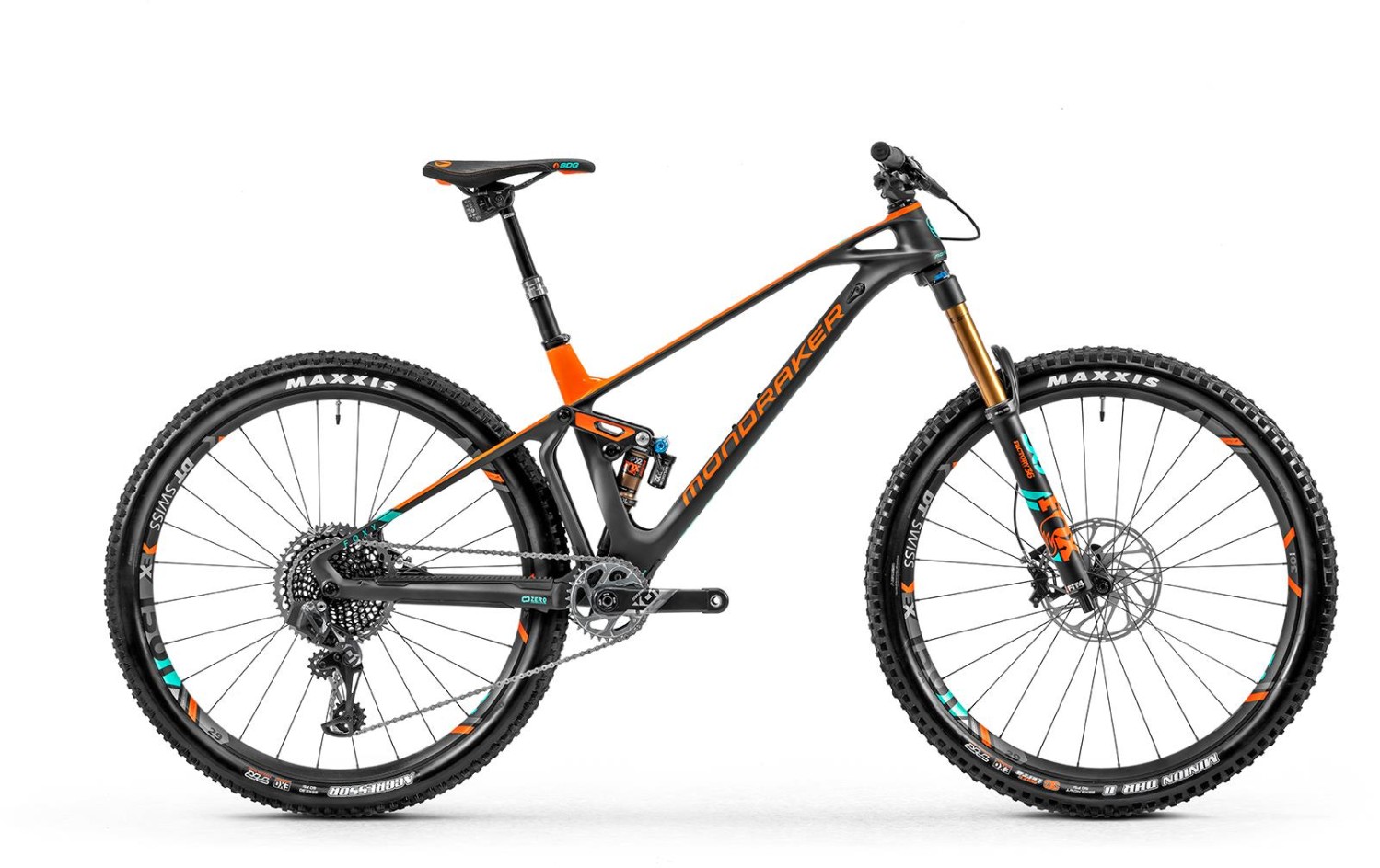

Mondraker Foxy Carbon RR SL 29" Mountain Bike 2020 - Enduro Full Suspension MTB

Now £6,999.00
Save £1,500.00 RRP: £8,499.00
Price Match
or £145.82 / month
Finance Options
Be the first to write a review
Sizing
Size
Colour
Add to Basket

Cycle to Work

Product Description

The Foxy Carbon is Mondraker's benchmark trail bike. For this latest generation, Mondraker set about improving on the Foxy Carbon's already high-performance and category-leading status. Leaving no area untouched, Mondraker shaved, tweaked, redesigned and reworked every part from the ground up to improve it in every area and to create what they feel to be 'the bike'.

With increased stiffness and riding comfort, the Foxy offers great traction on technical climbs, exquisite handling and spectacular downhill prowess to establishes itself as the most complete multi-purpose Mountain Bike Mondraker have ever manufactured. Its fantastic pedalling efficiency boosts the bike's climbing capabilities while the Forward Geometry, adjustable geometry and smooth Zero Suspension also aid downhill performance.

The 2020 Foxy Carbon RR SL 29" features Fox Factory suspension, Sram G2 brakes and a Sram X01 Eagle 12 speed drivetrain.

Occasionally, without notice, manufacturers change product design and/or specifications.

Specification

Frame:Foxy Stealth Air Full Carbon Zero Suspension System FG 150mm
Fork:Fox 36 Float 29 FIT4 3Pos Factory Kashima Boost 160mm
Rear Shock:Fox Float DPX2 3Pos Factory Kashima 205x62.5mm Trunnion
Headset:Onoff Titan Internal tapered 1-1/8”->1-1/2”
Stem:Onoff Krypton FG30, 35mm Barbore
Bars:Onoff Krypton Carbon 0.5 780mm 35mm barbore
Front Brake:Sram G2 RSC 200mm
Rear Brake:Sram G2 RSC 180mm
Brake Lever:Sram G2 RSC
Rear Mech:Sram X01 Eagle AXS
Shifters:Sram X01 Eagle AXS right 12s
Speed:12
Rims:DT Swiss EX1501 Spline One 30mm 29 wheelset
Front Hub:DT Spline One 240s Boost 15x110mm
Rear Hub:DT Spline One 240s Boost 12X148mm XD freehub
Spokes:DT Competition Straight pull
Front Tyre:Maxxis Minion DHR II 29x2.4WT 3C/EXO/TR MaxxTerra
Rear Tyre:Maxxis Aggressor 29X2.30EXO/TR
Seat Post:RockShox Reverb AXS
Saddle:SDG Fly MTN TI
Chainset:Sram X01 Carbon Eagle DUB Boost DM32t
Bottom Bracket:Sram DUB BSA 73mm
Chain:Sram X01 Eagle
Cassette:Sram XG-1295 10-50t Polar 12s
Pedals:Basic Resin Flat

There are currently no customer reviews

Write your own review

Foxy 29Er Sizing

Foxy 29er Sizing

See the table below to find the right size Mondraker Foxy 29er.

 Height

<165cm

165 – 170cm

170 – 175cm

175-180cm

180 – 185cm

185 -190cm

190 – 195cm

>195cm

Size

Small

Small/Medium

 Medium

Medium/Large

Large

Large / X Large

X Large

X Large

Read our bike size guide for more information on sizing.



Foxy 29er Geometry



Frame Size

Small

Medium

Large

X Large

A

Seat Tube Length

380mm

420mm

470mm

510m

B

Top Tube Length

606mm

629mm

654mm

678mm

C

Bottom Bracket Drop

-21mm

-21mm

-21mm

-21mm

D

Bottom Bracket Height

350mm

350mm

350mm

350mm

E

Chain Stay Length

435mm

435mm

435mm

435mm

F

Seat Tube Angle, Actual

71 Degrees

71 Degrees

71 Degrees

71 Degrees

G

Seat Tube Angle, Effective

76 Degrees

76 Degrees

76 Degrees

76 Degrees

H

Head Tube

66 Degrees

66 Degrees

66 Degrees

66 Degrees

I

Fork Offset

44mm

44mm

44mm

44mm

J

Wheelbase

1193mm

1222mm

1248mm

1274mm

K

Head Tube Length

90mm

100mm

115mm

130mm

L

Reach

450mm

475mm

495mm

525mm

M

Stack

606mm

615mm

630mm

643mm

Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.

Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!

Full Sus MTB Guide



Is a full-suspension mountain bike right for me?

If you’re new to the world of cycling, we highly recommend taking a look at our bike buying guide overview or our mountain bike buying guide to help you decide what type of bike is right for your needs.

When you’re choosing a full suspension mountain bike, there are a few things to look out for which can help you to work out the quality and performance you can expect from a particular model.


Suspension travel & usage

Depending on the type of mountain bike riding you’ll be doing, you may want to have longer or shorter suspension travel on your bike:

Travel

Usage

Pros

Cons

Up to 120mm

XC

Lightweight & efficient pedalling for long-distance rides

Short travel is less capable on rough & demanding trails with large jumps & drops

120 – 150mm

Trail

Lightweight, balance of climb-friendly efficiency & rough-descent capability

More weight than a shorter travel bike & less efficient climbing. Less capable on descents than a longer travel bike

150-180mm

Enduro

Capable of covering difficult & technical downhill sections. Wide enough gear range for climbing

Heavier & significantly less efficient at climbing compared to shorter travel bikes

180mm +

Downhill

Designed for highly technical & high-speed descents, with big drops and large jumps

Heavy, and inefficient at climbing. Limited gear range means most climbs will require pushing the bike






Frame material

Full-suspension MTB frames are mostly made from either aluminium or carbon fibre, with each material having its own benefits & drawbacks.

Aluminium

Aluminium is lightweight, stiff, strong, and easy to manufacture. Manufacturers often develop their own aluminium alloys, such as ALUXX by Giant. Aluminium is found on a wide range of bikes, from entry-level & enthusiast bikes, right the way up to top-spec racing bikes.

Carbon

Carbon fibre is lighter, stiffer, stronger, and more expensive than aluminium. The most affordable carbon bikes typically use medium strength carbon fibres, while the most expensive bikes use stronger ‘high modulus’ carbon. Carbon fibre frames are found on enthusiast-level bikes, right up to high-performance bikes designed for racing.


Groupset & drivetrain

Mountain bike groupset components are typically supplied by either Shimano or SRAM, with additional manufacturers like Formula, Hope, Magura, Tektro and TRP supplying brake systems. Shimano & SRAM both produce a range of groupsets to suit different budgets. The hierarchy table here compares the different Shimano & SRAM groupsets to determine which bikes offer the best performance.

A bike’s groupset, or drivetrain, is where the biggest difference in component quality is seen. A complete groupset comprises of the following parts:

  • Chainset (aka Crankset)
  • Bottom bracket
  • Brakes
  • Brake levers
  • Shifters
  • Front & rear derailleur
  • Chain
  • Cassette
 Shimano LogoSRAM Logo
Professional
11
XTR Di2
12
XX1 AXS Eagle
AXS Eagle

12
X01 AXS Eagle
AXS Eagle

12
XTR
11
XX1

11
X01

11
XT Di2

Enthusiast
12
XT

11
SLX
10
GX

10
Deore
11
NX
Entry
9
Alivio
12
SX Eagle
Eagle

9
Acera
9-10
X9

9
Altus
9-10
X7

7
Tourney
7-10
X5






Wheel size

You’ve probably noticed that a lot of mountain bikes come in a choice of wheel size, mainly a 27.5 inch wheel (also known as a 650B wheel) or a 29inch wheel (known as a 29er). Although there are still bikes which use 26 inch wheels, these are gradually being phased out on all but the smallest bikes. The difference between these wheel sizes can have a dramatic effect on the way a bike feels and handles out on the trail.

27.5in/650b Wheels

27.5inch wheels are smaller and lighter than 29er wheels, which makes them more agile and gives the bike a more responsive & playful nature. On the other hand, the smaller wheel size rolls less efficiently than the larger size, making the bike more prone to losing speed over rough ground and making it a little slower when climbing.

29er Wheels

29er wheels have a bigger rolling radius which makes them naturally smoother over rough ground. For this reason, a 29er mountain bike often requires less suspension travel than smaller wheeled alternatives. The downsides are an increase in weight, and the larger diameter wheels generate stronger gyroscopic forces, making the bike more stable, but less agile and responsive whilst manoeuvring.

26in Wheels

26 inch wheels were once the go-to wheel size on adult mountain bikes. However, they are now typically only found on the smallest frame sizes, and on junior bikes. 26 inch wheels are lightweight and give the bike very agile handling. The downsides to 26 inch wheels are their poor rolling resistance on rough ground, and the reduced contact patch due to the smaller wheel circumference.


Suspension components

Mountain bike suspension components (i.e. the fork or rear shock absorber) are also a way to identify the quality of a bike. While Fox and RockShox are the most common manufacturers, there are a number of brands producing suspension components for mountain bikes.

Entry level full suspension mountain bikes (up to approximately £1300) may come supplied with a fork & rear shock supplied by SR Suntour, X-Fusion or RockShox. These components will allow a limited amount of adjustment, including:

  • Coil spring preload / air spring pressure adjustment
  • Lockout switch
  • Rebound damping adjustment on models towards the top of the price range.

Mid-range & enthusiast bikes (up to approximately £3500) use components from brands including Fox, RockShox and Manitou. At this level, suspension components have features like:

  • Preload adjustment / air spring pressure adjustment
  • Rebound damping adjustment
  • Lockout switch
  • Multi-position ‘mode’ switch
  • Components towards the top end of the enthusiast price range may also feature compression damping adjustment as well.

Top of the range & competition spec bikes (over £3500) also use components from Fox, RockShox & Manitou, with a few select models using parts from Ohlins. At this price, suspension components have features including:

  • Coil spring preload adjustment / air spring pressure adjustment
  • High & low speed rebound damping adjustment
  • High & low speed compression damping adjustment
  • Lockout switch
  • Multi-position 'mode' switch
  • Advanced low-friction coatings (e.g. Fox’s golden-coloured Kashima coating)
