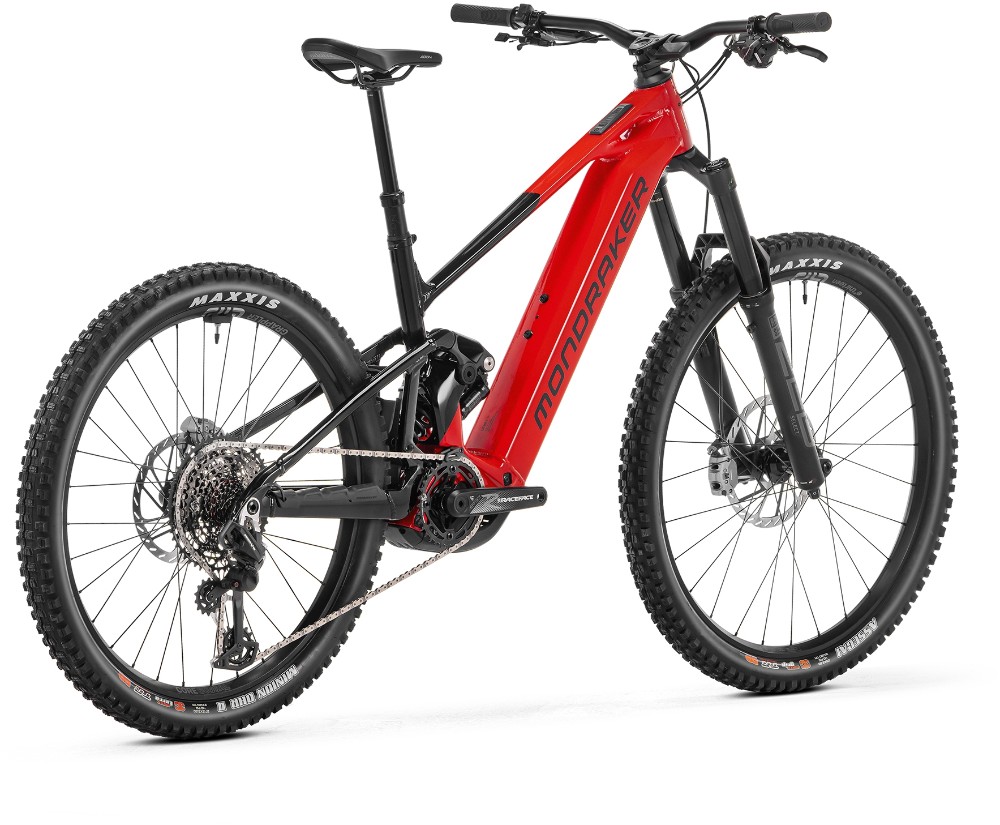

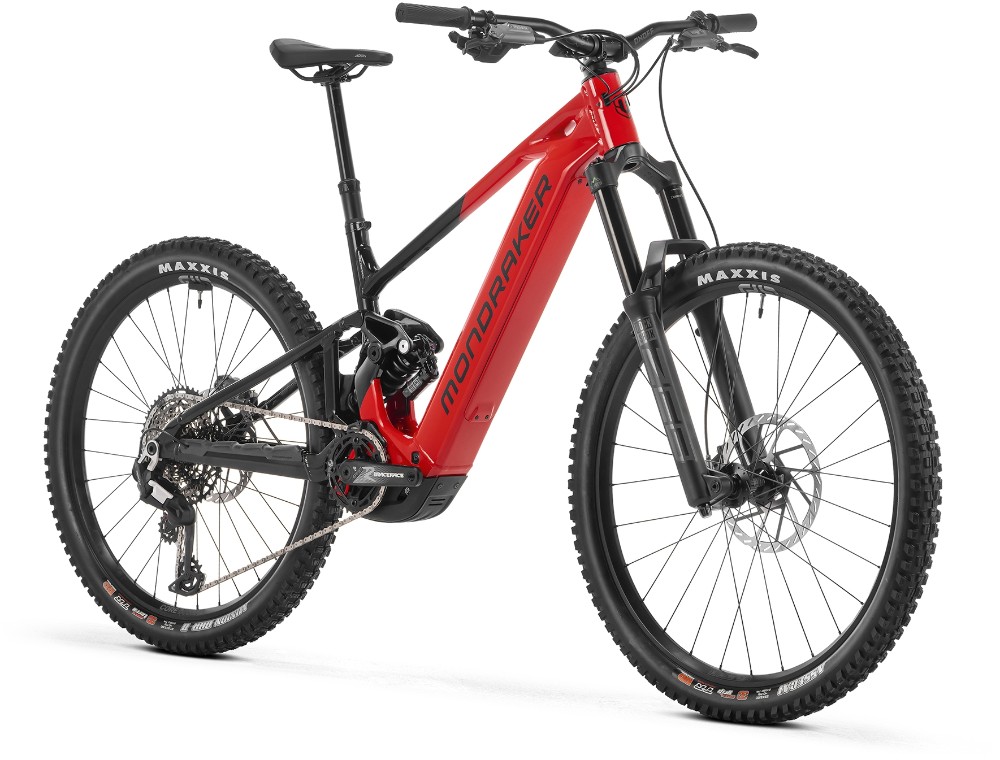

Mondraker Level R 2026 - Electric Mountain Bike
For riders who live for the descents but want more time on the hill, the Mondraker Level R is the ideal eMTB weapon. This latest evolution takes the proven Level platform and supercharges it with Bosch’s 5th-generation Performance Line CX motor, now delivering a massive 100Nm of torque for relentless uphill drive—even on the steepest fire roads or techy climbs. Paired with a high-capacity 800Wh battery, it offers serious range for long, remote days on the mountain.
Key Features:
- Stealth Alloy frame with enduro geometry and Zero Suspension System
- RockShox ZEB RC fork with 180mm travel for aggressive trail handling
- RockShox Super Deluxe Select+ rear shock with 170mm of plush travel
- SRAM GX Eagle T-Type 12-speed drivetrain with 10-52T cassette
- SRAM Maven Bronze hydraulic disc brakes with massive stopping power
- Mixed wheel setup: 29" front / 27.5" rear with Maxxis Assegai and DHR II tyres
- Mullet wheels for sharper handling and better rollover up front
- Available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX Gen 5, 100Nm torque
- Battery: 800Wh removable internal battery
- User Interface: Bosch System Controller with wireless Mini Remote
The Level R’s Stealth Alloy frame uses Mondraker’s refined Forward Geometry for stability at speed, while the Zero Suspension System ensures efficient pedalling and bump absorption. Up front, the RockShox ZEB RC fork handles the heavy hits with 180mm of support, matched to a Super Deluxe Select+ rear shock offering 170mm at the rear—dialled for technical, fast, and steep trails.
The mixed wheel setup brings the best of both worlds: a 29” front wheel for confident rollover and a 27.5” rear for nimble handling and playfulness. Maxxis Assegai and DHR II tyres provide trail-proven grip and control on everything from loose loam to rocky chutes.
A SRAM GX Eagle T-Type 12-speed drivetrain delivers crisp, chain-straight shifting even under load, and the Maven Bronze brakes offer excellent stopping power with oversized rotors to keep your speed in check when things get rowdy.
From bike park lines to enduro stages and alpine epics, the Mondraker Level R is built for riders ready to unlock new terrain and ride harder, longer, and faster.
Performance upgrades to 100Nm torque, 750W power and 400% support are available via the Bosch eBike Flow app. A free firmware update, delivered through the app, may be required.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, one-piece Monoblock upper link, HHG internal cable routing, oversize 17mm axles |
| Fork | RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload |
| Rear Shock | RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
| Front Brake | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Brake Lever | Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust |
| Rear Mech | Sram 90 Eagle T-Type, 12s |
| Shifters | Sram 90 Eagle, 12s, T-Type Actuation, single click |
| Speed | 12 |
| Rims | e*thirteen Grappler Core, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''5 rear |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub |
| Spokes | e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers |
| Front Tyre | Maxxis Assegai 29x2.6WT, tubeless ready, 3C MAXX GRIP compound, DD protection, 60x2TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Chainset | Race Face Aeffect ebike, All sizes: 160mm . Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram 70 Eagle T-Type, 12s, Powerlock |
| Cassette | Sram XS-1270, 10-52T, T-Type, 12s |
| Battery Size (WH) | Bosch PowerTube 800Wh |
| Motor | New Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM (BDU384Y) |
| User Interface | Purion 400 / Bosch Mini Remote / Bosch System Controller |
Mondraker Level Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
S |
162 – 170 cm |
5’4” – 5’7” |
|
M |
167 – 180 cm |
5’6” – 5’11” |
|
L |
175 – 187 cm |
5’9” – 6’2” |
|
XL |
185 – 198cm |
6’1” – 6’6” |
What size frame do I need if I am between sizes? - read here
