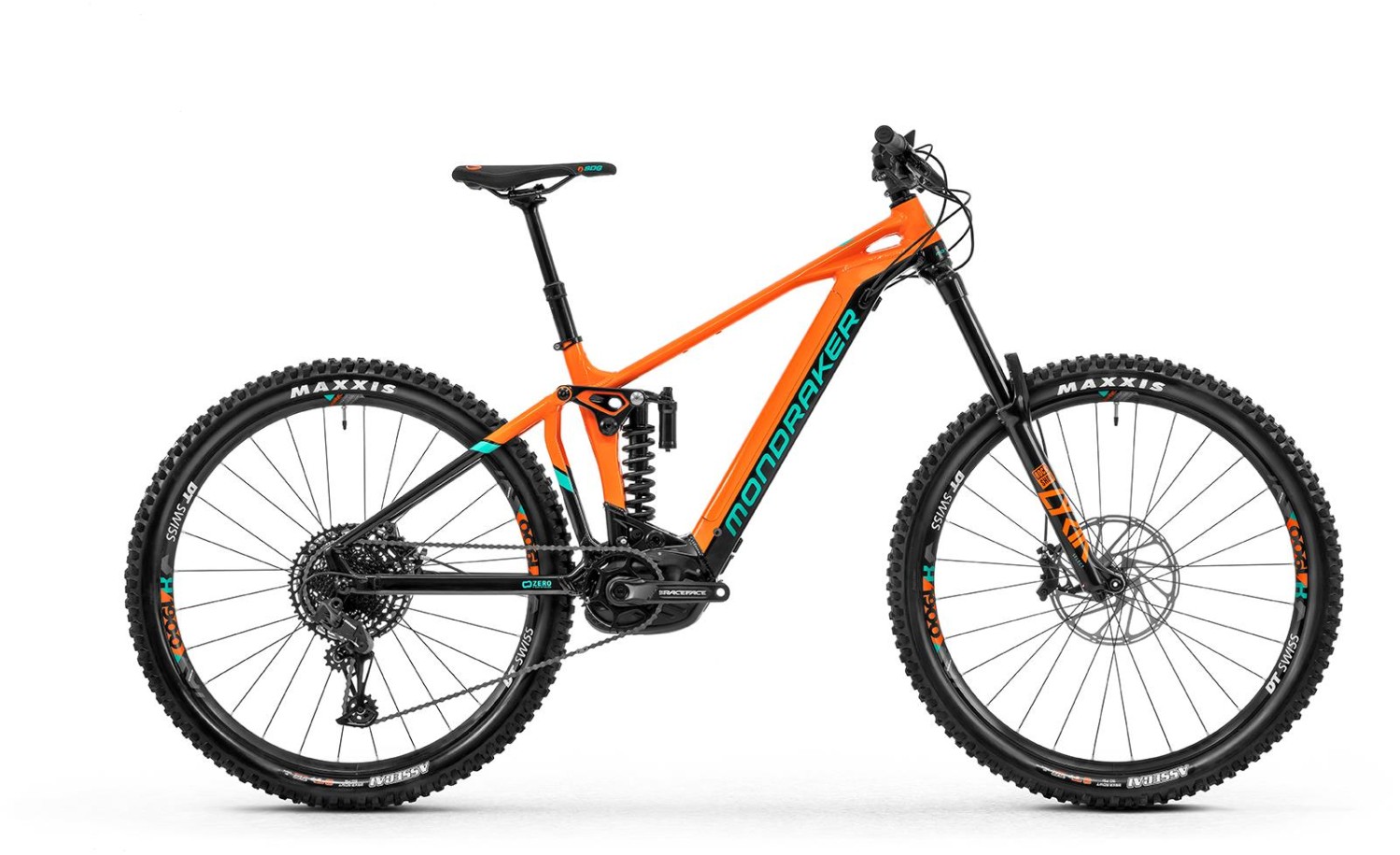

Mondraker Level R 29" 2020 - Electric Mountain Bike

The Level takes e-MTB riding to another level. Introducing 29" wheels and long travel to achieve high performance, hardcore enduro riding. Pairing a 180mm fork with 170mm of coil-sprung Zero link rear suspension, the Level features pioneering Forward Geometry and is powered by the Bosch Performance Line G4 CX system w/Intube PowerTube 625Wh Bosch battery with a Kiox On-Board computer.
The Level R features a RockShox Lyrik Select Charger RC 180mm, RockShox Super Deluxe Coil Select+ RT 225x75mm Trunnion, DT Swiss Hybrid wheelset and RaceFace AEffect e-Bike cranks.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Level Stealth Zero Suspension System FG 170mm |
| Fork | RockShox Lyrik Select Charger RC 180mm |
| Rear Shock | RockShox Super Deluxe Coil Select+ RT 225x75mm Trunnion |
| Headset | Onoff Saturn ACB Bearings integrated tapered 1-1/8”->1-1/2” |
| Stem | Onoff Sulfur FG30 0º |
| Bars | Onoff Sulfur 1.0 780mm |
| Front Brake | SRAM Code R 220mm |
| Rear Brake | SRAM Code R 200mm |
| Brake Lever | SRAM Code R |
| Rear Mech | Sram SX Eagle X-Horizon Type3 1x12s |
| Shifters | Sram SX Eagle right single click 12s |
| Speed | 12 |
| Rims | DT Swiss Hybrid H1900 SPLINE 30mm |
| Front Hub | DT Swiss Hybrid Spline 370s based 15x110mm |
| Rear Hub | DT Swiss Hybrid Spline 370s based Pawl System 12x148mm |
| Spokes | Hybrid System Specific SP Spoke |
| Front Tyre | Maxxis Assegai 29x2.5WT DH 3C TR MaxxGrip |
| Rear Tyre | Maxxis Assegai 29x2.5WT DH 3C TR MaxxGrip |
| Seat Post | Onoff Dropper Pija internal 1x lever |
| Saddle | SDG Fly MTN |
| Chainset | RaceFace Aeffect 165mm ebike cranksets 34T |
| Chain | SRAM SX Eagle 12s |
| Cassette | Sram Eagle XG1210 11-50t 12s |
| Pedals | Basic Resin Flat |
| Battery Size (WH) | 625wh |
| Motor | Bosch |
| User Interface | Bosch Kiox |
Chaser Sizing
See the table below to find the right size Mondraker Chaser.
| Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
>195cm |
|
Size |
Small |
Small / Medium |
Medium |
Medium / Large |
Large |
Large / X Large |
Large |
Read our bike size guide for more information on sizing.
Chaser Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube Length |
380mm |
420mm |
470mm |
500mm |
|
Top Tube Length |
605mm |
635mm |
660mm |
685mm |
|
Bottom Bracket Drop |
-15mm |
-15mm |
-15mm |
-15mm |
|
Bottom Bracket Height |
345mm |
345mm |
345mm |
345mm |
|
Chainstay Length |
475mm |
475mm |
475mm |
475mm |
|
Seat Angle, Actual |
75 Degrees |
75 Degrees |
75 Degrees |
75 Degrees |
|
Seat Tube Angle, Effective |
75 Degrees |
75 Degrees |
75 Degrees |
75 Degrees |
|
Head Tube Angle |
67 Degrees |
67 Degrees |
67 Degrees |
67 Degrees |
|
Fork Offset |
42mm |
42mm |
42mm |
42mm |
|
Wheelbase |
1206mm |
1238mm |
1266mm |
1290mm |
|
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
|
Reach |
450mm |
475mm |
495mm |
515mm |
|
Stack |
579mm |
597mm |
615mm |
624mm |
