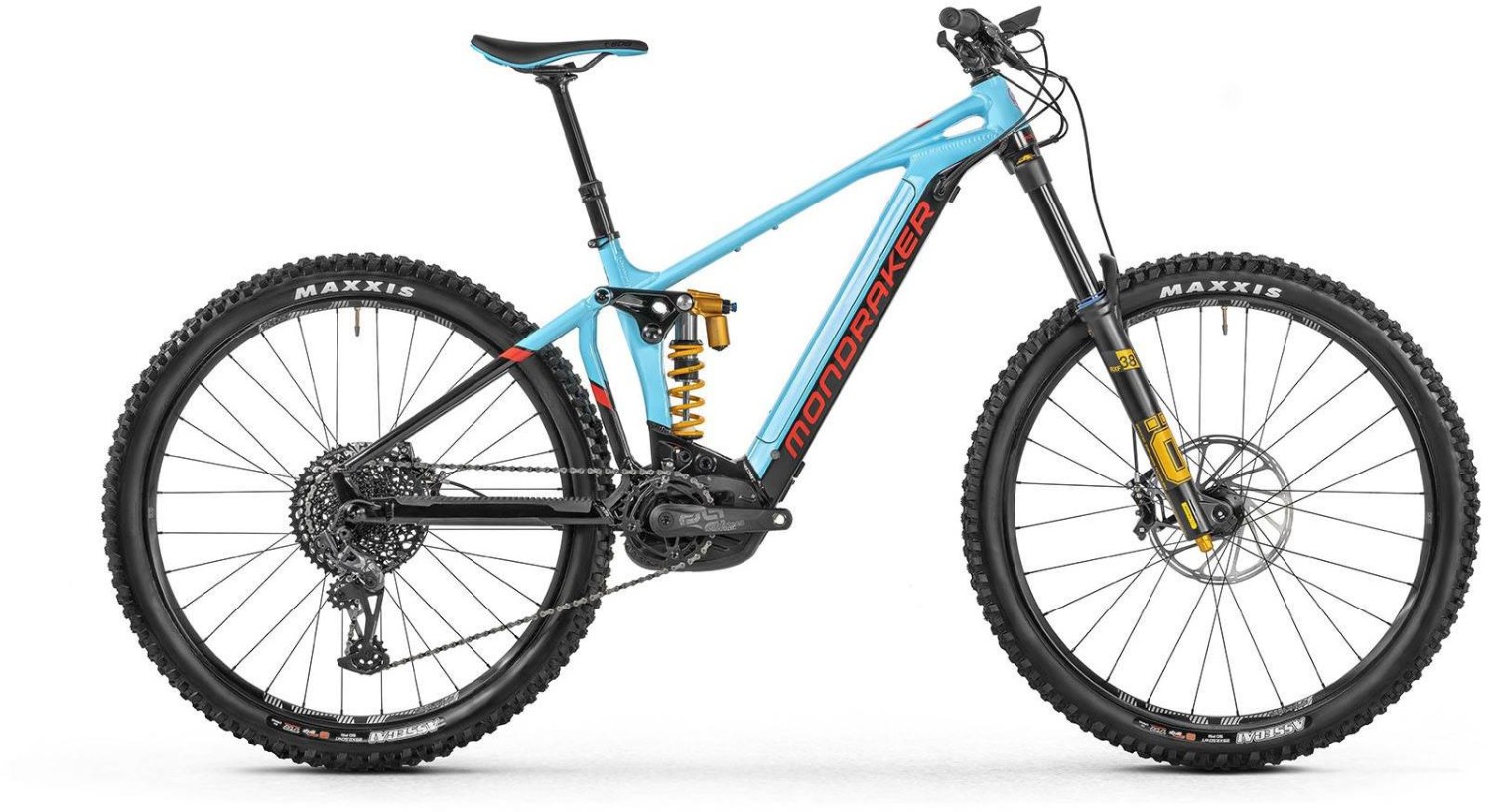

Mondraker Level RR 29" 2021 - Electric Mountain Bike
The Level takes e-MTB riding to another level. Introducing 29" wheels and long travel to achieve high performance, hardcore enduro riding. Pairing a 180mm fork with 170mm of coil sprung Zero link rear suspension, the Level features pioneering Forward Geometry and is powered by the Bosch Performance Line CX G4 system w/Intube PowerTube 625Wh Bosch battery with a Kiox On Board computer.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Level 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 170mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle |
| Fork | Öhlins RXF 38 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber |
| Rear Shock | Öhlins TTX22M 225x75mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, spring preload. Trunnion top mount, 25x10mm bottom bushings |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45° |
| Stem | Onoff Krypton FG 30mm, 6061 forged alloy, 31.8mm barbore |
| Bars | Onoff Krypton Carbon 1.0, rise: 25mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
| Front Brake | SRAM Code RSC, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads |
| Rear Brake | Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel- backed metal sintered pads |
| Brake Lever | SRAM Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust |
| Rear Mech | Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifters | SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click |
| Speed | 12 |
| Rims | e*thirteen E*Spec Plus, IW30 Hookless, 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F / 32R spokes |
| Front Hub | e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts |
| Rear Hub | e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts |
| Spokes | e*thirteen custom J-bend, triple-butted alloy, alloy nipples, nipple washers |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Rear Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm |
| Saddle | SDG BEL-AIR 3.0, EVA foam, Alloy rails |
| Chainset | E.13 E*Spec Plus ebike, 165mm |
| Chain | Sram GX Eagle, 12s, Powerlock |
| Cassette | Sram PG-1275 10-52 12S |
| Battery Size (WH) | 625wh |
| Motor | Bosch |
| User Interface | Bosch Kiox |
Chaser Sizing
See the table below to find the right size Mondraker Chaser.
| Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
>195cm |
|
Size |
Small |
Small / Medium |
Medium |
Medium / Large |
Large |
Large / X Large |
Large |
Read our bike size guide for more information on sizing.
Chaser Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube Length |
380mm |
420mm |
470mm |
500mm |
|
Top Tube Length |
605mm |
635mm |
660mm |
685mm |
|
Bottom Bracket Drop |
-15mm |
-15mm |
-15mm |
-15mm |
|
Bottom Bracket Height |
345mm |
345mm |
345mm |
345mm |
|
Chainstay Length |
475mm |
475mm |
475mm |
475mm |
|
Seat Angle, Actual |
75 Degrees |
75 Degrees |
75 Degrees |
75 Degrees |
|
Seat Tube Angle, Effective |
75 Degrees |
75 Degrees |
75 Degrees |
75 Degrees |
|
Head Tube Angle |
67 Degrees |
67 Degrees |
67 Degrees |
67 Degrees |
|
Fork Offset |
42mm |
42mm |
42mm |
42mm |
|
Wheelbase |
1206mm |
1238mm |
1266mm |
1290mm |
|
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
|
Reach |
450mm |
475mm |
495mm |
515mm |
|
Stack |
579mm |
597mm |
615mm |
624mm |
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Mondraker Level RR 29" 2021 - Electric Mountain Bike.
This product is no longer available.
