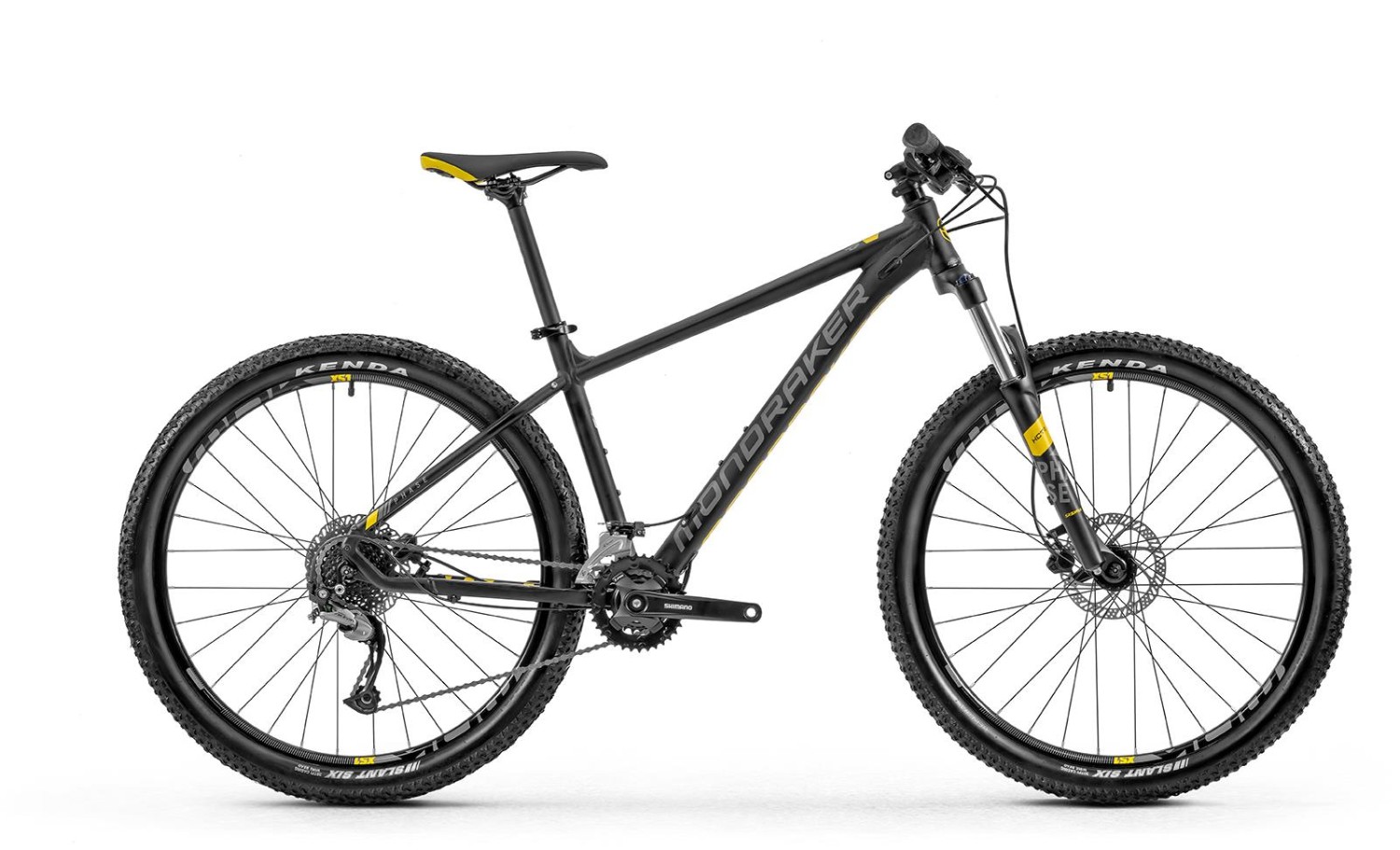

Mondraker Phase 27.5" Mountain Bike 2020 - Hardtail MTB
The Phase offers the perfect introduction to the world of mountain biking. Sharing the DNA, attention to detail and technology from the world's most innovative mountain bike company.
The 2020 Phase 27.5" is a great value, trail-ready hardtail. Featuring a Custolite triple-butted aluminium frame with an all-new Shimano 9 speed drivetrain. This thoughtfully selected component package will only enhance a mountain bikers' experience of off-road riding.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Phase 27.5" Custolite alloy 6061 Customized Tubing |
| Fork | Suntour XCT ATB 27.5" Hydraulic Lockout QR 100mm |
| Headset | CH 9280 ZS |
| Stem | MDK XC +/-7° 60/60/75/90mm |
| Bars | MDK XC 0.5 720mm |
| Front Brake | Tektro HDM-275 Hydraulic Disc Brakes 160mm |
| Rear Brake | Tektro HDM-275 Hydraulic Disc Brakes 160mm |
| Brake Lever | Tektro HDM-275 |
| Front Mech | Shimano Alivio FD-M4000-M |
| Rear Mech | Shimano Acera RD-M3000 SGS 9s |
| Shifters | Shimano Altus SL-M2010 2x9s |
| Speed | 18 |
| Rims | MDK-XS1 27.5 Wheelset |
| Front Hub | MDK Disc 9x100mm |
| Rear Hub | MDK Disc 9x135mm |
| Spokes | CN stainless |
| Front Tyre | Kenda Slant Six 27.5x2.35" Wire |
| Rear Tyre | Kenda Slant Six 27.5x2.35" Wire |
| Seat Post | MDK XC 27.2x350mm |
| Saddle | Mondraker Phase Custom Design |
| Chainset | Shimano MT101-2 36/22t 2x9s. |
| Bottom Bracket | CH-52_EN |
| Chain | KMC Z9 9S |
| Cassette | Sunrace CS-M90 11-34T 9s |
| Pedals | Wellgo LU-895N Flat |
Phase 27.5" Sizing
See the table below to find the right size Mondraker Phase 27.5.
|
Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
190-195cm |
>195cm |
|
Size |
Small |
Small / Medium |
Medium |
Medium / Large |
Large |
Large / X Large |
X Large |
X Large |
Read our bike size guide for more information on sizing.
Phase 27.5" Geometry
|
Size |
S |
M |
L |
XL |
|
Seat Tube Length |
380mm |
430mm |
480mm |
530mm |
|
Top Tube Length |
575mm |
600mm |
620mm |
640mm |
|
Bottom Bracket Drop |
-50mm |
-50mm |
-50mm |
-50mm |
|
Bottom Bracket Height |
300mm |
300mm |
300mm |
300mm |
|
Chainstay Length |
425mm |
425mm |
425mm |
425mm |
|
Seat Angle, Actual |
74 Degrees |
74 Degrees |
74 Degrees |
74 Degrees |
|
Seat Tube Angle, Effective |
74 Degrees |
74 Degrees |
74 Degrees |
74 Degrees |
|
Head Tube Angle |
68.5 Degrees |
68.5 Degrees |
68.5 Degrees |
68.5 Degrees |
|
Fork Offset |
42mm |
42mm |
42mm |
42mm |
|
Wheelbase |
1085mm |
1110mm |
1131mm |
1153mm |
|
Head Tube Length |
100mm |
100mm |
110mm |
130mm |
|
Reach |
407mm |
432mm |
450mm |
464mm |
|
Stack |
583mm |
583mm |
592mm |
611mm |
Customer reviews and Q&A's are disabled because you declined functional cookies.
To enable reviews and Q&A's click the 'Cookie Settings' button below and enable functional cookies.
No longer available
Sorry you missed the Mondraker Phase 27.5" Mountain Bike 2020 - Hardtail MTB.
This product is no longer available.
