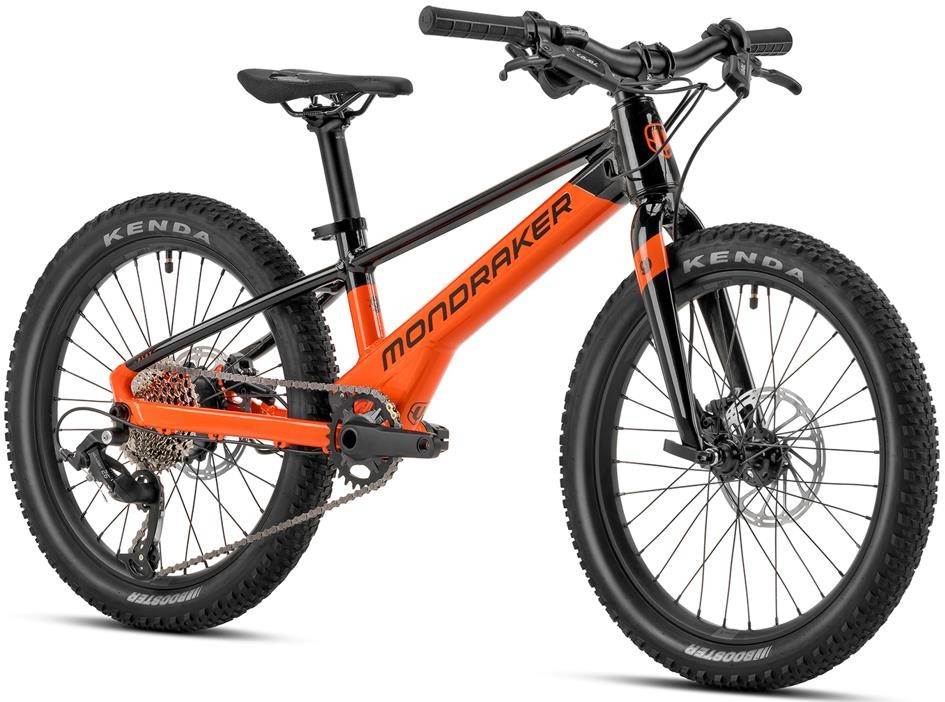

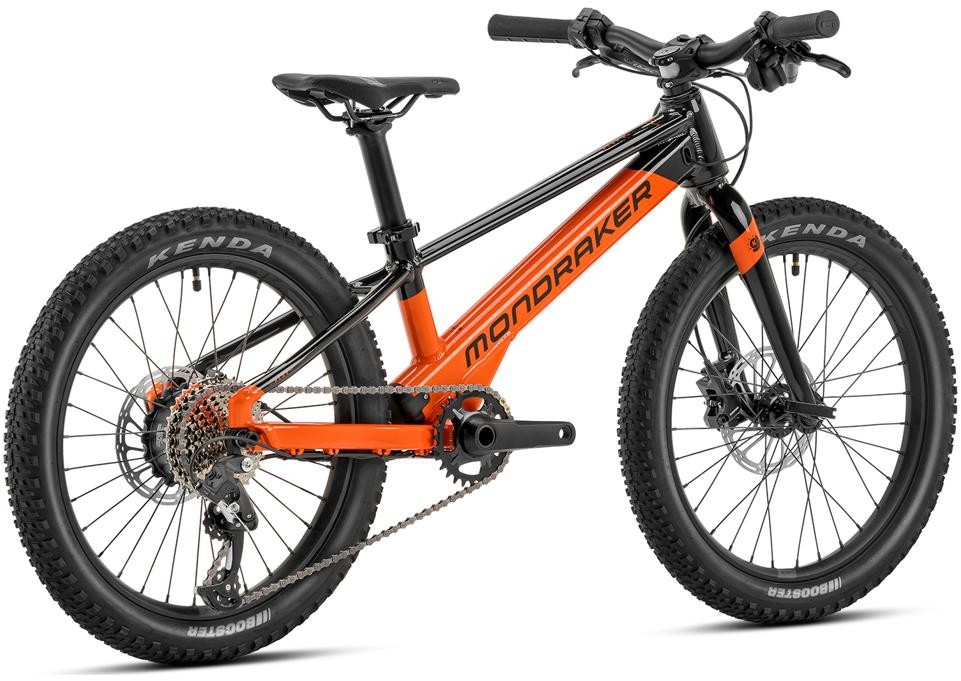

Mondraker Play 20 2023 2023 - Electric Kids and Junior Bike
While it might sound crazy, this e-bike is the perfect way to ignite young riders passion for cycling. Fitted with the Mahle Ebikemotion X-35 motor and a 250Wh battery, this bike ensures plenty of range and endless fun. Imagine the adventures you can share together!
Key Features:
- Frame: Play 20 6061 alloy with integrated internal non-removable battery
- Fork: Mdk 20 kid, rigid alloy stealth stanchions, post mount disc brake mount
- Drivetrain: Microshift M26S 9-speed rear mech and Microshift Mezzo TS39-9 shifters
- Brakes: Sram Level with 160mm centerline rotors
- Wheels: Mdk-xp1 20 TLR rims, Mahle-ebikemotion X-35 rear hub
- Tyres: Kenda Booster 20x2.4 for all-terrain adventures
- Saddle: Mdk Play 20 designed for young riders
Drive Information:
- Motor Type: Mahle-ebikemotion X-35
- Battery Capacity: 250Wh
- User Interface: Mahle-ebikemotion
Prepare your young adventurer for exciting journeys with the Mondraker Play 20. It's built to inspire a love for cycling and offers the same motor and battery as its larger counterparts. With top-notch components and an electric boost, this bike promises countless memorable rides together.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Play 20 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | MDK 20 Kid, Rigid alloy Stealth stanchions, Post Mount disc brake mount |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level, tooled reach adjust, lever pivot bushings |
| Rear Mech | Microshift M26S, 9s, short cage |
| Shifters | Microshift Mezzo TS39-9, 9s |
| Speed | 9 |
| Rims | MDK-XP1 20 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35 |
| Spokes | CN round stainless steel |
| Front Tyre | Kenda Booster 20x2.4 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 20x2.4 single compound 30TPI, wire bead |
| Seat Post | MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 250mm |
| Saddle | MDK Play 20 |
| Chainset | Samox DM 28T steel, 114mm. 28T, steel |
| Bottom Bracket | BSA, 73mm |
| Chain | Sram PC951 9s, Powerlock |
| Cassette | Microshift Mezzo 11-34T, 9s |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle-Ebikemotion Internal 250Wh |
| Motor | Mahle-Ebikemotion X-35 |
| User Interface | Mahle-Ebikemotion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
