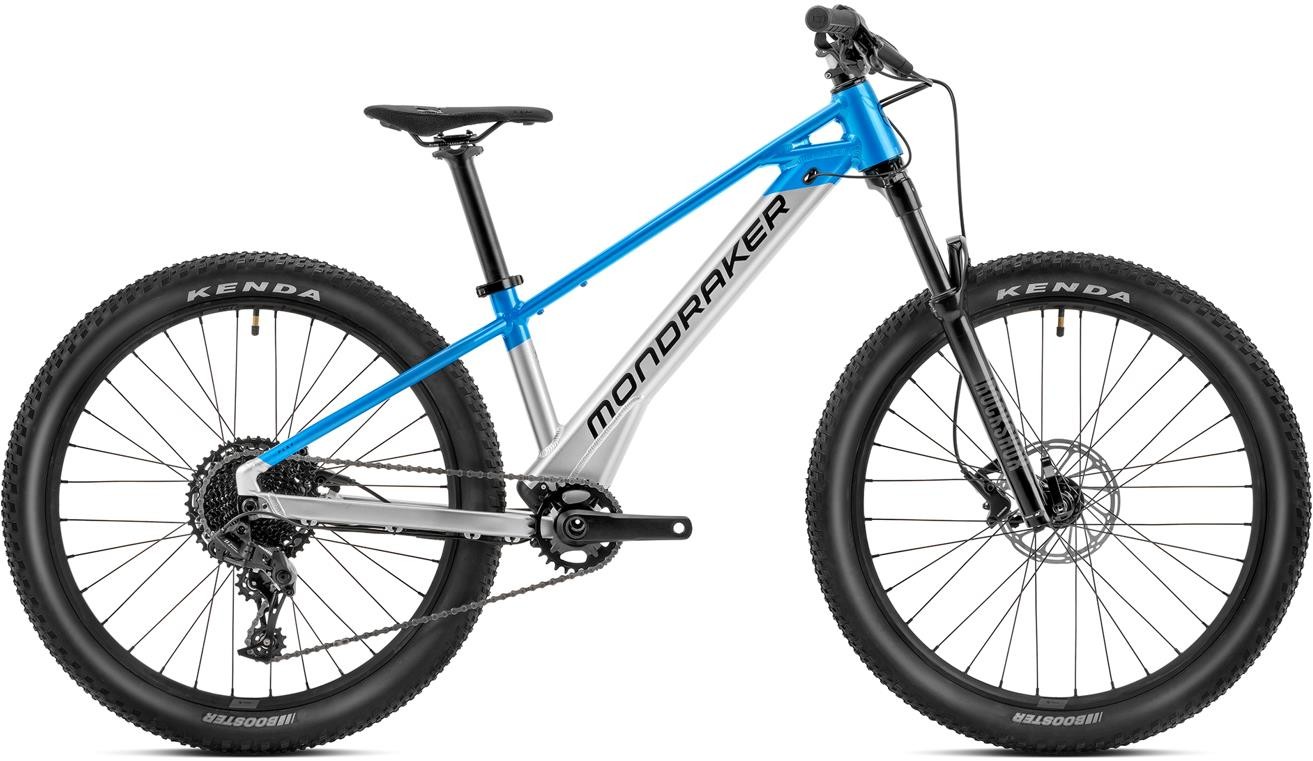

Mondraker Play 24 2023 2023 - Electric Kids and Junior Bike
Designed for little big riders, the Mondraker Play 24 has the aesthetics and the class-leading features of our adult bikes adapted for 24" wheels.
Designed for little big riders, the PLAY 24 has the aesthetics and the class-leading features of our adult bikes adapted for 24" wheels. With a lightweight hydroformed 6061 STEALTH EVO aluminium frame the bike truly has a personality of it own. If we add in a Mahle motor and a 250Wh battery, we get an e-bike prepared to go anywhere and do anything. And that’s not all! It also comes fitted with a RockShox Judy Silver fork with 100mm of travel, SRAM Level hydraulic disc brakes, and 2.4" wide tyres to improve both comfort and grip.
Key features:
- Play 24 6061 Alloy Stealth evo hydroformed tubing frame
- RockShox Judy Silver TK 26 with 100mm of bump soaking travel
- Sram 1x11 gears gives smooth and consistent shifting
- Sram Level brakes offer all-weather stopping power
- Kenda Booster tyres give enough traction in most conditions
- Sizes: 24W
- Colours: Silver/Blue
- The Mondraker Play 24 is available with 0% APR finance
Drive Information:
- Motor: Mahle-Ebikemotion X-35
- Battery: Mahle-Ebikemotion Internal 250Wh
- User Interface: Mahle-Ebikemotion
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match promise
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
| Fork | RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Bars | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Front Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Rear Brake | Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
| Brake Lever | Sram Level, tooled reach adjust, lever pivot bushings |
| Rear Mech | Sram NX, 11s, long cage, X-actuation 1:1 |
| Shifters | Sram trigger NX 11s, X-actuation 1:1 |
| Speed | 11 |
| Rims | MDK-XP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
| Front Hub | Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-35 |
| Spokes | CN round stainless steel |
| Front Tyre | Kenda Booster 24x2.4 single compound 30TPI, wire bead |
| Rear Tyre | Kenda Booster 24x2.4 single compound 30TPI, wire bead |
| Seat Post | MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm |
| Saddle | SDG Fly JR |
| Chainset | Samox DM 28T steel, 127mm. 28T, steel |
| Bottom Bracket | BSA, 73mm |
| Chain | SRAM PC1110 11s, Powerlock |
| Cassette | Sram PG 1030 11-42T, 11s |
| Pedals | Resin Platform |
| Battery Size (WH) | Mahle-Ebikemotion Internal 250Wh |
| Motor | Mahle-Ebikemotion X-35 |
| User Interface | Mahle-Ebikemotion |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
