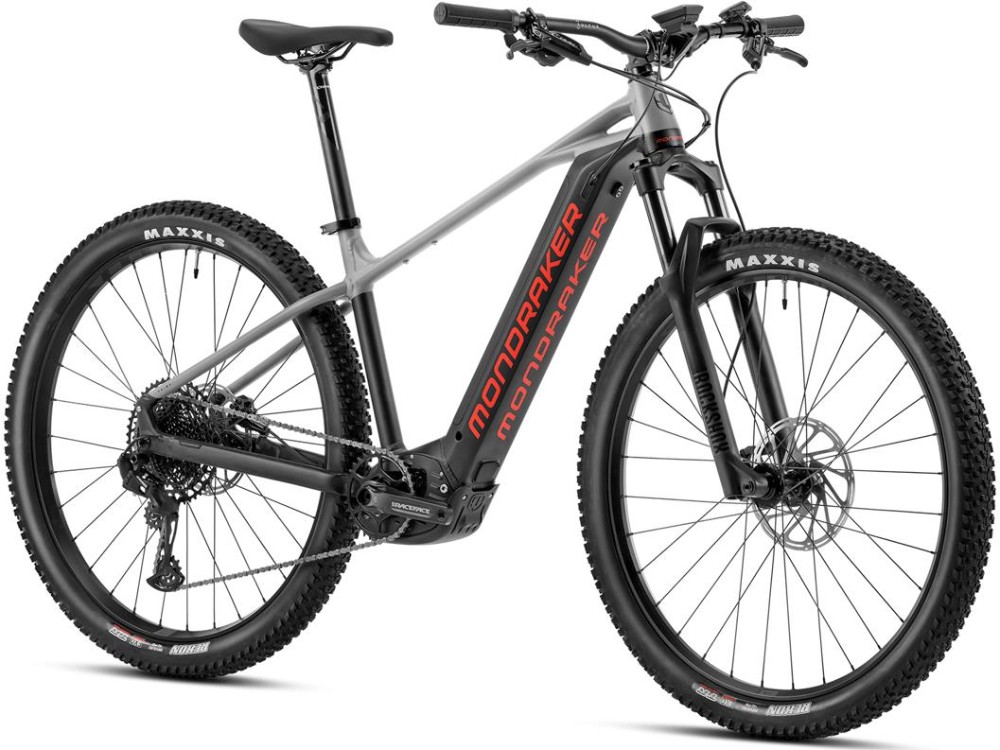

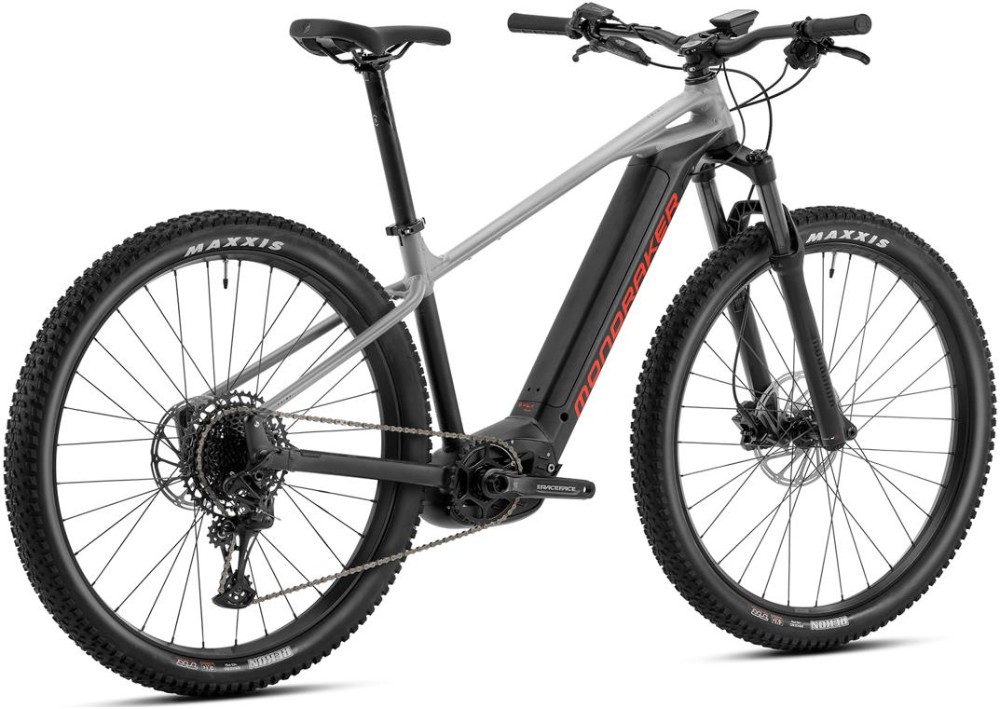

Mondraker Prime 29 2023 - Electric Mountain Bike
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Prime Xtralite 6061 Fully Butted Alloy, Forward Geometry, internal removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor |
Fork | RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 32mm steel stanchions, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
Headset | Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Bars | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Front Brake | Sram Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Rear Brake | Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad |
Brake Lever | Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings |
Rear Mech | SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
Shifters | SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
Speed | 12 |
Rims | MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes |
Front Hub | Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts |
Rear Hub | Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts |
Spokes | CN round stainless steel |
Front Tyre | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Rear Tyre | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
Seat Post | ONOFF Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm |
Saddle | MDK ebike black |
Chainset | Race Face Aeffect ebike, 165mm. Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
Bottom Bracket | Integrated |
Chain | SRAM SX Eagle, 12s, Powerlock |
Cassette | SRAM PG-1210, 11-50T, 12s |
Pedals | Resin Platform |
Battery Size (WH) | Bosch PowerTube 625Wh |
Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 |
User Interface | Bosch Kiox 300 / Bosch Led Remote |
Prime + Sizing
See the table below to find the right size Mondraker Prime +.
Height |
<165cm |
165-170cm |
170-175cm |
175-180cm |
180-185cm |
185-190cm |
190-195cm |
>195cm |
Size |
Small |
Small / Medium |
Medium |
Medium / Large |
Large |
Large / X Large |
Large |
Large |
Read our bike size guide for more information on sizing.
Prime + Geometry
Size |
XS |
S |
M |
L |
XL |
Seat Tube Length |
370mm |
390mm |
430mm |
470mm |
510mm |
Top Tube Length |
580mm |
610mm |
640mm |
670mm |
700mm |
Bottom Bracket Drop |
-60mm |
-60mm |
-60mm |
-60mm |
-60mm |
Bottom Bracket Height |
296mm |
296mm |
296mm |
296mm |
296mm |
Chainstay Length |
485mm |
485mm |
485mm |
485mm |
485mm |
Seat Angle, Actual |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
Seat Tube Angle, Effective |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
73.5 Degrees |
Head Tube Angle |
69 Degrees |
69 Degrees |
69 Degrees |
69 Degrees |
69 Degrees |
Fork Offset |
51mm |
51mm |
51mm |
51mm |
51mm |
Wheelbase |
1142mm |
1177mm |
1208mm |
1238mm |
1269mm |
Head Tube Length |
90mm |
90mm |
100mm |
110mm |
120mm |
Reach |
396mm |
426mm |
453mm |
480mm |
508mm |
Stack |
620mm |
620mm |
629mm |
639mm |
648mm |
