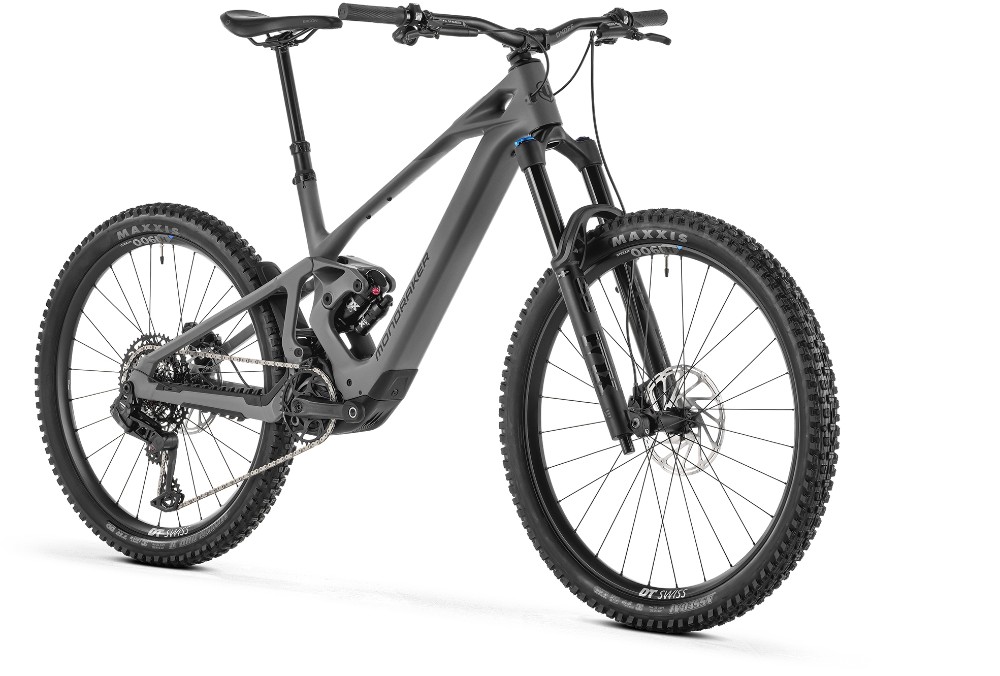

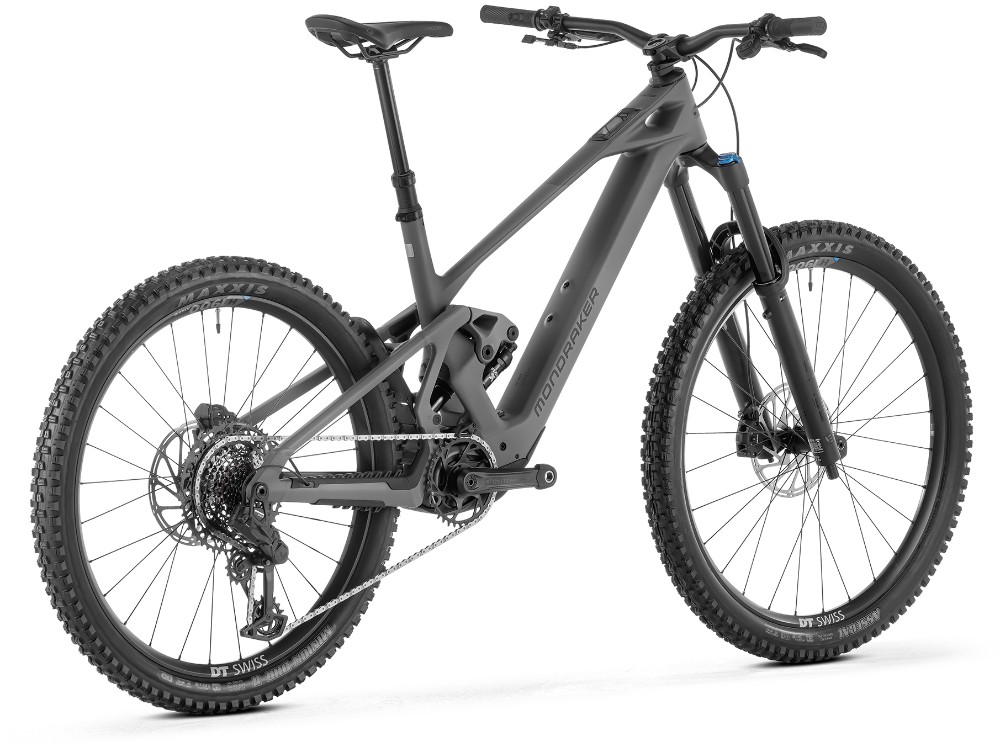

Mondraker Zendit R 2027 - Electric Mountain Bike
The Mondraker Zendit R is a full-suspension electric mountain bike built for enduro riding. Featuring a carbon and aluminium frame, updated ZERO suspension, Avinox M2S motor and SRAM Eagle AXS wireless shifting, it combines powerful assistance with controlled handling on challenging terrain.
Key Features:
- Frame: Stealth Air carbon front, alloy rear, Forward Geometry and updated ZERO suspension.
- Fork: Fox 38 Float GRIP Performance with 170mm travel and e-bike tuning.
- Rear Shock: Fox Float X LV Performance with 165mm rear-wheel travel.
- Drivetrain: SRAM S1000 Eagle AXS T-Type wireless 1x12-speed Transmission, 10-52T cassette.
- Brakes: SRAM Maven Base four-piston hydraulic disc brakes with 200mm rotors.
- Wheels: DT Swiss H 1900 SPLINE mullet wheels with Maxxis Assegai and Minion DHR II tyres.
- Extras: Onoff Pija dropper post, UDH compatibility and integrated battery.
- Available with 0% APR finance.
Drive Information:
- Motor: Avinox M2S mid-drive motor with 105Nm torque and up to 120Nm in Boost mode.
- Battery: Integrated Avinox 800Wh battery.
- User Interface: Avinox DP100 display with left and right BC100 wireless controllers.

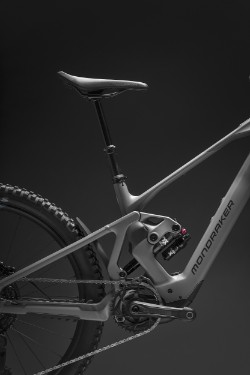

Stealth Air Carbon Frame
The Mondraker Zendit R features a Stealth Air carbon front triangle and aluminium rear, combining low weight with durability. Its Forward Geometry provides stability on steep descents, while the updated ZERO suspension system delivers 165mm of rear-wheel travel for traction and control.
Fox 38 Float GRIP Performance Fork
The Fox 38 Float GRIP Performance fork provides 170mm of travel, with e-bike-specific tuning for demanding terrain. Adjustable compression and rebound damping allow riders to fine-tune the suspension, helping maintain control over rocks, roots and technical descents.

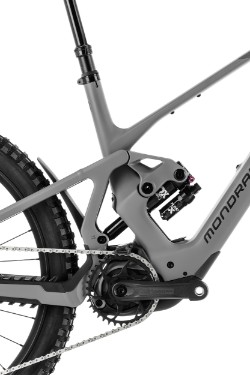

Fox Float X LV Performance Rear Shock
The Fox Float X LV Performance shock works with Mondraker's ZERO suspension system to deliver 165mm of rear-wheel travel. Its air-sprung design provides sensitivity over smaller bumps, with adjustable rebound and a two-position compression lever for tuning suspension performance.
Avinox M2S Motor
The Avinox M2S motor delivers 105Nm of torque, increasing to 120Nm for short periods in Boost mode. Its responsive assistance helps tackle steep climbs and technical terrain, while customisable support settings allow riders to adjust the motor's characteristics to suit their preferences.
Avinox 800Wh Battery
The integrated 800Wh battery provides substantial capacity for longer rides and repeated climbs. Its slim design allows Mondraker to maintain a streamlined frame profile, while actual riding range depends on terrain, rider weight, assistance level and conditions.

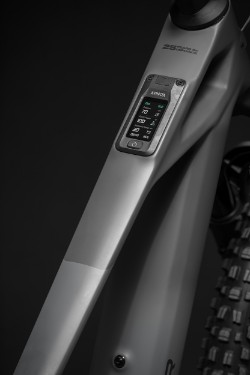

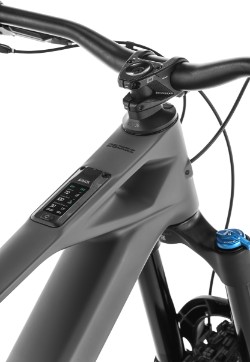

Avinox DP100 Display
The Avinox DP100 display provides access to essential riding information, including battery status, assistance settings and ride data. Left and right BC100 wireless controllers allow riders to adjust settings without removing their hands from the handlebars.
SRAM Eagle AXS Transmission
The SRAM S1000 Eagle AXS T-Type 12-speed drivetrain delivers wireless electronic shifting with a wide 10-52T cassette. Its Transmission design provides consistent derailleur alignment, while the AXS Pod Controller allows riders to change gears with minimal hand movement.
SRAM Maven Base Hydraulic Disc Brakes
SRAM Maven Base four-piston hydraulic disc brakes provide powerful, controlled stopping performance on demanding descents. Paired with 200mm Centerline rotors front and rear, they offer dependable braking with tool-free lever reach adjustment.
DT Swiss Hybrid H 1900 SPLINE Wheels
The DT Swiss Hybrid H 1900 SPLINE aluminium wheels feature 30mm internal rim widths and tubeless-ready construction. Designed for e-MTB riding, they use reinforced components for durability, while the mixed-wheel configuration balances rollover performance with manoeuvrability.
Maxxis Assegai and Minion DHR II Tyres
A Maxxis Assegai 29x2.5WT front tyre uses the 3C MaxxGrip compound and EXO+ protection for traction and cornering control. The rear Minion DHR II 27.5x2.5WT features a 3C MaxxTerra compound and DoubleDown casing for additional durability.
Trail-Focused Components
An 800mm Onoff S6 handlebar and short 30mm stem provide steering control, while the Onoff Pija dropper post allows riders to lower their saddle for technical descents. Adjustable dropper travel varies by frame size, helping provide a suitable fit.
Built for Enduro Adventures
The Mondraker Zendit R combines long-travel Fox suspension, a powerful Avinox drive system and wireless SRAM shifting for demanding mountain bike riding. Whether tackling steep climbs, technical descents or full days exploring the trails, it offers capable handling and powerful pedal assistance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Zendit Stealth Air carbon front/alloy rear; Updated Zero Suspension, 165mm travel; Forward Geometry; internal battery; Boost 12x148 axle, UDH; tapered head tube; Monoblock link; HHG routing; MAX bearings; 15mm axles; exclusive plastic motor covers. |
| Fork | Fox 38 29 Float GRIP Performance, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Front Brake | Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. |
| Rear Brake | Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. |
| Brake Lever | Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust |
| Rear Mech | Sram S1000 Eagle AXS, T-Type, 12s |
| Shifters | Sram Eagle AXS Pod Controller w/discrete clamp, 12s |
| Speed | 12 |
| Rims | DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes. |
| Front Hub | DT Swiss 370, Boost 15x110mm, IS 6 bolts |
| Rear Hub | DT Swiss 370 with 18T Ratchet LN System, Boost 12x148mm, IS 6 bolts, HG freehub |
| Spokes | DT Swiss Straightpull spokes, DT Hybrid I, black |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Seat Post | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
| Saddle | Ergon SM10 E-Mountain Black. |
| Chainset | E.13 Helix Core E*Spec Plus, All sizes: 155mm |
| Chain | Sram GX Eagle T-Type, 12s Flattop, w/Powerlock |
| Cassette | Sram XS 1270, 10-52T, T-Type, 12s |
| Battery Size (WH) | 800 |
| Motor | Avinox M2S |
| User Interface | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
