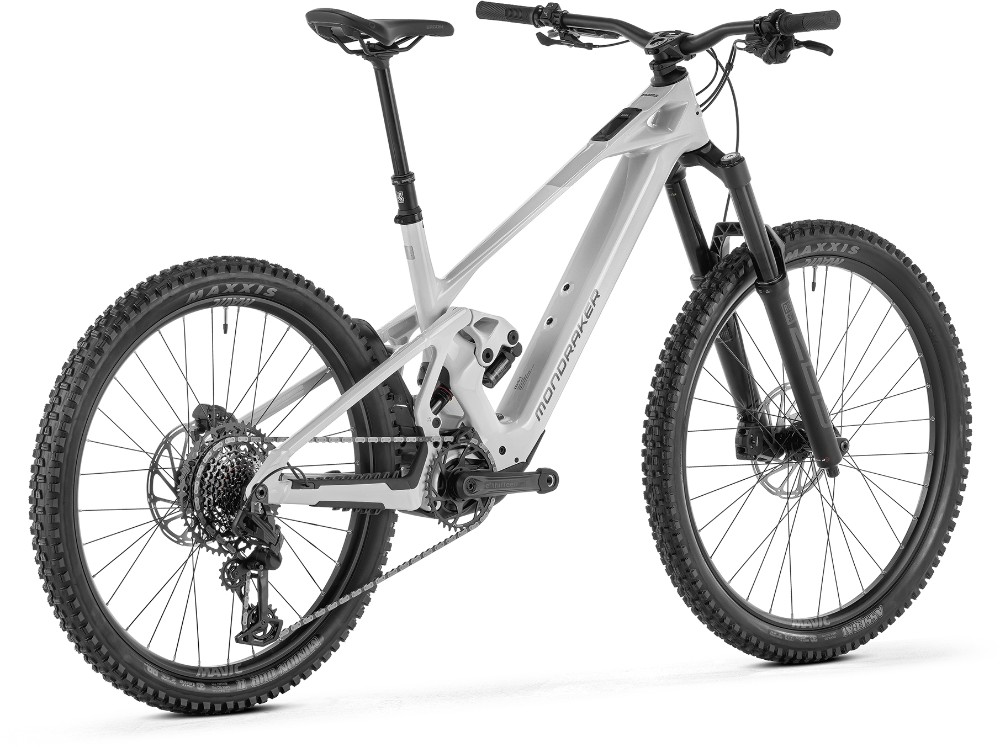

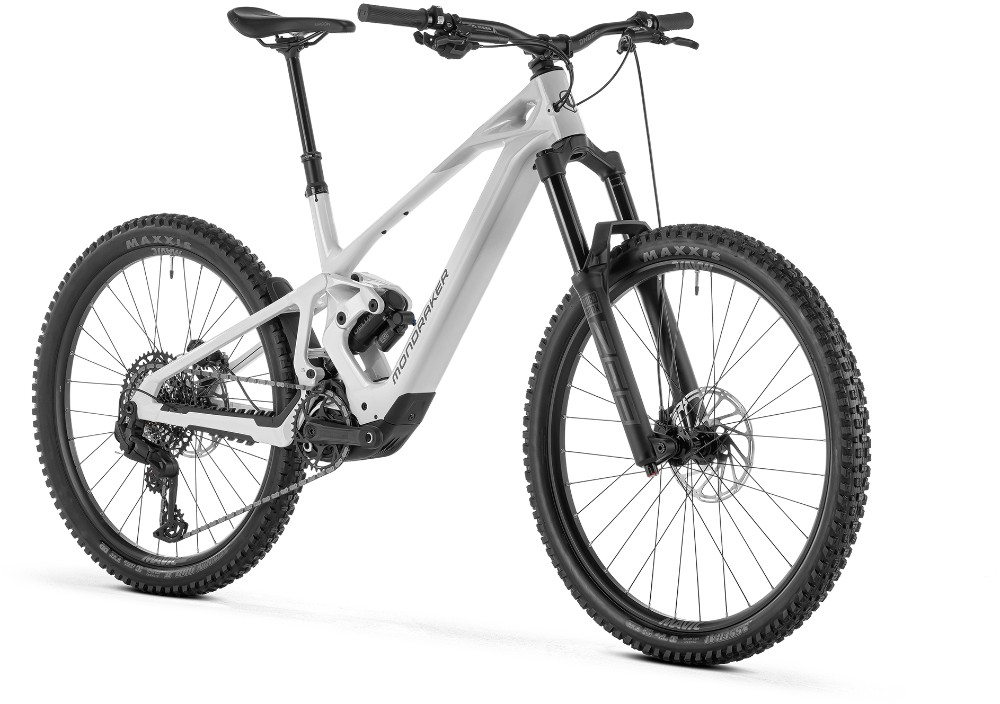

Mondraker Zendit S 2027 - Electric Mountain Bike
The Mondraker Zendit S is a full-suspension electric mountain bike built for demanding enduro riding. Featuring a carbon and aluminium frame, updated ZERO suspension, Avinox M2S motor and SRAM Eagle 70 Transmission, it combines powerful assistance with capable handling on technical terrain.
Key Features:
- Frame: Stealth Air carbon front, alloy rear, Forward Geometry and updated ZERO suspension.
- Fork: RockShox ZEB Base Delta RC with 170mm travel and adjustable damping.
- Rear Shock: RockShox Super Deluxe Select with 165mm rear-wheel travel.
- Drivetrain: SRAM Eagle 70 T-Type mechanical 1x12-speed Transmission with 10-52T cassette.
- Brakes: SRAM Maven Base four-piston hydraulic disc brakes with 200mm rotors.
- Wheels: Mavic E-Access XR30 mullet wheels with Maxxis Assegai and Minion DHR II tyres.
- Extras: X-Fusion Manic TA dropper post, UDH compatibility and integrated battery.
- Available with 0% APR finance.
Drive Information
Motor: Avinox M2S mid-drive motor with up to 120Nm torque in Boost mode.
Battery: Integrated Avinox 800Wh battery.
User Interface: Avinox DP100 display with left and right BC100 wireless controllers.
Stealth Air Carbon Frame

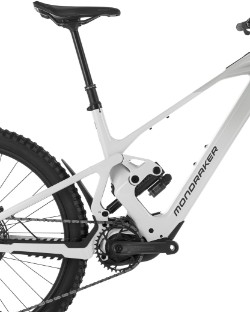

The Mondraker Zendit S features a Stealth Air carbon front triangle and aluminium rear triangle, combining low weight with durability. Its Forward Geometry provides stability on steep descents, while the updated ZERO suspension system delivers 165mm of rear-wheel travel for improved traction and control.
RockShox ZEB Base Delta RC Fork
The RockShox ZEB Base Delta RC fork provides 170mm of travel, helping absorb impacts on rocky trails and technical descents. Adjustable low-speed compression and rebound damping allow riders to fine-tune the suspension to suit their riding style and terrain.
RockShox Super Deluxe Select Rear Shock

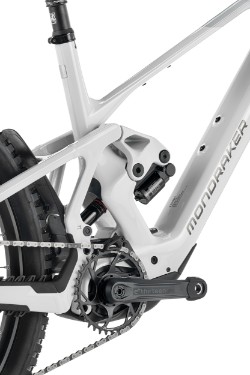

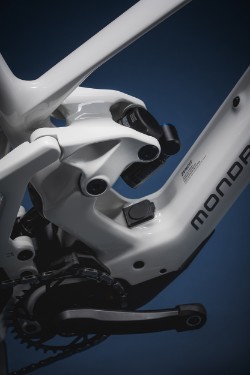

The RockShox Super Deluxe Select shock works with Mondraker's updated ZERO suspension system to provide 165mm of rear-wheel travel. Its air-sprung design helps maintain traction over uneven terrain while providing support through larger impacts.
Avinox M2S Motor
The Avinox M2S motor delivers up to 105Nm of torque, increasing to 120Nm for short periods in Boost mode. Its responsive assistance helps tackle steep climbs and demanding terrain, while customisable support settings allow riders to adjust the motor's characteristics to suit their preferences.
Avinox 800Wh Battery
The integrated 800Wh battery provides substantial capacity for longer rides and repeated climbs. Its slim design allows Mondraker to maintain a streamlined frame profile, while actual riding range depends on terrain, rider weight, assistance level and conditions.
Avinox DP100 Display
The Avinox DP100 display provides access to essential riding information, including battery status, assistance settings and ride data. Left and right BC100 wireless controllers allow riders to adjust settings without removing their hands from the handlebars.
SRAM Eagle 70 Transmission
The SRAM Eagle 70 T-Type mechanical 12-speed drivetrain features a wide-range 10-52T cassette for tackling steep climbs and faster trails. Its Transmission design provides consistent derailleur alignment, while the mechanical shifting system keeps operation straightforward.
SRAM Maven Base Hydraulic Disc Brakes
SRAM Maven Base four-piston hydraulic disc brakes provide powerful, controlled stopping performance on demanding descents. Paired with 200mm Centerline rotors front and rear, they offer dependable braking with tool-free lever reach adjustment.
Mavic E-Access XR30 Wheels
The Mavic E-Access XR30 aluminium wheels feature 30mm internal rim widths and tubeless-ready construction. Their reinforced design is suited to e-MTB riding, while the mixed 29-inch front and 27.5-inch rear configuration balances rollover performance with manoeuvrability.
Maxxis Assegai and Minion DHR II Tyres
A Maxxis Assegai 29x2.5WT front tyre uses the 3C MaxxGrip compound and EXO+ protection for traction and cornering control. The rear Minion DHR II 27.5x2.5WT features a 3C MaxxTerra compound and DoubleDown casing for additional durability.
Trail-Focused Components
An 800mm Onoff S6 handlebar and short 30mm stem provide steering control, while the X-Fusion Manic TA dropper post allows riders to lower their saddle for technical descents. Adjustable dropper travel varies by frame size, helping provide a suitable fit.
Built for Enduro Adventures
The Mondraker Zendit S combines long-travel suspension, a powerful Avinox drive system and durable components for challenging mountain bike riding. Whether tackling steep climbs, technical descents or full days exploring the trails, it offers capable handling and powerful pedal assistance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Zendit Stealth Air carbon front/alloy rear; Updated Zero Suspension, 165mm travel; Forward Geometry; internal battery; Boost 12x148 axle, UDH; tapered head tube; Monoblock link; HHG routing; MAX bearings; 15mm axles; exclusive plastic motor covers. |
| Fork | RockShox ZEB Base 29, Delta RC, 170mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, Extl rebound, air preload |
| Rear Shock | RockShox Super Deluxe Select, 205x65mm, Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock. |
| Stem | Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
| Bars | Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise. |
| Front Brake | Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. |
| Rear Brake | Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads. |
| Brake Lever | Sram Maven Base , Directlink and lever pivot bushings, tools-free reach adjust |
| Rear Mech | Sram 70 Eagle, T-Type, 12s |
| Shifters | Sram Trigger 70, 12s, T-Type Actuation |
| Speed | 12 |
| Rims | Mavic E-Access XR30, aluminium, 30mm internal width, tubeless ready, 32 spokes |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, HG reinforced freehub |
| Spokes | Mavic Reinforced spokes lacing |
| Front Tyre | Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead |
| Seat Post | X-Fusion Manic TA, Travel adjust, diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm), ML size: 469x170mm, L size: 532x200, XL size: 532x200 |
| Saddle | Ergon SM10 E-Mountain Black. |
| Chainset | E.13 Helix Core E*Spec Plus, All sizes: 155mm |
| Chain | Sram 70 T-Type, 12s Flattop, PowerLock |
| Cassette | Sram XS-1270, 10-52T, 12s |
| Battery Size (WH) | 800 |
| Motor | Avinox M2S |
| User Interface | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
