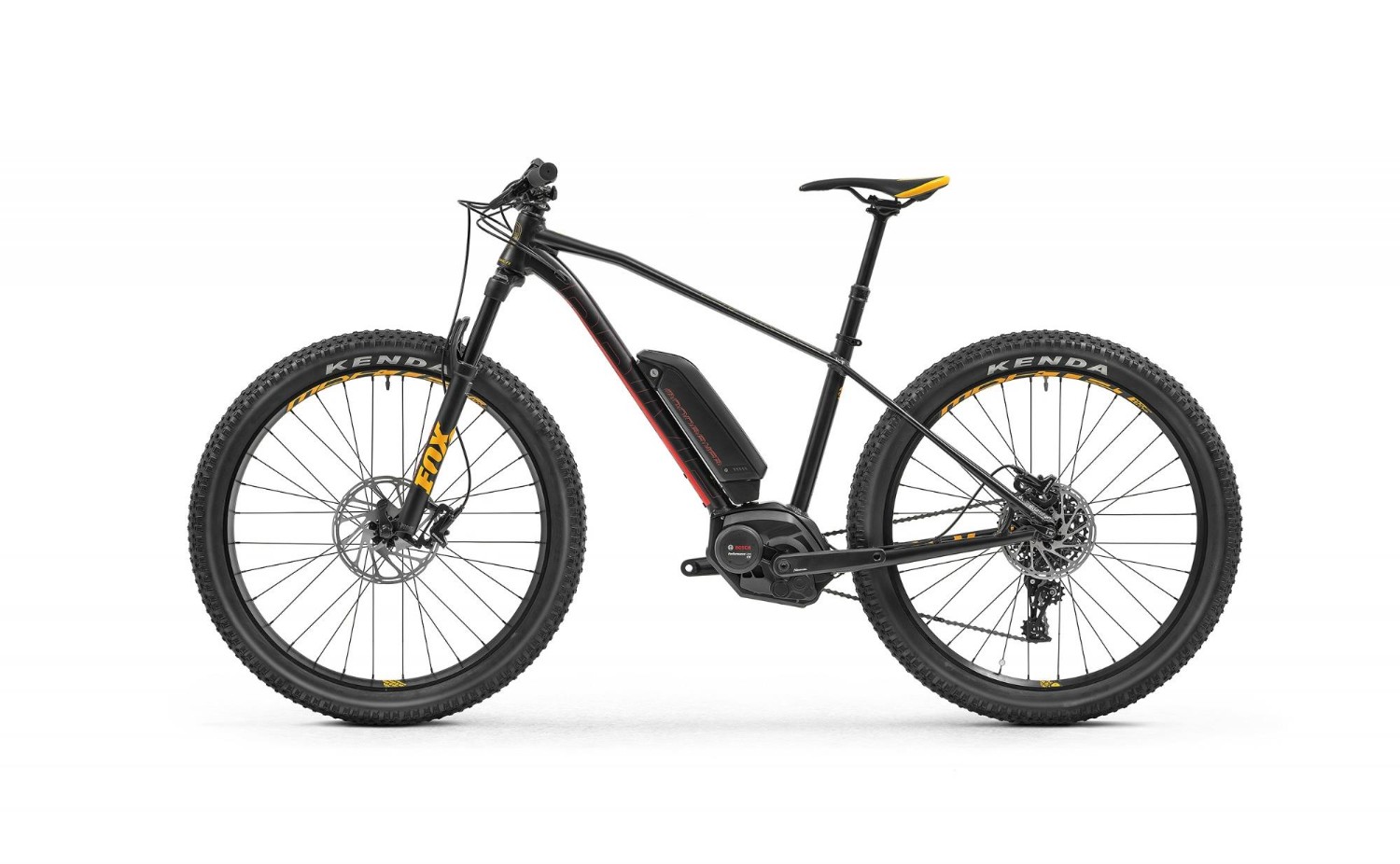

Mondraker e-Crafty R+ 2018 - Electric Mountain Bike
Extra power to ride extra trails. The Mondraker E-Crafty R+ is an electric bike that offers full suspension mountain bike performance with a powerful boost to your natural pedalling power. The Bosch CX drive unit features an integrated battery pack for a slick look. With 150/140mm of RockShox suspension travel and Forward Geometry the E-Crafty is perfect for trail centre adventures.
Key Features:
- High-quality alloy frame with forward geometry for a confident ride
- RockShox Yari RC fork offers 150mm of plush suspension travel
- RockShox Super Deluxe R shock controls the 140mm of active rear suspension travel
- SRAM GX 1x10 speed drivetrain for reliable gear shifting
- SRAM Level brakes with large rotors for confident speed control
- Sizes: Small, Medium, Large, X Large
- Colour: Graphite / Black, Light Blue / Black / Flame Red
- The Mondraker E-Crafty R+ is available with 0% APR finance
Drive Information:
- Motor: Bosch Performance Line CX 250w, 75Nm torque
- Battery: Bosch 500Wh – Integrated and removable
- User interface: Purion Performance on-board computer
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on baskets over £99
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
Crafty eBike Sizing
See the table below to find the right size Mondraker Crafty Electric Bike.
|
<165cm |
165 – 170cm |
170 – 175cm |
175-180cm |
180 – 185cm |
185 -190cm |
190 – 195cm |
>195cm |
|
Size |
Small |
Small/Medium |
Medium |
Medium/Large |
Large |
Large/X Large |
X Large |
X Large |
|
Crafty eBike Geometry
|
Frame Size |
Small |
Medium |
Large |
X Large |
A |
Seat Tube Length |
380 |
420mm |
470mm |
500mm |
B |
Top Tube Length |
615mm |
642mm |
667mm |
690mm |
C |
Bottom Bracket Drop |
-19mm |
-19mm |
-19mm |
-19mm |
D |
Bottom Bracket Height |
337mm |
337mm |
337mm |
337mm |
E |
Chain Stay Length |
475mm |
475mm |
475mm |
475mm |
F |
Seat Tube Angle, Actual |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
G |
Seat Tube Angle, Effective |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
74.3 Degrees |
H |
Head Tube |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
65.3 Degrees |
I |
Fork Offset |
44mm |
44mm |
44mm |
44mm |
J |
Wheelbase |
1242mm |
1276mm |
1304mm |
1328mm |
K |
Head Tube Length |
100mm |
120mm |
140mm |
150mm |
L |
Reach |
442mm |
467mm |
487m |
507mm |
M |
Stack |
605mm |
624mm |
642mm |
652mm |
