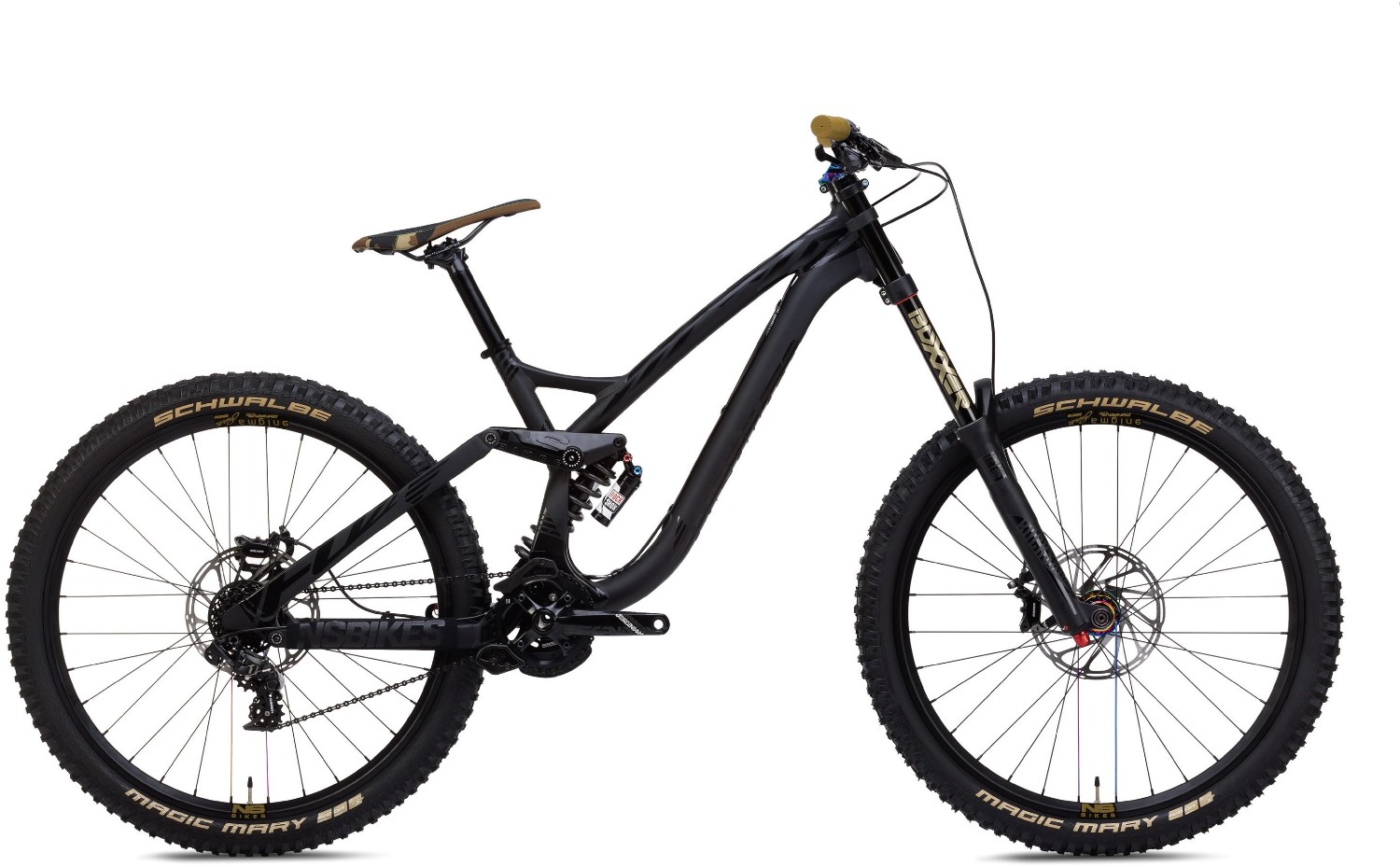

NS Bikes Fuzz 1 DH Mountain Bike 2017 - Downhill Full Suspension MTB
The Fuzz has been thrashed and flipped by Sam Pilgrim and it’s proved itself in the racing environment too, taking podiums at major DH events worldwide. It’s been ridden at the WC and IXS DH Cup by Polish National Champ, Slawek Lukasik and fast boys from the Swiss Downhill Syndicate. The geometry is truly modern - it’s low, slack, has a tight rear end and a long front triangle. The 4-bar Horst link suspension has a significant amount of rearward axle movement which helps to absorb square faced bumps. There is also a fair amount of anti-squat built into the design to counter pedal-induced bob. The shock, which is the most heavy part of the frame is tucked away near the BB to keep the centre of gravity as low as possible.
MAIN CHANGES FOR 2017:
- New model of SRAM DH 7spd X-HORIZON™ drivetrain
- New model of 4piston caliper Sram brakes
- Schwalbe Magic Mary tires
MAIN FEATURES:
- Frame with 203mm (8”) rear wheel travel, dropouts with adjustable CS length
- Rock Shox Boxxer Team fork with 200mm travel
- Rock Shox Vivid R2C coil shock
- All pivot points have durable MAX type bearings
- Aftermarket NS Bikes cockpit: direct mount stem and Evidence Plus handlebar
- 1x7 speed drivetrain with X01® DH X-HORIZON™ derailleur
- Truvativ Descendant cranks with aluminium single chainring
- Mozartt Presto chainguide
- NS Bikes sealed front & rear hubs
- SRAM Guide RE front & rear hydraulic brakes
- light & strong NS Enigma 650B rims
- Available in 3 frame sizes S (16”), M (16”), L (16,5”)
The NS Bikes Fuzz 1 DH 2017 Features are:
Frame: NS Fuzz w/203mm (8”) rear wheel travel, AL6061-T6+AL6066-T6 custom formed and butted tubes, internal cable guide routing option, MAX bearings in all pivots
Rear Shock: Rock Shox Vivid R2C coil shock, 240x76mm (9.5x3.0”) S size: 350x30 spring, M size: 400x30 spring, L size: 450x30 spring
Fork: Rock Shox Boxxer Team fork with 200mm travel, 20mm axle, aluminium steering tube
Headset: FSA semi-integrated tapered ZS44/56, sealed bearings
Bars: NS Evidence Plus (800mm / 31.5” wide)
Stem: NS Direct Mount 31.8 (40-48mm / 2 positions)
Speed: 7
Rear Mech: X01® DH X-HORIZON™
Shifters: SRAM GX 7spd
Chainset: Truvativ Descendant, 36t, 165mm, Chainguide: Mozartt Presto with bashguard
Bottom Bracket: Truvativ GXP 83mm
Cassette: CS PG720 DH 11-25
Chain: KMC, 10 spd
Front Brake: SRAM Guide RE, 200mm rotors
Rear Brake: SRAM Guide RE, 200mm rotors
Rims: NS Enigma 650B 32h
Front Hub: NS Rotary 20 disc (sealed bearing)
Rear Hub: NS Rotary Cassette 157mm (sealed bearings)
Tyres: Magic Mary 27.5 x 2.35 black 60-584 wire bead VSC Downhill Front, Magic Mary 27.5 x 2.35 black 60-584 wire bead VSC Downhill Rear
Seatpost: Kalloy 30.9
Pedals: Not Included
Weight: 17.1 kg (Without Pedals)
Occasionally, without notice, manufacturers change product design and/or specifications.
