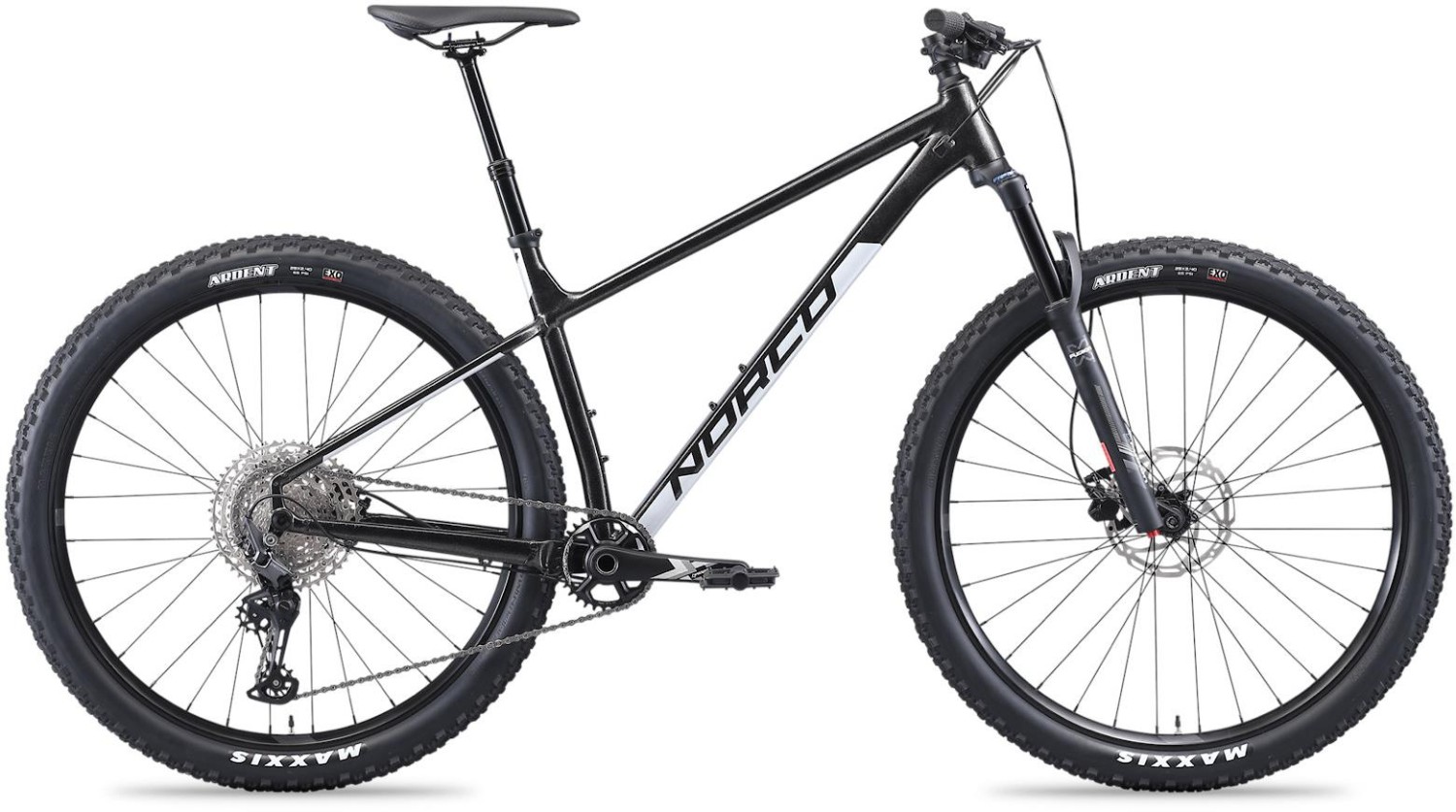

Norco Fluid HT 1 Mountain Bike 2021 - Hardtail MTB
The Norco Fluid HT 1 is a hardtail MTB that offers an evolved fit, handling and ride quality that’ll elevate every trail experience. This singletrack shredder is everything you'd expect form a brand that comes from the heart of mountain bike country, BC Canada
The Fluid HT 1 is the ultimate singletrack adventure hardtail.
Key Features:
- Lightweight 6061 alloy frame with dialled trail geometry
- X-Fusion RC32 air sprung fork offers 120mm of bump soaking suspension travel
- Hydraulic disc brakes for confident stopping power
- Shimano Deore 1x12 speed drivetrain for a wide range of gears
- Dropper post for confident descending and efficient climbing
- Colours: Black/Charcoal
- Sizes: Small, Medium, Large, X Large
- The Norco Fluid HT 1 is available with 0% APR finance
The double-butted aluminium hardtail’s progressive design and size-scaled tubing provides a premium, next-level trail ride for every rider across all frame sizes.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061 Alloy, Butted TT, DT, Internal Routing, 27.5" and 29" Options |
| Fork | X-Fusion RC32 Air, 120mm Travel |
| Headset | Sealed Bearing, Tapered |
| Stem | Alloy 50mm Length, 31.8mm Clamp |
| Bars | X6 Alloy 750mm, 15mm Rise |
| Front Brake | Tektro HD-M275 Hydraulic, Resin Pads, Tektro 180mm |
| Rear Brake | Tektro HD-M275 Hydraulic, Resin Pads, Tektro 160mm |
| Brake Lever | Tektro HD-M275 |
| Rear Mech | Shimano Deore RD-M6100 |
| Shifters | Shimano Deore SL-M6100-R |
| Speed | 12 |
| Rims | Alex DP30 TRS |
| Front Hub | Shimano HB-MT400-B, 15x110mm Boost, Center Lock |
| Rear Hub | Shimano FH-MT410-B, 12x148mm Boost, Micro Spline, Center Lock |
| Spokes | Stainless Black |
| Front Tyre | Maxxis Ardent 2.4" EXO 60TPI |
| Rear Tyre | Maxxis Ardent 2.4" EXO 60TPI |
| Seat Post | TranzX YSP18 Dropper, 31.6mm, 130mm |
| Saddle | Norco XC |
| Chainset | Shimano Deore FC-MT510-1, 32T, 170mm (XS, S), 175mm (M, L, XL) |
| Bottom Bracket | Shimano Sealed Bearing, BSA Threaded |
| Chain | Shimano Deore CN-M6100 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12 Speed |
| Pedals | VP Nylon Flat |
Norco Fluid HT 2021 Size Chart
|
Size |
Height (cm) |
Height (inches) |
|
XS |
146 - 157 |
4’9” – 5’2” |
|
S |
155 - 165 |
5’1” – 5’5” |
|
M |
163 - 173 |
5’4” – 5’9” |
|
L |
172 - 183 |
5’8” – 6’0” |
|
XL |
183 - 193 |
5’11” – 6’4” |
Norco Fluid HT 2021 Geometry Table
|
Size |
XS |
S |
M |
M |
L |
XL |
|
Wheel Size |
27.5" |
27.5" |
27.5" |
29" |
29" |
29" |
|
Travel (front) |
120 |
|||||
|
Reach |
380 |
410 |
440 |
440 |
470 |
500 |
|
Stack |
585 |
594 |
603 |
619 |
628 |
637 |
|
Head Tube Angle |
66.0° |
66.0° |
66.0° |
66.5° |
66.5° |
66.5° |
|
Fork Offset |
42° |
42° |
42° |
51° |
51° |
51° |
|
Seat Tube Length |
370 |
390 |
420 |
420 |
450 |
490 |
|
Effective Seat Tube Angle |
74.5° |
|||||
|
Rear Centre Length |
430 |
|||||
|
Bottom Bracket Drop |
40 |
40 |
40 |
58 |
58 |
58 |
|
Bottom Bracket Height |
320 |
|||||
|
Horizontal Top Tube |
542 |
575 |
607 |
612 |
644 |
677 |
|
Wheelbase |
1097 |
1131 |
1165 |
1166 |
1200 |
1234 |
|
Standover |
598 |
617 |
647 |
661 |
677 |
701 |
|
Head Tube Length |
100 |
110 |
120 |
100 |
110 |
120 |
|
Trail |
114 |
114 |
114 |
109 |
109 |
109 |
|
Recommended Seatpost Drop |
100 |
100 |
130 |
130 |
130 |
130 |
|
Maximum Post Insertion |
250 |
250 |
250 |
250 |
245 |
250 |
|
Stem Length |
50 |
|||||
|
Crank Length |
170 |
170 |
175 |
175 |
175 |
175 |
|
Tire Size |
2.35" - 2.6" |
|||||
|
Water Bottle Compatible |
1 x 750 mL |
|||||
* All lengths in mm unless otherwise stated
