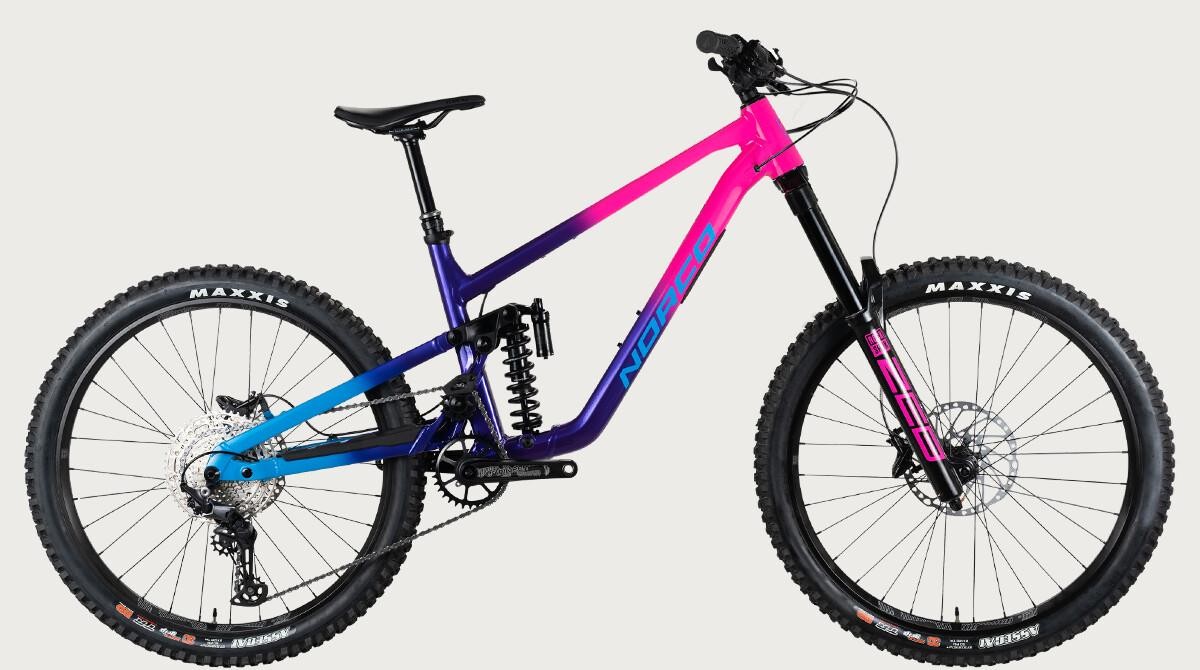

Norco Shore 2 27.5" Mountain Bike 2021 - Downhill Full Suspension MTB
The Shore 2 evolved on the toughest trails on Earth using Norco’s Ride Aligned™ Design System and the latest in suspension and ride engineering, emerging as the ultimate Freeride and Big Mountain rig.
The spirit of Vancouver’s North Shore is built into the Shore 2.
The elevated Horst Link suspension design and integrated idler pulley provides grip and support on the world’s most treacherous trails with minimal pedal kickback when the drop’s a little harsher than you expected.
Occasionally, without notice, manufacturers change product design and/or specifications.
Frame | Aluminum Freeride, 180mm Travel, Ride Aligned™ |
Fork | RockShox Zeb R, Charger, 180mm Travel, 44mm Offset |
Rear Shock | RockShox Super Deluxe Coil Ultimate DH, Custom Tune 225x70mm |
Headset | FSA #57E Sealed Bearing |
Stem | e*thirteen Base, 40mm Length, 35mm Clamp |
Bars | Norco 6061, 800mm, 25mm Rise |
Front Brake | Shimano BR-MT520, 4 piston, Metallic Pads, Shimano RT-64, 203mm |
Rear Brake | Shimano BR-MT520, 4 piston, Metallic Pads, Shimano RT-64, 203mm |
Front Mech | Norco Idler Chain Guide and Lower Guard |
Rear Mech | Shimano Deore RD-M6100 |
Shifters | Shimano Deore SL-M6100-R |
Speed | 12 |
Rims | e*thirteen LG1 DH 27.5" |
Front Hub | Shimano Deore HB-M6010, 15x110mm Boost, Center Lock |
Rear Hub | Shimano Deore FH-MT510-B, 12x148mm Boost, Micro Spline, Center Lock |
Spokes | Stainless Black |
Front Tyre | Maxxis Assegai 2.5", 3C Maxx Grip/DD/TR |
Rear Tyre | Maxxis Assegai 2.5", 3C Maxx Grip/DD/TR |
Seat Post | TranzX YSP-105 Adjustable Dropper, 34.9mm, 150mm (S), 170mm (M), 200mm (L, XL) |
Saddle | WTB Volt 250 Sport |
Chainset | e*thirteen LG1, 30mm, 34T, 170mm |
Bottom Bracket | e*thirteen 30mm, BSA Threaded |
Chain | Shimano Deore CN-M6100 |
Cassette | Shimano Deore CS-M6100-12, 10-51T, 12 Speed |
Pedals | Resin Platform |
Norco Shore 2021 Size Chart
Size |
Height (cm) |
Height (inches) |
S |
155 - 165 |
5’1” – 5’5” |
M |
163 - 173 |
5’4” – 5’9” |
L |
172 - 183 |
5’8” – 6’0” |
XL |
183 - 193 |
5’11” – 6’4” |
Norco Shore 2021 Geometry
Size |
S |
M |
L |
XL |
Wheel Size |
27.5” |
27.5” |
27.5” |
27.5” |
Travel (front/rear) |
180/180 |
|||
Reach |
420 |
450 |
480 |
510 |
Stack |
598 |
611 |
625 |
638 |
Head Tube Angle |
63° |
|||
Fork Offset |
44 |
|||
Seat Tube Length |
365 |
395 |
410 |
455 |
Effective Seat Tube Angle |
77° |
77.3° |
77.7° |
78° |
Rear Centre Length |
435 |
440 |
445 |
450 |
Bottom Bracket Drop |
11 |
|||
Bottom Bracket Height |
346 |
|||
Horizontal Top Tube |
558 |
588 |
617 |
646 |
Wheelbase |
1203 |
1245 |
1286 |
1328 |
Standover |
683 |
680 |
682 |
693 |
Head Tube Length |
100 |
115 |
130 |
145 |
Trail |
131 |
|||
Recommended Seatpost Drop |
150 |
170 |
200 |
200 |
Maximum Post Insertion |
225 |
250 |
270 |
270 |
Stem Length |
40 |
|||
Crank Length |
170 |
|||
Tire Size |
2.35” – 2.6” |
|||
Water Bottle Compatible |
620ml |
750ml |
750ml |
750ml |
