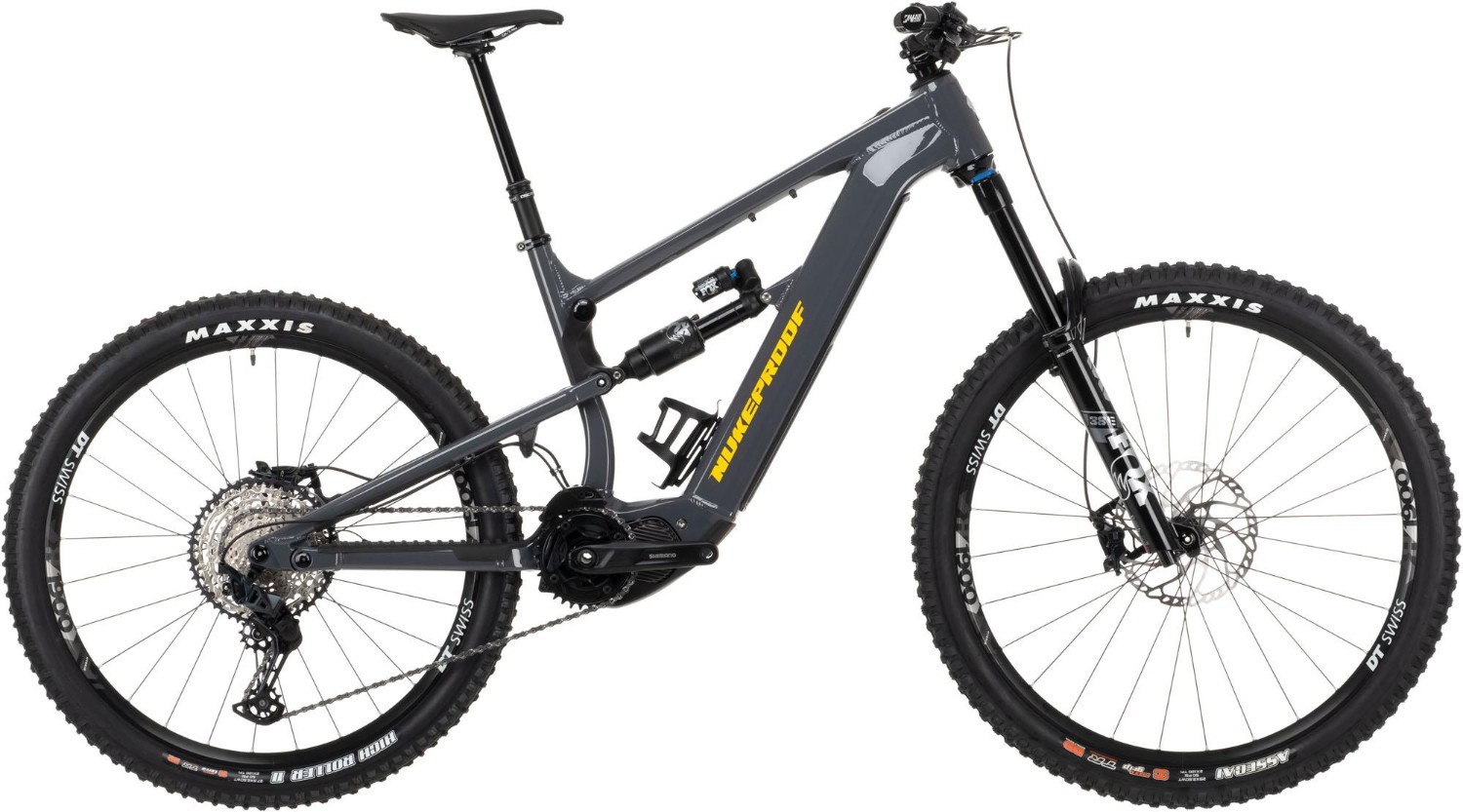

Introducing the Nukeproof Megawatt 297 Elite. Since 2009 the Nukeproof Mega has been on a journey of constant development. From iteration to iteration, small incremental improvements gradually add up to become today’s thoroughbred Enduro race bike. Bike design and technology moves fast to keep up with the evolving demands of our customers and racers. If you don’t keep up, then you get left behind.
- Alloy custom triple butted hydro-formed tube set frame
- 27.5/29" wheels, 170mm of Fox suspension front and rear
- Shimano SLX 1x12 drivetrain with powerful 4-pot SLX brakes
- DT Swiss H1900 wheelset with Maxxis Double down tyres
- Colours: Bullet Grey
- Sizes: S, M, L, XL, XXL
- The Nukeproof Megawatt 297 Elite is available with 0% APR finance
- Motor: Shimano STEPS EP8, 250W, 85Nm
- Battery: Shimano STEPS 630Wh
- User interface/remote: Shimano EM800 with Shimano EM800-L Assist Switch
- Connectivity: Shimano E-TUBE PROJECT App
The notable absence in the Nukeproof range has been a bike with an motor. When choosing a motor/ battery partner, Nukeproof’s top priority was to partner with the right specialist. A brand that could offer leading edge technology to help create competitive product whilst having the infrastructure in place to support customers during ownership. It’s taken a while for Nukeproof to join the e-Bike game, but the time has come and Nukeproof are proud to introduce the all new Nukeproof Megawatt.
Designed and developed from the outset alongside the latest Mega, the Megawatt retains the descending characteristics that has taken 4 Enduro World Series crowns but combines this with the latest Shimano Steps EP8 motor technology. The Megawatt Shares the race proven geometry of the Nukeproof Mega, but in an all new mixed wheel size platform. The 29” wheel up front, maximises grip and rolling efficiency whilst the 27.5” wheel out back, allows the bike to run shorter chainstays to ensure nimble handling and maximise manoeuvrability. The rear chainstays also benefit from 3d moulded chain guard to keep the frame protected and running quiet allowing you to concentrate on the trail ahead. The Megawatt is offered in Size Small through to XXL and shares Nukeproof’s “saddle offset” philosophy with the Mega. This means steeper seat angles as sizes increase, to optimise the riding position and maximise comfort and efficiency.
A custom tuned rear shock (170mm of rear travel) on all models ensures that the Megawatt is super supple of the top whilst remaining progressive and supportive through the rest of the travel. The Anti Squat too is optimised to create a bike that offers ultimate performance on the descends and then returns you back to the top efficiently for more. The new Mega also has a wide SAG range (30%-35%) to allow you; the rider, to tune the characteristics of the bike to your preferences.
The Megawatt was designed from the outset to optimise the performance of the Shimano EP8 Motor and battery. Crafted from hydroformed 6061 aluminium, the Megawatt shares some characteristics and tube shapes with its Mega sibling but features several notable differences. An all-new one-piece cast Bottom Bracket shell has been engineered to house the Shimano Steps EP8 Motor. The downtube to has been designed to maximise strength and rigidity whilst providing easy access to remove the internal battery for charging or transportation. The Megawatt is offered in three specifications; Comp, Elite or Factory, to suit your riding needs and budget. Please see individual spec’s for full details. The Factory and Elite use a 630Wh Shimano battery, whilst the Comp uses a 504Wh battery. Both battery sizes will fit in each model with a secure and easy to flip mount system in all models. All bikes include a Shimano battery charger and adaptor to allow both on bike and off the bike charging using either the Euro or UK charging cables included.
Nukeproof are proud to introduce the Megawatt: A Mega with a motor. Designed so you can maximise the amount of time spent descending by getting you back to the top faster, again and again (and again).
- Intended Use: All Mountain/ Enduro/ DH
- Available in Sizes Small to XXL
- 170mm of Rear Travel
- Shimano EP8 Drive System
- Full Custom Triple Butted and Hydroformed 6061-T6 Aluminium, Including Forged Aluminium parts.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free Cycle Plan insurance voucher (8 weeks)
Occasionally, without notice, manufacturers change product design and/or specifications.
|Frame:||Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible.|
|Fork:||Fox 38 Float, 29”, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, 1.5T Steerer, 68mm Crown, Black (SHORT ID: D6G2)|
|Rear Shock:||Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom CL, RM, Rezi CM tune, 230x62.5mm, Bearing End, 2x 0.3 spacer fitted.|
|Headset:||Acros AZX-589R1, sealed bearings, ZS56/28.6 – ZS66/39|
|Stem:||Nukeproof Horizon, 50mm, Black|
|Bars:||Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm, XXL800mm)|
|Front Brake:||Shimano SLX M7120, 4 Pot Brake, Metallic Pads with Fins|
|Rear Brake:||Shimano SLX M7120, 4 Pot Brake, Metallic Pads with Fins|
|Rear Mech:||Shimano SLX M7100, SGS 12-Speed, Shadow Plus|
|Shifters:||Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV|
|Rims:||Front Wheel: DT Swiss H1900 SPLINE,29"", 6 Bolt, 110x15mm // Rear Wheel: DT Swiss H1900 SPLINE, 27.5"", 6 Bolt, Shimano Microspline Driver, 148x12mm|
|Front Tyre:||Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR,|
|Rear Tyre:||Maxxis High Roller II 27.5”x2.5 WT 3C MaxxTerra/DD/TR|
|Seat Post:||Brand X Ascend internal w Shimano SL-MT500-IL Remote lever, S:125mm drop; M:150mm drop; L/XL/XXL:170mm drop|
|Saddle:||Nukeproof Horizon Enduro, Black|
|Chain:||Shimano SLX M7100 HG 12-speed Inc Quicklink|
|Cassette:||Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T|
|Motor:||Shimano STEPS EP8, 250W, 85Nm|
|User Interface:||Shimano EM800 with Shimano EM800-L Assist Switch|
Megawatt Sizing & Geometry
Nukeproof Megawatt 275 2021 Size Chart
159cm – 169cm
5’2” – 5’7”
167cm – 177cm
5’6” – 5’10”
175cm – 185cm
5’9” – 6’
183cm – 193cm
6’ – 6’4”
191cm – 201cm
6’3” – 6’7”
What size frame do I need if I am between sizes? - read here
Nukeproof Megawatt 275 2021 Geometry
|EFFECTIVE TOP TUBE LENGTH||577.05||597.05||612.15||634.06||663.21|
|EFFECTIVE SEATTUBE ANGLE||77.5||77.5||78||78||78|
|SEATTUBE ANGLE (ACTUAL)||71||71||72||72||72|
|SADDLE HEIGHT AT SADDLE OFFSET||650||700||750||800||850|
|SADDLE OFFSET AT SADDLE HEIGHT||139.98||156.36||163.32||178.84||194.35|
|BOTTOM BRACKET DROP (FRONT / REAR)||30/10||30/10||30/10||30/10||30/10|
|BOTTOM BRACKET HEIGHT||345||345||345||345||345|
|STAND OVER HEIGHT||734.8||731.06||730.01||732.88||732.69|
|AXLE TO CROWN||582||582||582||582||582|
|MAXIMUM SEATPOST INSERT||216||248||275||305||340|
Please note, all size information is provided as a guide - if you're unsure or need any further assistance you can call us on 01792 799508 ... we're happy to help!
