Onza Jackpot 27.5" Mountain Bike 2017 - Hardtail MTB

Name: Onza Jackpot 27.5" Mountain Bike 2017 - Hardtail MTB
Brand: Onza

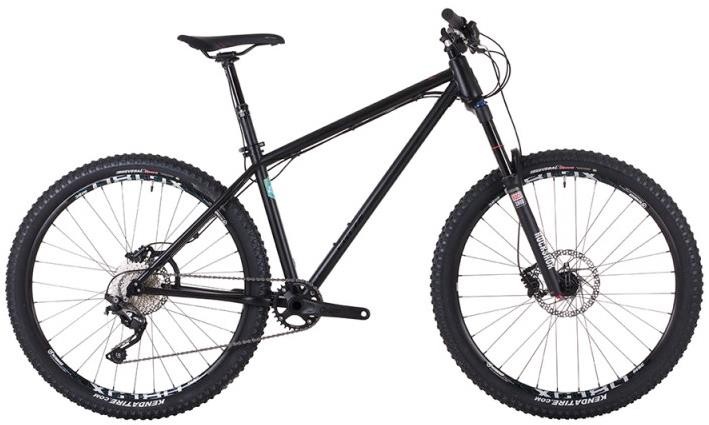

Onza Jackpot 27.5" Mountain Bike 2017 - Hardtail MTB product image

After two years of refining and prototyping we have finally hit the Jack Pot .

Designed for aggressive UK trails and a rider that wants a playful bike that will not only seek out the gnarliest lines, rail berms and be fun on descents but be able climb back to the top quickly and efficiently.

Onza carefully selected their own blend of "Flawless" 4130 cromoly with their premium frame builder to meet their testers exacting standards. The Snake skin welds and light weight double butted tubing were essential elements in creating this high calibre frame. The electrodeposition treatment they have used on this frame protects the frame from rusting from the inside out. A simple must when you have internal routing for a stealth dropper seat post.

The frame is supplied with rubber grommets to keep your cabling neat and tidy and blanks if you decide to take them out. The pronounced tapered head tube keeps steering inputs stiff and responsive and the PF30 bottom bracket will allow future upgrades to our eccentric PFBB that is currently in development allowing you to convert the Jackpot or Payoff frame into a single speed rig via our dream build program. The unique one piece yoke adds stiffness to the BB area while still allowing for the playful resilient feel that steel is renowned for.

To complete the frame details we selected stiff CNC machined bolt thru 12mm rear drop outs and comfortable snaked forged stays. Combine all this with Progressive modern geometry and a carefully selected part list and you have the ultimate UK hardtail.

Key Features:

Rock Shox Revelations 150mm travel

Shimano SLX 1 x 10 with a 32 chain ring and 11t-36t cassette

Rock Shox Reverb seat post

Onza finishing kit

Fizik Gobi saddle

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Onza double butted flawless Cro-Mo 4130 27.5 Tapered headtube, 12mm bolt thru, 1 piece forged yoke
Fork	Rock Shox Revelation solo air 150mm with tapered alloy steerer tube amd 15mm thru axle
Headset	FSA Internal tapered
Stem	Onza 6061 alloy 60mm
Bars	Onza 6061 alloy 760mm
Front Brake	Shimano BR 447
Rear Brake	Shimano BR 447
Rear Mech	Shimano SLX Shadow (Clutch)
Shifters	Shimano SLX
Speed	10
Rims	Weinmann XC180 Disc
Front Tyre	Kenda Nevegal X Sport 27.5 x 2.35
Rear Tyre	Kenda Nevegal X Sport 27.5 x 2.35
Seat Post	Rock Shox Reverb
Chainset	Onza 1 x with buzz saw thick thin 32 T chain ring
Bottom Bracket	PF30
Chain	10 Speed Shimano
Cassette	10 Speed 11-34
Pedals	Basic Resin Flat
Weight	13.4kg

Mountain Bike Size Chart

Height	Bike Size	Mountain Bike Size
4’8” – 5’1” 143 – 155 cm	XXS	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	22” (56 cm)

* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.

Read our bike size guide for more information on sizing.
