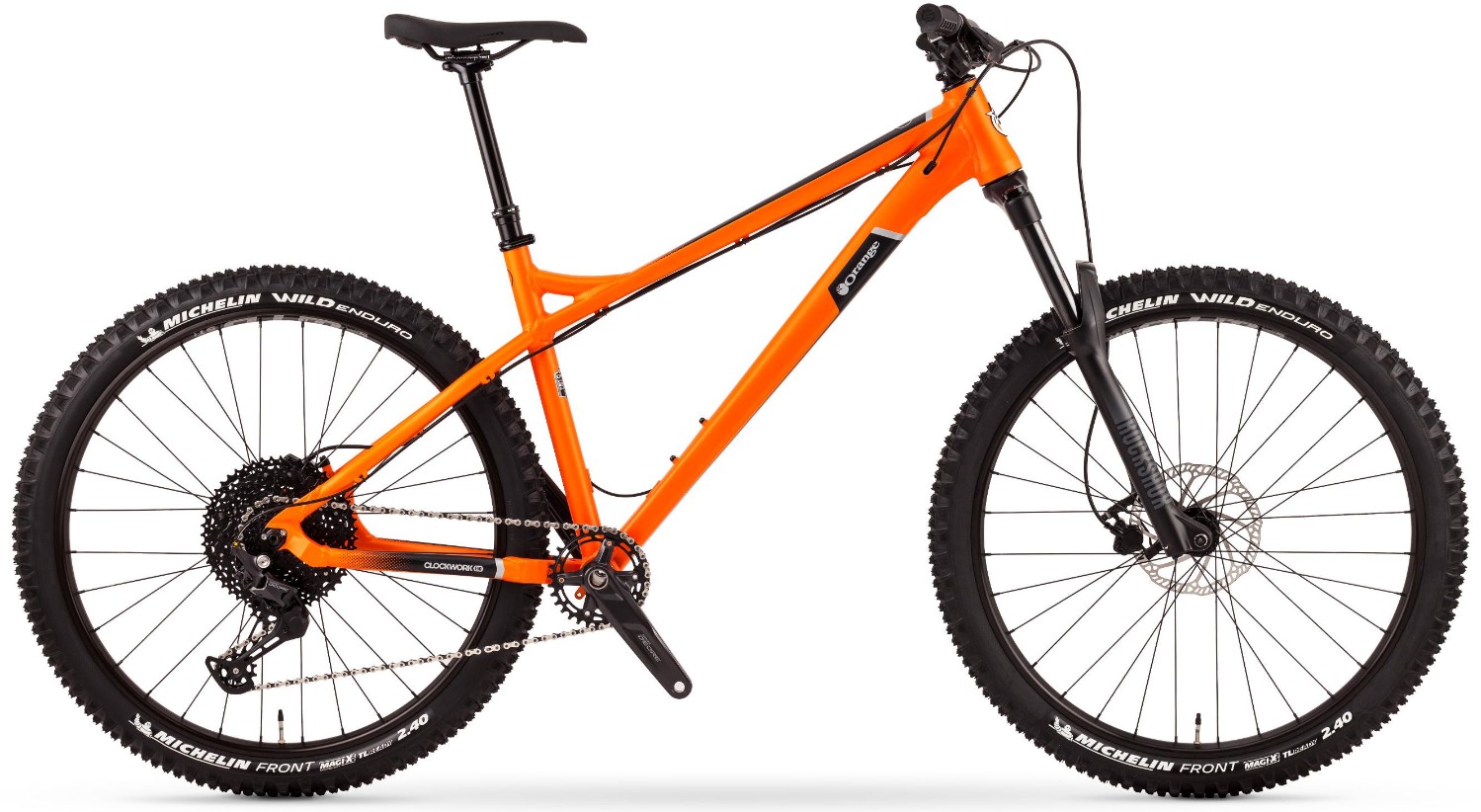

Orange Clockwork Evo Comp 27.5" Mountain Bike 2023 - Hardtail MTB
The Orange Clockwork EVO hardtail mountain bike is an EVO in every sense of the word, designed to be progressive and push boundaries of what's acceptable of a "do it all" hardtail. A fast, responsive chassis paired with geometry that encourages speed on the trail whether it points up or down. In essence a ride with an enduro temperament with a trail bike physique.
Key features:
- 6061-T6 Custom Butted OS Aluminium Tube frame
- RockShox Recon Silver with 140mm of bump soaking travel
- Bolt through 12 x 148 rear hub spacing
- 5 year frame warranty with Limited Lifetime Crash Replacement
- Colours: Satin Slate / Cool Grey, Satin Forest / Oasis, Gloss Blaze / Ice Papaya, Gloss White Mountains / Dusty Turquoise
- Sizes: S, M, L, Xl, XXL
- The Orange Clockwork Evo Comp is available with 0% APR finance
For the new 2023 model, we have pushed the geometry a little further with a 64.5° head angle and 75.5° seatangle, setting the rider more into the middle of the bike, but retaining the 'pop' we like from an Orange trail hardtail. The chainstays now feature a one piece yoke to add strength and tyre/mud clearance, and we finish up with neat CNCed cable grommets for the internally run gear cables and and brake hoses.
If you're looking for a fast, lean and wild riding trail hardtail this is the bike for you.
The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.
All Tredz bikes are:
- Fully built & ready to ride
- Fully checked & tested by Cytech qualified mechanics
- Available with 0% APR finance on any basket over £99
- UK price match guarantee
- 365 day no hassle returns
- Free delivery in the UK Mainland on a date that suits you
In the box with every Tredz bike is:
- Free Tredz 9 key trail tool
- Free Tredz pedal spanner
- Free basic pedals
- Tredz drawstring kit bag
- 16 point quality control check sheet
- Basic bike setup instructions
- Free cycle insurance voucher
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 6061-T6 Custom Butted OS Aluminium Tube |
| Fork | RockShox Recon Silver 140mm 27.5 |
| Headset | FPD 44mm / 56mm zerostack |
| Stem | Strange Stalk 40mm |
| Bars | Strange 1" Rise 780mm |
| Front Brake | Clarks M2 180mm |
| Rear Brake | Clarks M2 160mm |
| Rear Mech | Shimano Deore 11spd |
| Shifters | Shimano Deore 11spd |
| Speed | 11 |
| Rims | WTB ST i30 on Strange 27 |
| Front Tyre | Michelin Wild Enduro 2.4 |
| Rear Tyre | Michelin Wild Enduro 2.4 |
| Seat Post | KS Ragei 150/170mm Drop |
| Saddle | WTB Volt Steel |
| Chainset | Strange Prowheel Charm 170mm Narrow Wide 32t |
| Bottom Bracket | Prowheel |
| Chain | KMC 11spd |
| Cassette | Shimano Deore 11-51T 11spd |
| Pedals | Resin Platform |
Clockwork Evo 27.5" Sizing
See the table below to find the right size Orange Clockwork Evo 27.5".
|
Size |
Feet and inches |
|
S |
5’ 4” – 5’ 7” |
|
M |
5’ 6” – 5’ 10” |
|
L |
5’ 9” – 6’ 1” |
|
XL |
6’ 0” – 6’ 5” |
Read our bike size guide for more information on sizing.
Clockwork Evo 27.5" Geometry
|
|
S |
M |
L |
XL |
|
Seat Tube Length |
16” |
17” |
18” |
20” |
|
Head Angle |
66 |
66 |
66 |
66 |
|
Seat Angle |
74 |
74 |
74 |
74 |
|
Top Tube |
612 |
625 |
638 |
650 |
|
Effective Top Tube |
610 |
630 |
650 |
670 |
|
BB Height (Axle diff) |
-50 |
-50 |
-50 |
-50 |
|
BB Height (from ground) |
304 |
304 |
304 |
304 |
|
Chainstay |
425 |
425 |
425 |
425 |
|
Head Tube |
100 |
110 |
110 |
120 |
|
Wheel Base |
1158 |
1178 |
1198 |
1220 |
|
Reach |
424 |
450 |
473 |
490 |
|
Stack |
614 |
621 |
622 |
630 |
|
Stem Length |
50 |
50 |
50 |
50 |
|
Standover |
658 |
676 |
694 |
730 |
Read our Mountain Bike Geometry Explained guide for more information on MTB geometry.
