Orbea Alma H50 27.5" Mountain Bike 2019 - Hardtail MTB

Name: Orbea Alma H50 27.5" Mountain Bike 2019 - Hardtail MTB
Brand: Orbea

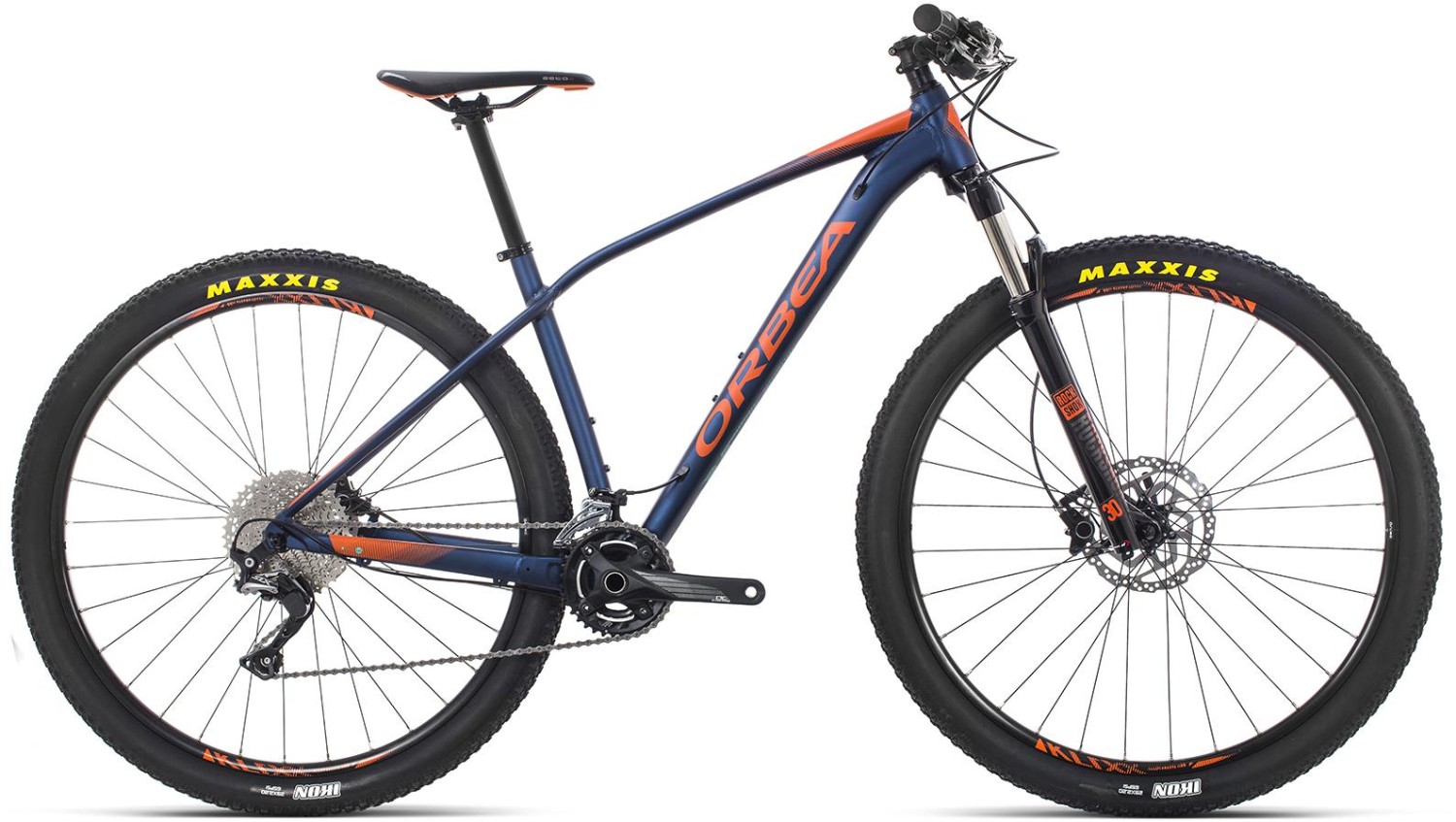

Orbea Alma H50 27.5" Mountain Bike 2019 - Hardtail MTB product image

Alma is for the quickest lap times. The steepest climbs. Alma is for the strongest accelerations and highest altitudes. Alma is for the biggest stages, the loudest fans and the toughest riders. Alma is for the fiercest competitors, the athletes who accept nothing less than superlatives. When a few fleeting seconds separate fast from faster, Alma is for the fastest.

Monocoque - Alma uses the most technologically advanced carbon construction available to make the most sophisticated frame possible - A complex and painstaking process with results you will appreciate on the trail.

4X4 Dynamic Structure - External forces on the frame under the rider's weight - Cornering stresses or vibration from impacts - have a large effect on control and traction. Creating a natural flex point in the top tube by adding a fourth bend offers an efficient, smooth ride that feels like floating over rough terrain.

New 29 S - Instead if trying to squeeze everybody on a single wheel size, we offer Big Wheels that are scaled to fit riders of any height. BWC offers five frames in two wheel sizes - Small and Medium frames with 27.5" wheels, Small, Medium, Large and XL frames with 29" wheels

Boost - Alma becomes more precise and responsive with 420/430mm chainstays and the increased rigidity of a 12mm through-axle system. The Boost 148mm which moves the chainline outboard by 3mm and increases the space available at the bottom bracket

World Cup Geometry - Refinements of Alma's World Cup geometry reflects the evolutions of elite racing. A slacker head angle (69.3/69.5 Degrees) provides stability on increasingly demanding tracks. A steeper seat angle and lower stack height increases handling precision and pedalling efficiency. Shorter (420/430mm) chainstays deliver maximum agility with instability.

*Please note: Images are for display purposes only - Please refer to bike specifications for information on componentry.

Occasionally, without notice, manufacturers change product design and/or specifications.

No longer available

Sorry you missed the Orbea Alma H50 27.5" Mountain Bike 2019 - Hardtail MTB.

This product is no longer available.

We have lots of other options available for you:

Search all Orbea hardtail mtb Search similarly priced hardtail mtb (£800-£1,000)

Height (cm)	Height (in)	Size
155 – 170	5’ 1” – 5’ 7”	S – 27.5”
155 – 170	5’ 1” – 5’ 7”	S – 29
165 – 180	5’ 5” – 5’ 11”	M – 27.5”
165 – 180	5’ 5” – 5’ 11”	M –29
178 – 190	5’ 10” – 6’ 3”	L –29
185 - 198	6’ 1” – 6’ 6”	XL - 29

	S - 27.5	S - 29	M - 27.5	M - 29	L - 29	XL - 29
Seat Tube	400	400	445	445	483	533
Top Tube (EFF)	550	557	582	588	616	640
Head Tube	95	90	105	95	105	120
Chain Stay	420	430	420	430	430	430
BB Height	312	309	312	309	309	309
BB Drop	43	61	43	61	61	61
Wheelbase	1045	1061	1078	1092	1121	1146
Head Angle	69.3	69.5	69.3	69.5	69.5	69.5
Seat Angle	73.5
Standover	716	715	735	735	741	802
Reach	380	380	409	409	435	455
Stack	573	597	583	602	611	625
Fork Length	487.7	500.8	487.7	500.8	500.8	500.8
Rake	44
