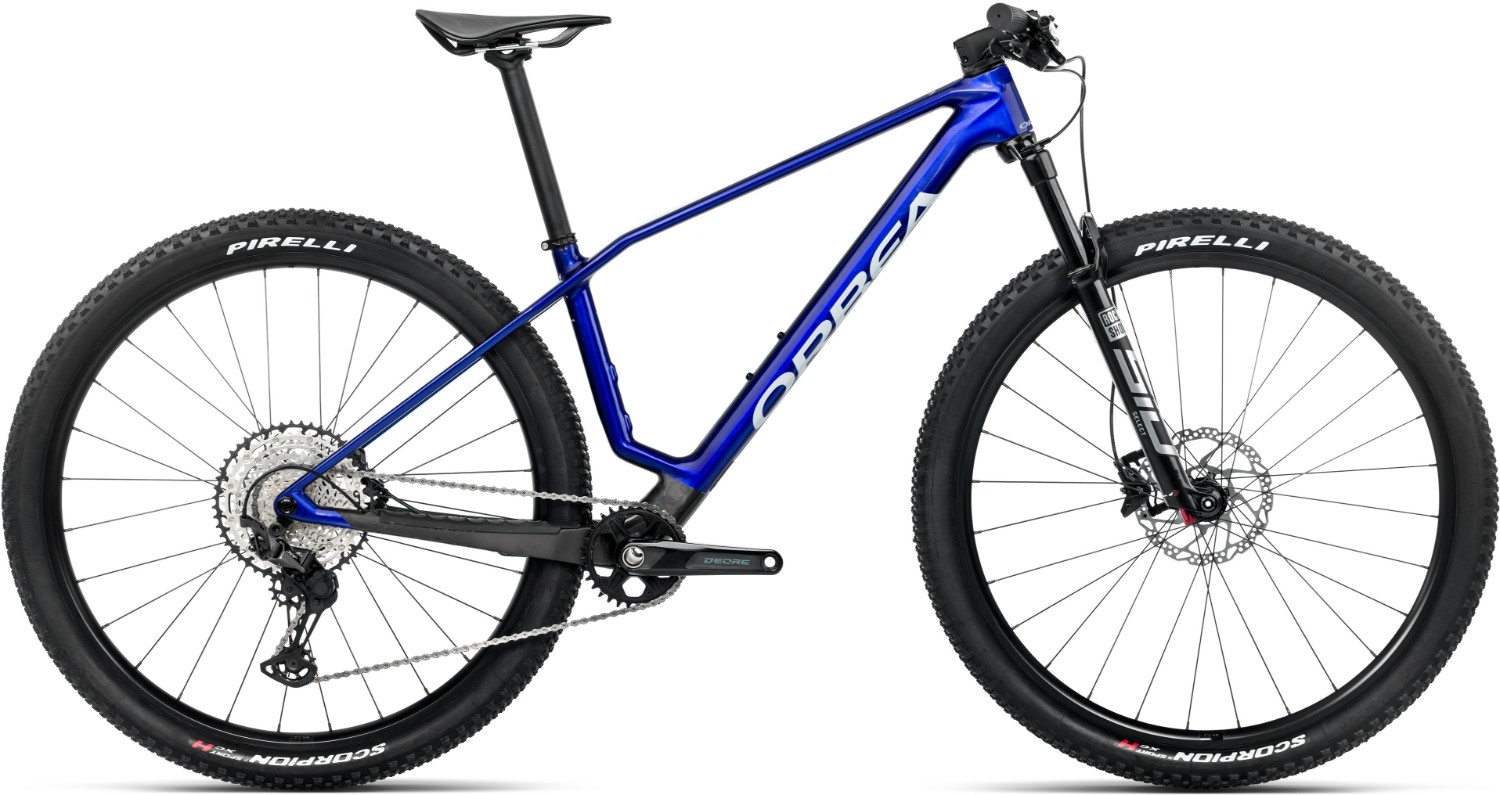

Orbea Alma M30 Mountain Bike 2025 - Hardtail MTB
The Orbea Alma M30 is a no-compromise XC hardtail designed for riders who crave speed and efficiency. Its OMR carbon frame is engineered to be lightweight yet incredibly stiff, ensuring that every watt of power goes straight to the rear wheel. The frame's X-Fader technology helps dampen vibrations, reducing fatigue and keeping you fresher for longer rides.
Key Features:
- OMR Carbon Frame – Lightweight and stiff for efficient power transfer.
- RockShox SID SL Select Fork – 110mm travel for precise handling and control.
- Shimano XT 12-Speed Drivetrain – Smooth and reliable gear shifts.
- Shimano MT410 Brakes – Hydraulic disc brakes for consistent stopping power.
- 29” Wheels with Pirelli Tyres – For grip and speed on varied terrain.
- X-Fader Technology – Reduces trail vibrations for less fatigue.
- Available with 0% APR finance – Flexible payment options for your dream XC bike.
At the front, the RockShox SID SL Select fork provides 110mm of travel, smoothing out roots, rocks, and other trail obstacles with ease. The Shimano XT 12-speed drivetrain delivers precise shifting across a wide range of gears, making climbs and descents feel effortless.
The Alma M30’s geometry strikes a balance between stability and agility, ensuring confident handling on technical descents without sacrificing speed on climbs. With tyre clearance for 2.4” rubber, you can run higher volume tyres for better grip and control when needed.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Orbea Alma Carbon OMR, Boost 12x148, Internal cable routing. |
| Fork | FS SID SL SELECT 2 POSITION CHARGER RL REMOTE 29" BOOST™ 15X110 MXL STEALTH DEBONAIR 110MM GLOSS BLACK 44MM OFFSET 1.5" TAPER D1 |
| Headset | Alloy 1-1/2", Black Oxidated Bearing |
| Stem | OC Mountain Performance MP21, -6º |
| Bars | Alloy, 31.8mm, Flat, 740mm, Sweep 9 |
| Front Brake | Shimano MT410 Hydraulic Disc |
| Rear Brake | Shimano MT410 Hydraulic Disc |
| Rear Mech | Shimano XT M8100 SGS Shadow Plus |
| Shifters | Shimano Deore M6100 |
| Speed | 12 |
| Rims | Alloy, 30c, 28H, TLR |
| Front Tyre | Pirelli Scorpion Sport XC H 2.40" 60TPI ProWall/TLR |
| Rear Tyre | Pirelli Scorpion Sport XC H 2.40" 60TPI ProWall/TLR |
| Seat Post | SP04, Alloy, forged head, 31,6mm, Setback 0 |
| Saddle | Selle Italia Model X FecAlloy Rail 145x248mm |
| Chainset | Shimano M6120 32t |
| Chain | Shimano M6100 |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Pedals | Resin Platform |
Orbea Alma 2025 Size Chart
|
Size |
Height (cm) |
Height (in) |
|
S |
150 - 170 |
61.1"- 66.9" |
|
M |
165 - 180 |
65.0"- 70.9" |
|
L |
178 - 190 |
70.1"- 74.8" |
|
XL |
185 - 198 |
72.8"- 78.0" |
Orbea Alma 2025 Geometry Chart
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 618.5 | 618.5 | 623.1 | 632.3 |
| Reach | 405 | 435 | 460 | 485 |
| Head Tube Length | 100 | 100 | 105 | 115 |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Bottom Bracket Height | 315 | 315 | 315 | 315 |
| Bottom Bracket Drop | 65 | 65 | 65 | 65 |
| Fork Length | 520 | 520 | 520 | 520 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 |
| Chainstay Length | 425 | 425 | 425 | 425 |
| Wheelbase | 1113 | 1143 | 1170 | 1190 |
| Top Tube Length (horizontal) | 564 | 594 | 620 | 648 |
| Standover Height | 794 | 797 | 811.6 | 829.4 |
| Seat Tube Length | 390 | 410 | 455 | 495 |
| Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
